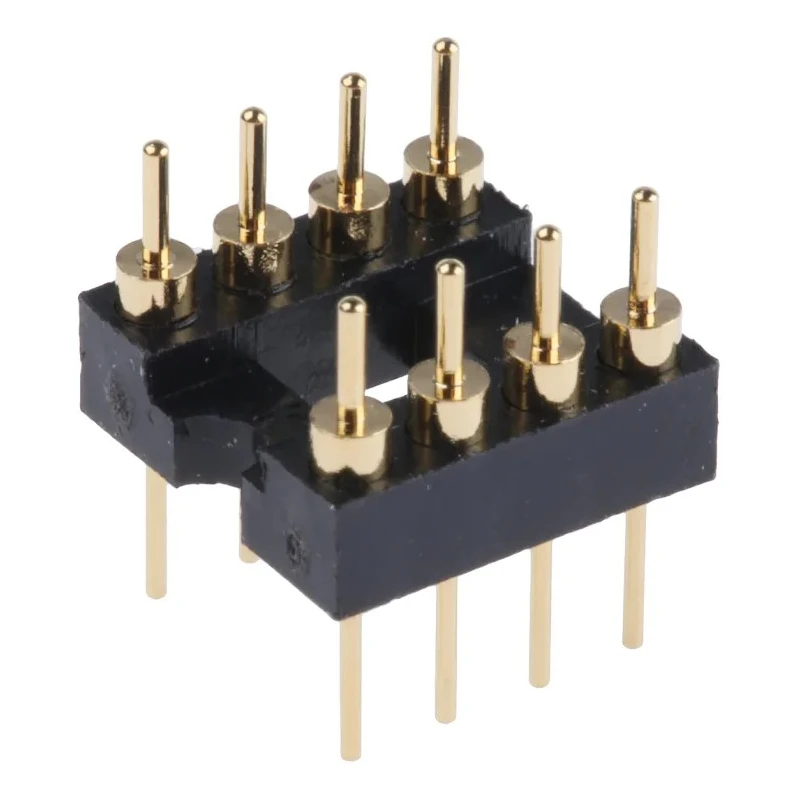

ASSMANN WSW Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter DIP to DIP AR 08-ST/T

ASSMANN WSW AR 08-ST/T is an IC socket adapter designed for through hole mounting with a 2.54 mm pitch, facilitating DIP to DIP connections in electronic assemblies. It is engineered to support currents up to 3 A and voltages up to 100 V AC, making it suitable for various industrial and laboratory electronic applications.

The socket adapter comprises 8 male contacts on both ends, plated with gold over nickel to enhance signal integrity and reduce corrosion. The contacts are made of brass, known for its excellent electrical conductivity and mechanical strength, while the housing uses polybutylene terephthalate to provide robust insulation and thermal stability.

This straight orientation through hole mount adapter simplifies integration into printed circuit boards (PCB) during manufacturing and prototyping phases. Its precision 2.54 mm pitch aligns with standard DIP packages, ensuring easy replacement and compatibility across numerous electronic devices.

Manufactured in China, this adapter meets industrial quality requirements but does not have specific approvals listed. It is ideal for use in electronics manufacturing, repair, prototyping, and test fixtures where reliable IC connections are critical.

Enables reliable DIP to DIP connection for integrated circuits. Features 8 male contacts on both sides with gold over nickel plating for excellent conductivity. Mount type is through hole with a straight orientation for PCB mounting.

Supports current up to 3 A and voltage up to 100 V AC for robust performance. Constructed using brass contact material and polybutylene terephthalate housing for durability. Pin pitch of 2.54 mm ensures compatibility with standard DIP configurations.

Manufactured in China following industrial quality standards.

For engineers, technicians, and manufacturers seeking durable and precise IC socket adapters, the ASSMANN WSW AR 08-ST/T offers dependable performance. Browse more IC Socket Adapters and connectors from ASSMANN WSW and related brands at EnvMart for diverse industrial and electrical applications.
