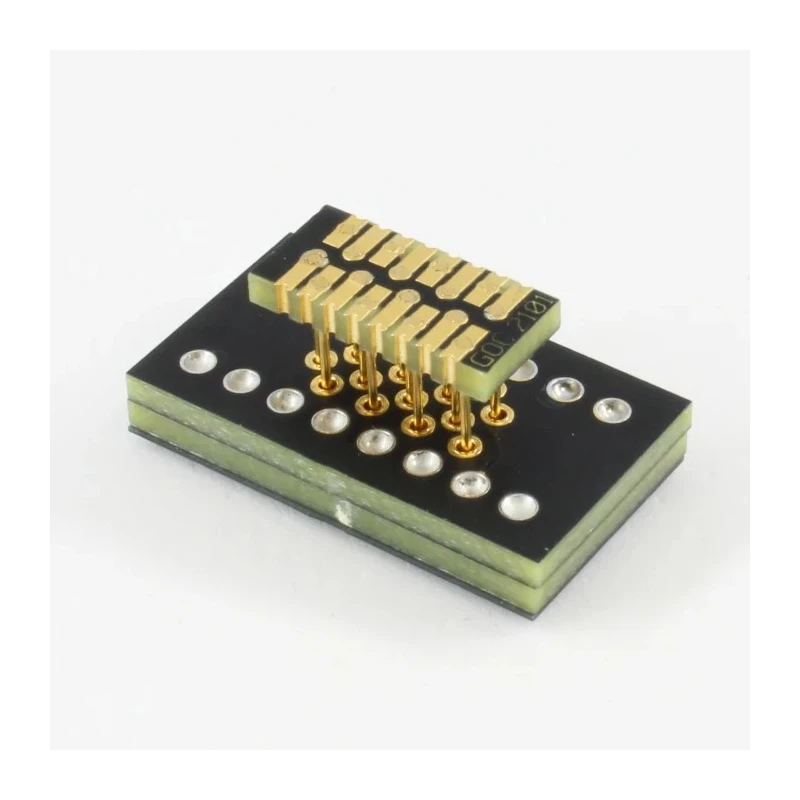

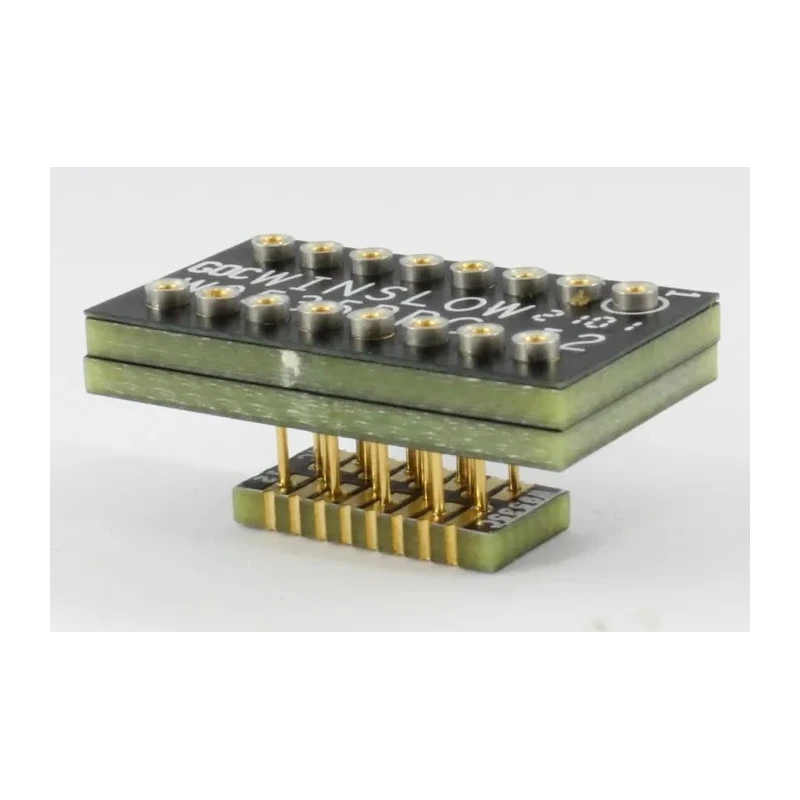

Winslow Straight Surface Mount 15.24 mm Pitch IC Socket Adapter DIP to SOJ/SOP W9547PRC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Winslow |
| Orientation | Straight |
| Model | W9547PRC |
| Mount Type | Surface |
| Housing Material | FR4 |
| Contact Material | Beryllium Copper Alloy |
| Pitch | 15.24mm |
| Contact Plating | Tin over Nickel |
| Connection Gender A | Female |
| Number of Contacts A | 28 |
| Connection Gender B | Male |
| PCB | Epoxy Fibreglass FR4 |
| Connection A | DIP |
| Connection B | SOJ/SOP |
Key Features
- Converts dual in line packages (DIP) to small outline ICs (SOJ/SOP) format.
- Features 28 contacts on each connection side with female and male gender respectively.
- Contact plating is tin over nickel, ensuring reliable connectivity.
- Constructed with beryllium copper alloy contacts and FR4 housing for durability.
- Surface mount type with a straight orientation for easy PCB assembly.
- Includes epoxy fibreglass FR4 PCB for enhanced insulation and strength.
- Two-piece 'Adaptics' design allows detachable top for easy plugging and unplugging.
- Manufactured in the United Kingdom, providing high-quality industrial standards.
Product Description
Winslow W9547PRC IC Socket Adapter is a specialized electronic component designed for converting DIP packages to SOJ/SOP IC formats. It features a straight surface mount with a pitch of 15.24 mm, making it suitable for precision PCB applications in industrial, manufacturing, and electronic prototyping environments.
This adapter provides 28 contacts on both connection sides - female for DIP and male for SOJ/SOP - enhancing compatibility across different IC package types. The contact plating includes tin over nickel, improving conductivity and corrosion resistance. Its contacts use a beryllium copper alloy, ensuring elasticity and durability, while the housing is made from FR4 epoxy fiberglass, delivering robustness and electrical insulation.
The two-piece 'Adaptics' design facilitates a detachable top that connects via socket contacts to the base. This allows straightforward mounting and reusability on surface-mounted PCBs without the need for complex board redesigns. Such flexibility reduces development costs and streamlines prototyping and repair processes.
These IC socket adapters are essential in electronic components, power connectors, and assembly lines where small outline ICs need to be interfaced with existing dual in line packages. Their reliable construction supports industrial, laboratory, manufacturing, and electronic development applications.
Converts DIP to SOJ/SOP IC package with 28 contacts per side. Contact plating is tin over nickel for enhanced electrical performance. Beryllium copper alloy contacts provide long-term elasticity and durability. FR4 epoxy fiberglass housing ensures robust electrical insulation.
Surface mounting type with straight orientation for precise PCB fitment. Two-piece detachable design eases installation and maintenance. Manufactured to UK quality standards ensuring reliability. Explore EnvMart’s range of IC Socket Adapters for high-quality, durable, and precisely engineered electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this IC socket adapter is 15.24 mm.
It features 28 contacts on each connection side, with female contacts for DIP and male contacts for SOJ/SOP.
The contacts are made from beryllium copper alloy, and the housing is constructed from FR4 epoxy fiberglass.
This model supports surface mounting with a straight orientation for easy PCB assembly.
The connection gender for side A is female (DIP) and for side B is male (SOJ/SOP).
The two-piece 'Adaptics' design allows for a detachable top, facilitating easy plugging and unplugging during installation and maintenance.
It is manufactured in the United Kingdom, adhering to high-quality industrial standards.
The contact plating is tin over nickel, which enhances electrical performance and corrosion resistance.
The PCB is made of epoxy fiberglass FR4, providing enhanced insulation and strength.
Key features include 28 contacts per side, tin over nickel contact plating, beryllium copper alloy contacts, and a robust FR4 housing.
