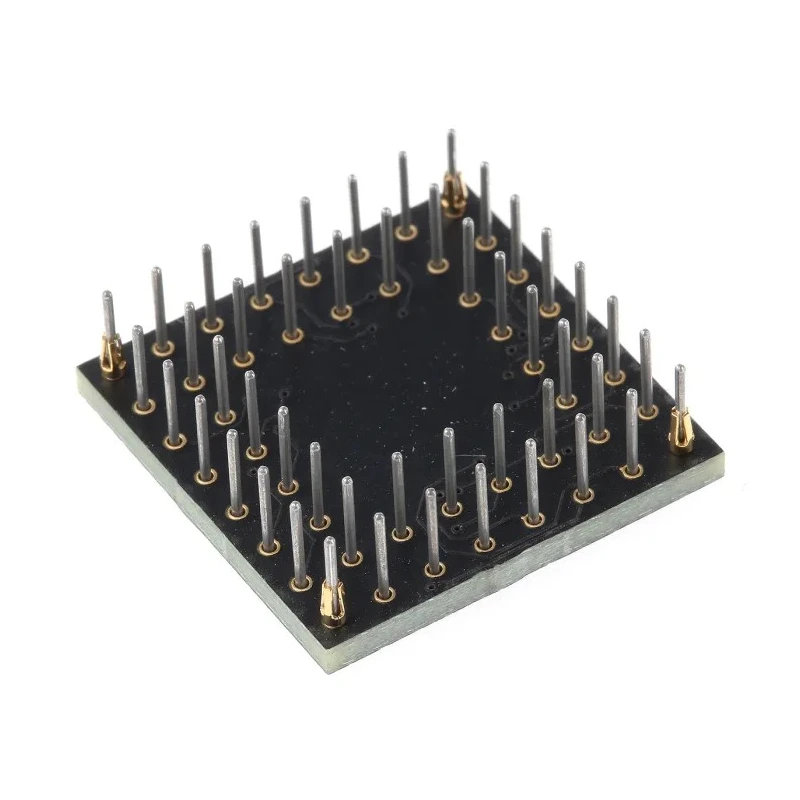

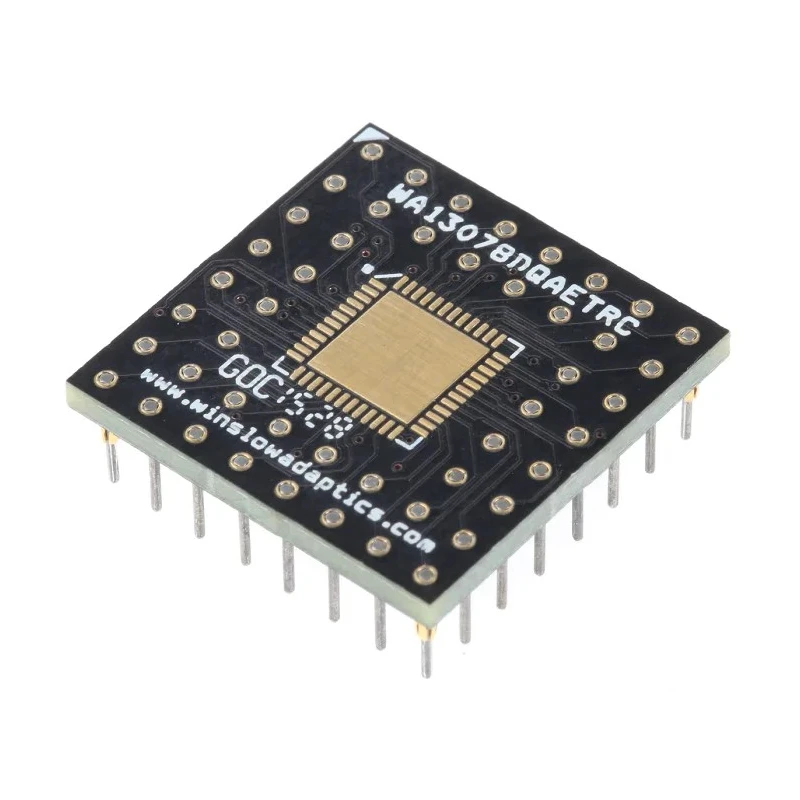

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter QFN to PGA WA13078DQAETRC

Winslow WA13078DQAETRC IC Socket Adapter is a precise electronic component designed for converting Quad-Flat No-Leads (QFN) packages to Pin Grid Array (PGA) format, featuring a straight through hole mount with a 2.54 mm pitch. It enables designers and engineers to connect QFN devices easily to PGA sockets or boards, facilitating prototyping and development without the need for custom PCB redesigns.

The adapter features 48 female contacts on the QFN side matched with 48 male PGA contacts, arranged at the standard 2.54 mm pitch spacing. Its brass contacts ensure excellent electrical conductivity, while the fibreglass housing provides robustness and stability in mounting. The through hole mounting type combined with a straight orientation allows for a durable, reliable physical and electrical connection on printed circuit boards.

This IC socket adapter is part of the 'Adaptics' range, supporting package style conversions that reduce development costs by eliminating the need for multiple PCB layouts when switching between QFN and PGA packages. The design intentionally excludes a central ground pad to accommodate circuit flexibility.

Manufactured in the United Kingdom, this component meets stringent quality requirements for industrial and laboratory electronic applications. It is widely used in electronics prototyping, testing, and manufacturing environments, supporting integration in complex systems and ensuring compatibility with standard IC socket formats.

This adapter features 48 female QFN contacts and 48 male PGA contacts for reliable interfacing. Constructed with brass contacts and fibreglass housing for durability and electrical performance. 2.54 mm pitch standard matches common through hole PCB layouts.

Through hole mounting with straight orientation ensures secure attachment. No central ground pad is present, allowing flexible circuit designs. Enables cost-effective package style conversion between QFN and PGA formats.

Made in the United Kingdom, ensuring high manufacturing standards.

The Winslow WA13078DQAETRC IC Socket Adapter is essential for development engineers, enabling easier prototyping and design iteration by allowing interchangeability of IC package styles. It suits applications in industrial electronics manufacturing, laboratory test bench setups, and general electronics hardware design.
