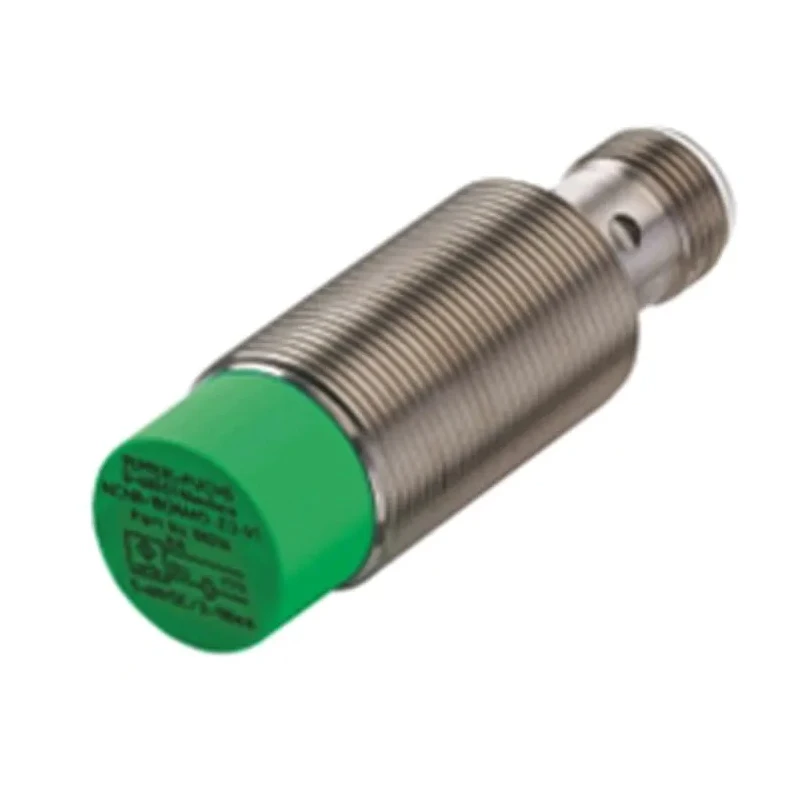

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M18 2-Wire 30V dc 8 mm 60 V dc 100mA NBN8-18GM40-Z0-V1
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 55mm |
| Model | NBN8-18GM40-Z0-V1 |
| Depth | 18mm |
| IP Rating | IP67 |
| Width | 18mm |
| Mount Type | Non-Flush |
| Housing Material | Brass Nickel Plated |
| Output type | 2-Wire |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | 4-Pin M12 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 60V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 450Hz |
| Maximum Supply Voltage | 30V dc |
| Maximum Detection | 8mm |
Key Features
- The sensor is constructed with brass nickel-plated housing for durable industrial use.
- It provides IP67 protection rating ensuring resistance to dust and water ingress.
- Non-flush mount type and unshielded sensing face enable detection of metal objects within 8 mm range.
- Includes LED indication for status monitoring and short circuit and reverse polarity protection.
- Compact dimensions with 55 mm length and 18 mm width, suited for installation in limited spaces.
- Operates reliably in temperatures from -25°C to 70°C, supporting industrial environments.
- The sensor has a maximum switching frequency of 450 Hz for rapid response applications.
- Output type is 2-wire, and terminal connection is via 4-Pin M12 connector or cable prewired variants.
Product Description
Pepperl + Fuchs NBN8-18GM40-Z0-V1 threaded barrel inductive proximity sensor is designed for reliable detection of metal objects in automation and control systems. Featuring an M18 threaded brass nickel-plated body with an unshielded sensing face, this sensor offers durable performance and robustness suitable for harsh industrial environments.
The sensor operates at a supply voltage of 10 to 30V dc with maximum detection distance of 8 mm. Its 2-wire output configuration supports switching currents up to 100 mA and a maximum switching frequency of 450 Hz, making it ideal for fast, precise sensing tasks.
Designed for non-flush mounting, the sensor's IP67 rated enclosure ensures strong resistance to dust and water ingress, which is critical for industrial automation, manufacturing lines, robotics, and material handling applications. Operating temperature range from -25°C to 70°C provides versatile deployment in diverse environmental conditions.
The sensor provides LED status indication and built-in protections including short circuit and reverse polarity protection to enhance operational reliability. Connector options include prewired cables with 2 m PVC cable or plug-in types with M12 type V1 connector for flexible installation.
The sensor supports extended sensing ranges up to 30 mm in other variants; this model supports 8 mm sensing distance. Applications include industrial automation systems, factory floor machinery, conveyor controls, packaging equipment, and process control systems.
Compliant with international standards cULus, EN 60947-5-2:2007, IEC 60947-5-2:2007 ensuring safety and performance certification. This product is manufactured in Indonesia and is new. It is available from specialized distributors for automation and control gear.
Explore the extensive range of Pepperl + Fuchs sensors and Proximity Sensors at EnvMart to find suitable components for your industrial and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this model is 8 mm.
It operates reliably within a temperature range of -25°C to 70°C.
This sensor features a 2-wire output configuration.
The maximum switching frequency is 450 Hz, suitable for rapid response applications.
It has an IP67 rating, ensuring resistance to dust and water ingress.
The housing is made of brass nickel-plated material, providing durability for industrial use.
The sensor has a length of 55 mm and a width and depth of 18 mm.
The terminal connection is via a 4-Pin M12 connector or prewired cable variants.
It is suitable for industrial automation systems, factory floor machinery, and conveyor controls.
Yes, it includes short circuit and reverse polarity protection for enhanced operational reliability.
The maximum supply voltage is 30V DC, with a maximum operating voltage of 60V DC.
This product is manufactured in Indonesia.
