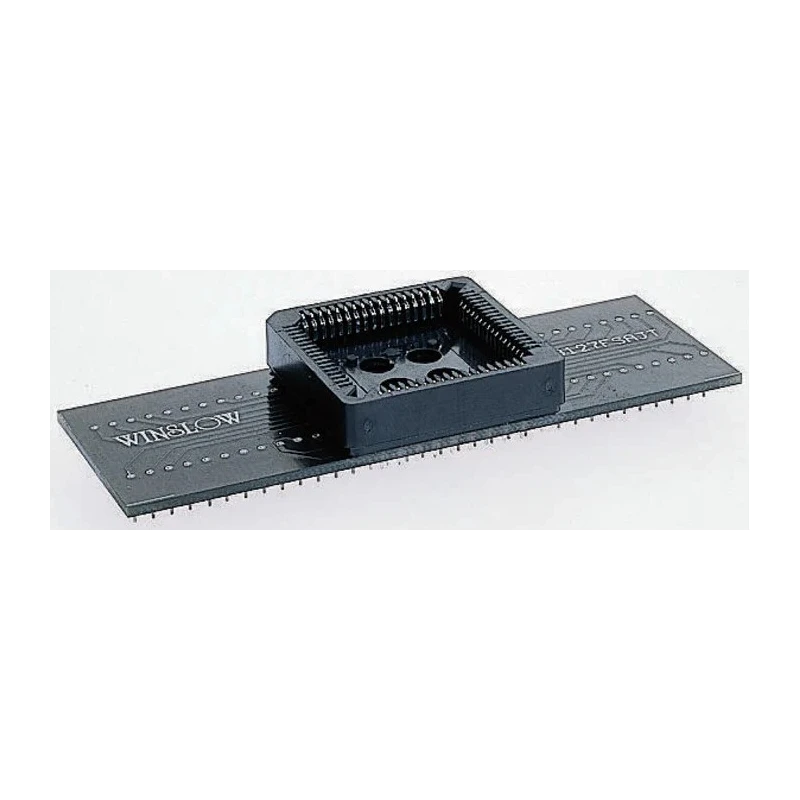

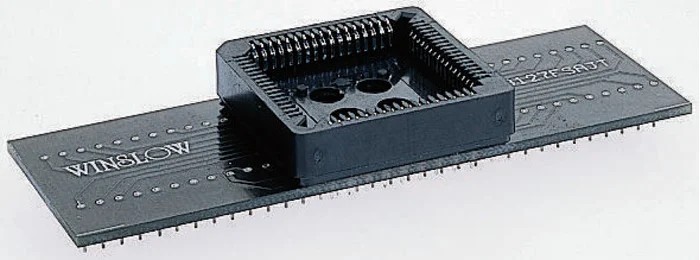

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter PLCC to DIP WA020127FSAJTRC

Free Delivery in India | Lowest Global Shipping Charges

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter PLCC to DIP WA020127FSAJTRC

Name: Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter PLCC to DIP WA020127FSAJTRC
Brand: Winslow
SKU: 112034



Category IC Socket Adapter Brand Winslow Condition New

Specifications

Country of Origin	United Kingdom
Brand	Winslow
Orientation	Straight
Model	WA020127FSAJTRC
Mount Type	Through Hole
Housing Material	FR4
Contact Material	Brass
Pitch	2.54mm
Contact Plating	Tin over Nickel
Connection Gender A	Female
Number of Contacts A	20
Connection Gender B	Male
Connection A	PLCC
Connection B	DIP

Key Features

This IC socket adapter allows PLCC packages to be converted to DIP format.
Features 20 female contacts on the PLCC side and 20 male contacts on the DIP side.
Contact pitch is 2.54 mm (0.1 inches) suited for standard breadboards and PCBs.
Mounting is through hole with a straight orientation for easy PCB insertion.
Contact plating is tin over nickel for reliable conductivity and corrosion resistance.
Contact material is brass for durability and signal integrity.
Housing is FR4, providing excellent insulation and mechanical stability.
Enables board redesign cost savings by adapting package types for development and prototyping.

Product Description

Winslow WA020127FSAJTRC IC Socket Adapter is designed for converting PLCC packages to DIP format, facilitating flexible PCB designs and prototyping within various electronics applications. It features 20 female contacts for PLCC connection and 20 male contacts for DIP insertion, all spaced at a 2.54 mm pitch to match standard dual in-line configurations.

The adapter uses brass contacts plated with tin over nickel to ensure reliable electrical contact and resistance to corrosion, enhancing long-term durability. Its mounting is through hole type with a straight orientation, providing secure fixture to the PCB and straightforward insertion during assembly.

The housing material is FR4, a flame-retardant epoxy laminate offering mechanical strength and excellent insulation properties. This component serves industrial, laboratory, commercial development, and manufacturing environments where converting between IC package styles reduces redesign costs and expedites development cycles.

By using this adapter, engineers can easily test PLCC ICs on DIP footprints, saving time and expense in PCB redesign during prototyping and pilot production. This IC socket adapter allows PLCC packages to be converted to DIP format.

Features 20 female contacts on the PLCC side and 20 male contacts on the DIP side. Contact pitch is 2.54 mm (0.1 inches) suited for standard breadboards and PCBs. Mounting is through hole with a straight orientation for easy PCB insertion.

Contact plating is tin over nickel for reliable conductivity and corrosion resistance. Contact material is brass for durability and signal integrity. Housing is FR4, providing excellent insulation and mechanical stability.

Enables board redesign cost savings by adapting package types for development and prototyping. Manufactured in the United Kingdom with high-quality standards. Explore more IC Socket Adapters at EnvMart to optimize your electronics design and production workflows.
