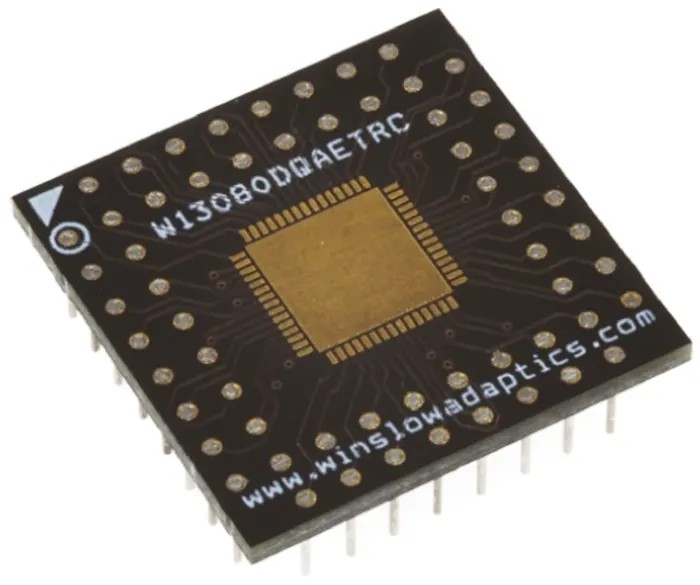

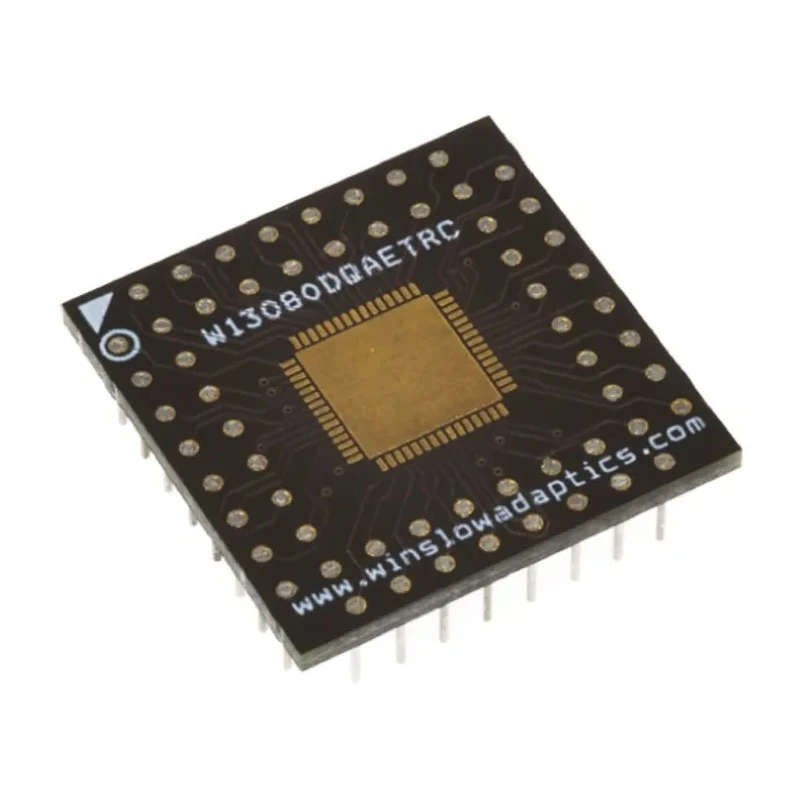

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter QFN to PGA WA13081DQAETRC

Free Delivery in India | Lowest Global Shipping Charges

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter QFN to PGA WA13081DQAETRC

Name: Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter QFN to PGA WA13081DQAETRC
Brand: Winslow
SKU: 104109



Category IC Socket Adapter Brand Winslow Condition New

Specifications

Country of Origin	United Kingdom
Brand	Winslow
Orientation	Straight
Model	WA13081DQAETRC
Mount Type	Through Hole
Housing Material	Fibreglass
Contact Material	Brass
Pitch	2.54mm
Connection Gender A	Female
Number of Contacts A	68
Connection Gender B	Male
Connection A	QFN
Connection B	PGA

Key Features

Supports 68 contacts on both QFN and PGA connections.
Female connection gender for QFN and male connection gender for PGA.
Constructed with brass contacts and fibreglass housing for durability.
Designed for through hole mounting with straight orientation.
Adapter facilitates converting Quad-Flat No-Leads packages to Pin Grid Array configurations.
Manufactured in the United Kingdom, ensuring quality standards.
Ideal for PCB design adaptation and development cost reduction.
No central ground pad included in the adapter design.

Product Description

The Winslow WA13081DQAETRC Straight Through Hole Mount IC Socket Adapter offers high-quality conversion from Quad-Flat No-Leads (QFN) packages to Pin Grid Array (PGA) format with a standardized 2.54 mm pitch. This IC socket adapter features 68 contacts on both the QFN side and the PGA side, enabling reliable and accurate signal connections.

Constructed with robust brass contacts and durable fibreglass housing, this adapter ensures long-lasting mechanical strength and electrical performance. The through hole mount type with a straight orientation is designed for secure PCB installation in electronic assemblies and prototyping environments. The adapter does not include a central ground pad, which users should consider in their circuit designs.

This socket adapter is specifically tailored to facilitate PCB design flexibility by converting QFN packages into PGA, thus reducing development costs by avoiding the necessity to redesign boards for alternative package formats.

Manufactured in the United Kingdom, the WA13081DQAETRC maintains high-quality standards suitable for use in electronics manufacturing, testing, and development laboratories. Supports 68 contacts on both QFN and PGA sides for full compatibility.

Female QFN connection gender and male PGA connection gender for direct package substitution. Brass contact material ensures excellent conductivity and wear resistance. Fibreglass housing provides insulation and structural integrity.

Straight through hole mounting allows easy PCB assembly and removal. Adapter enables efficient package format conversion to optimize board layouts. Ideal for development, prototyping, and testing in electronic design applications.

Manufactured in the United Kingdom to stringent quality controls. Explore a wide variety of IC Socket Adapters and related components for electronic and industrial applications at EnvMart, your trusted source for precision electronic components.
