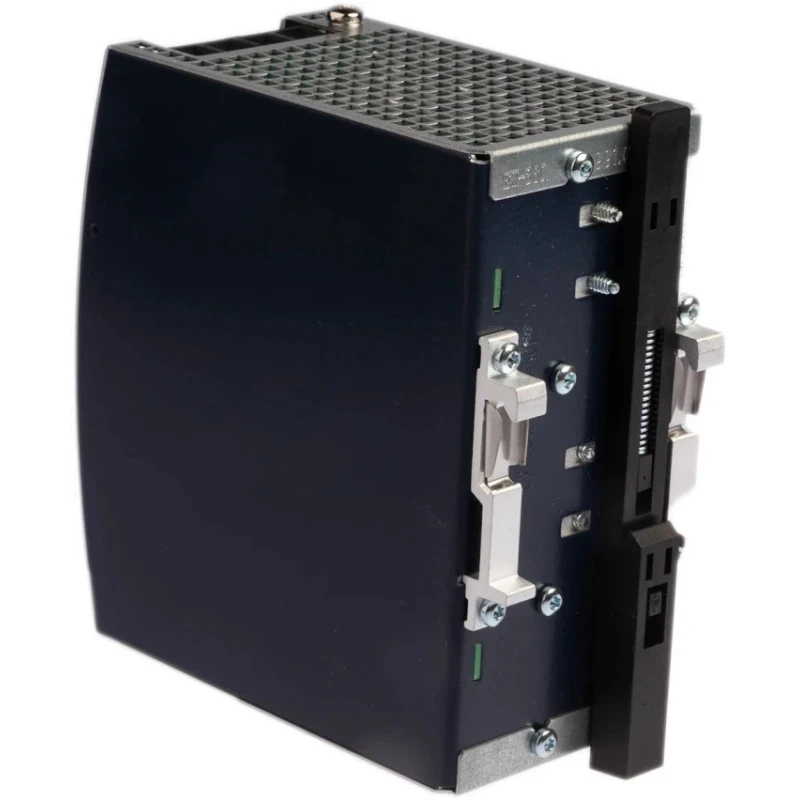

Mean Well DIMENSION Switched Mode DIN Rail Power Supply 1-Phase AC Input 90-264V 28V DC 10A 240W CS10.241
Specifications
| Country of Origin | China |
|---|---|
| Brand | Mean Well |
| Power | 240W |
| Height | 124mm |
| Model | CS10.241 |
| Depth | 117mm |
| IP Rating | IP20 |
| Width | 60mm |
| Series | DIMENSION |
| Output Current | 10A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Slim DIN rail mount design suitable for industrial control cabinets.
- Wide operating temperature from -25°C to 70°C ensuring reliable performance.
- High efficiency power conversion up to 91.6% for energy saving.
- Robust IP20 rated enclosure with protection against solid objects.
- Low ripple noise and minimal electromagnetic emissions for sensitive electronics.
- Auto input voltage selection supports operation between 100VAC and 240VAC.
- Long electrolytic capacitor life expectancy of 50,000 hours under typical conditions.
- High overload peak current for easy fuse breaking and enhanced safety.
Product Description
PULS CS10.241 DIN Rail Power Supply is a high-quality switched mode power supply from the DIMENSION series designed for single-phase AC input applications. It delivers a regulated DC output voltage of 28V at 10A current with a total power rating of 240W, suitable for industrial, automation, and communication control systems.
The device supports a broad input voltage range from 90V AC to 264V AC with automatic voltage selection, allowing smooth operation in diverse power environments. It features a compact and slim form factor sized 124mm (height) x 60mm (width) x 117mm (depth) with an IP20 rated housing, providing protection against solid foreign objects while maintaining efficient ventilation.
This power supply operates reliably within a temperature range of -25°C to 70°C, ensuring durability in harsh industrial conditions. It exhibits a high efficiency up to 91.6%, significantly reducing power losses and heat generation. The electrolytic capacitors inside have a long life expectancy of approximately 50,000 hours, enhancing device longevity and minimizing maintenance.
Additional features include low ripple and noise output (50mVpp), exceptional partial load efficiency, and minimal electromagnetic interference. The product incorporates a large screw terminal design for secure and easy wiring, and an overload protection mechanism with high inrush peak current for safe fuse operation.
This power supply is commonly used in industrial control, automation, communication, and instrumentation equipment, offering dependable power with excellent quality and performance. The product is manufactured in China under strict quality control standards, designed to meet demanding technical requirements of modern electrical systems.
Slim DIN rail mount design suitable for industrial control cabinets. Wide operating temperature from -25°C to 70°C ensuring reliable performance. High efficiency power conversion up to 91.6% for energy saving. Robust IP20 rated enclosure with protection against solid objects.
Low ripple noise and minimal electromagnetic emissions for sensitive electronics. Auto input voltage selection supports operation between 100VAC and 240VAC. Long electrolytic capacitor life expectancy of 50,000 hours under typical conditions.
High overload peak current for easy fuse breaking and enhanced safety. Ideal for automation, communication, and instrumentation equipment. Manufactured in China adhering to industrial quality and reliability standards. Explore the Power Supplies category on EnvMart for more industrial-grade DIN Rail Power Supplies tailored to diverse electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated DC output voltage of 28V with a maximum output current of 10A.
It supports an input voltage range from 90V AC to 264V AC with automatic voltage selection.
The dimensions of this unit are 124mm in height, 60mm in width, and 117mm in depth.
The maximum operating temperature is 70°C, while the minimum is -25°C.
This power supply has a total power rating of 240W.
It has an IP20 rating, providing protection against solid foreign objects.
This model is a switched mode power supply designed for single-phase AC input applications.
It is suitable for industrial control, automation, communication, and instrumentation equipment.
It incorporates a large screw terminal design for secure and easy wiring.
