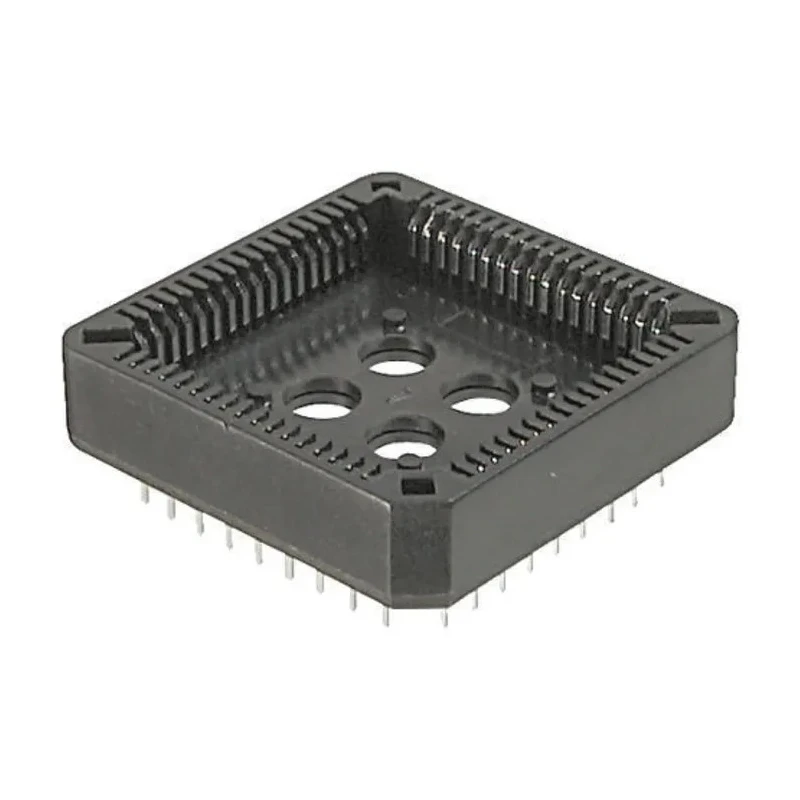

ASSMANN WSW 1.27 mm Pitch 52 Way DIP Through Hole PLCC IC Socket A-CCS 052-Z-T

The ASSMANN WSW A-CCS 052-Z-T is a high-quality PLCC IC socket designed for 52-way through hole DIP configurations with a precise 1.27 mm pitch. It is engineered to provide secure and reliable interconnections for integrated circuits in electronic assemblies.

Featuring durable phosphor bronze contacts plated with tin over nickel, this socket supports a current rating of 1 ampere and a voltage rating up to 100 volts, suitable for various electronic circuit requirements. The housing material, polybutylene terephthalate, is selected for its excellent resistance to thermal and chemical stresses, ensuring longevity and performance in demanding industrial or laboratory environments.

This IC socket has 52 contacts arranged over 4 rows with a standard pitch of 1.27 mm between contacts, making it compatible with a wide range of PLCC chips. The straight contact orientation and through hole mounting type facilitate incorporation into PCBs designed for robust electrical connectivity.

The operating temperature range from -40°C to 105°C allows this socket to function reliably in diverse applications including industrial control systems, telecommunications equipment, and testing devices. Its RoHS compliance confirms adherence to environmental safety standards.

Manufactured in Taiwan, Province Of China, the ASSMANN WSW A-CCS 052-Z-T PLCC IC Socket is ideal for electronic equipment manufacturers seeking consistent quality and performance. Compatible with through hole mounting for reliable PCB assembly.

Constructed with phosphor bronze contacts plated with tin over nickel for durability. Supports a current rating of 1A and voltage rating of 100V. Features 52 contacts arranged in 4 rows with a pitch of 1.27 mm. Housing made from polybutylene terephthalate ensuring high temperature and chemical resistance.

Operating temperature range from -40°C to 105°C for versatile applications. Termination type is solder, ideal for secure electrical connections. RoHS compliant ensuring environmentally safe manufacturing standards. Produced in Taiwan, Province Of China, assuring quality manufacturing origins.

Designed with straight orientation contact for easy integration. Browse the Electronics Components category at EnvMart for more IC Sockets and related products to suit your electronic assembly needs.
