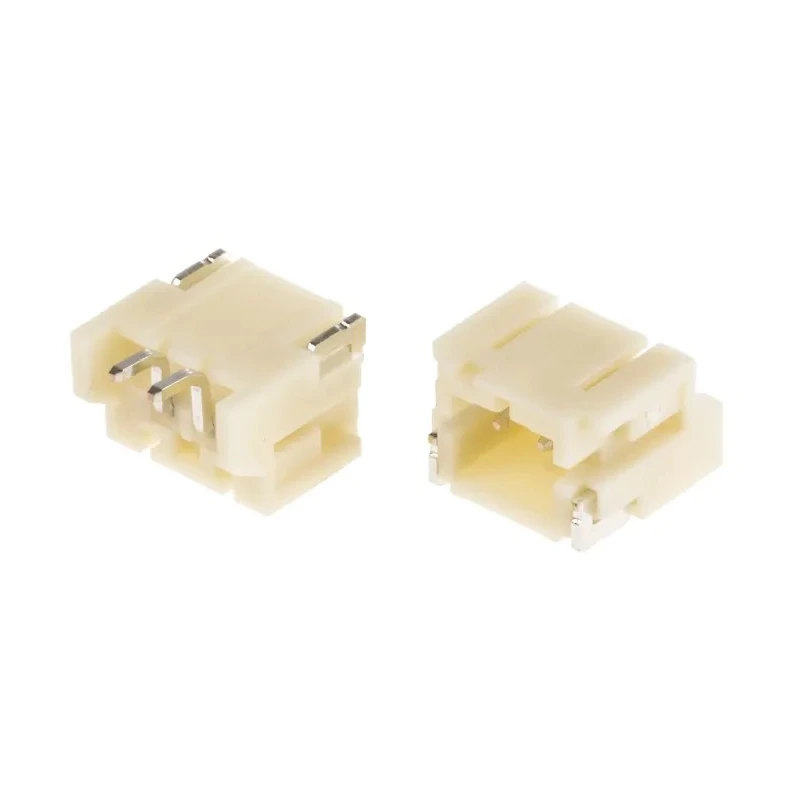

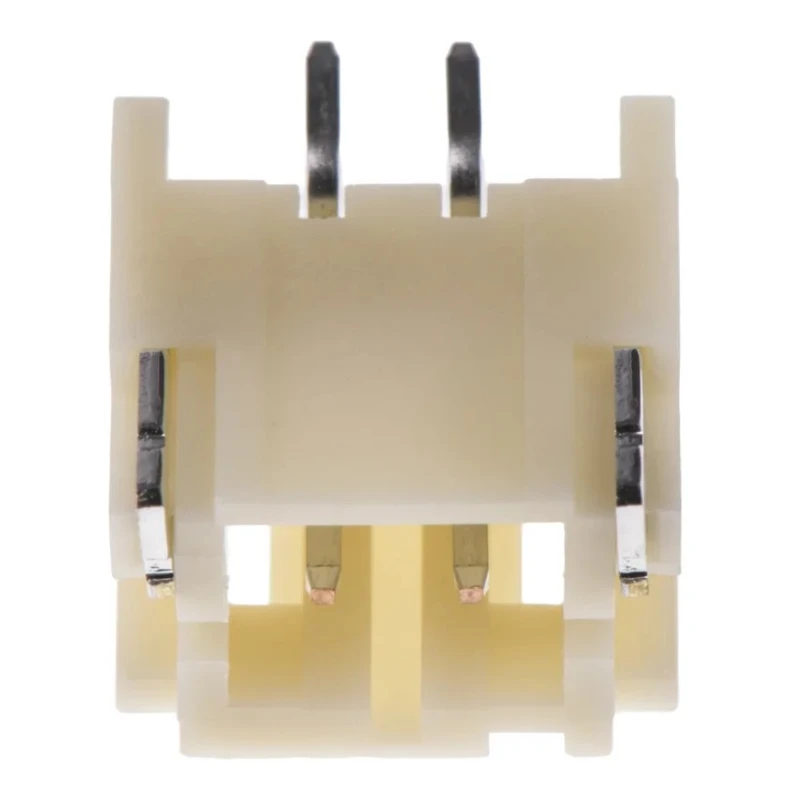

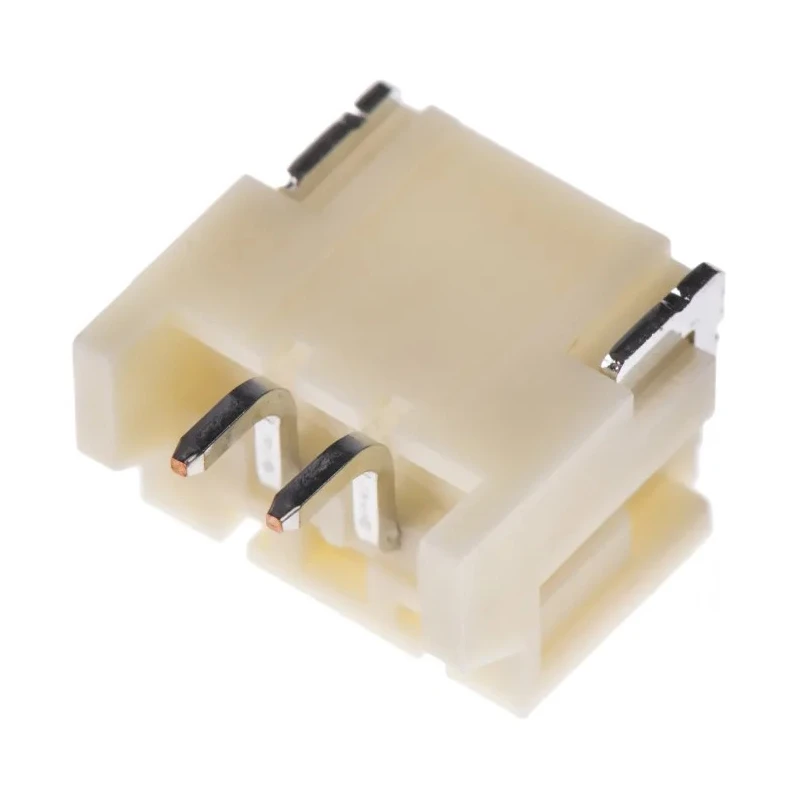

JST PH Series Right Angle Surface PCB Header 2 Contact 2 mm Pitch 1 Row Shrouded S2B-PH-SM4-TB(LF)(SN)

JST S2B-PH-SM4-TB(LF)(SN) PH Series Right Angle Surface PCB Header is a compact, reliable, and cost-effective connector designed for wire-to-board connection in electronic devices. It features 2 contacts in a single row arrangement with a 2 mm pitch ensuring precise positional alignment on printed circuit boards. The right angle orientation and surface mount mounting type allow for space-efficient component placement and easy assembly in dense circuit layouts.

This PCB Header is constructed with copper alloy contacts plated with tin, designed to carry a current of up to 2A and withstand voltages up to 100 V AC. The fully shrouded design protects the contacts, enhancing durability and preventing accidental short circuits. It operates reliably under a wide temperature range from -25°C to 85°C, suitable for various industrial, manufacturing, and electronic assembly applications.

Termination by soldering provides secure electrical and mechanical connection to PCBs. The header supports wire sizes from 32 AWG to 24 AWG, offering flexibility for internal wiring needs. Its robust build and precise design make it ideal for electronics manufacturing, appliance assembly, and embedded systems requiring reliable signal and power connections.

Designed for high density wire-to-board connection with 1 row and right angle orientation. Current rating of 2A and voltage rating of 100 V AC suitable for compact electronic applications. Durable copper alloy contacts with tin plating ensure reliable electrical performance.

Operates within temperature range of -25°C to 85°C providing versatility in various environments. Solder termination type and full shrouded header improve assembly stability and protection. Compatible with wire sizes from 32 AWG to 24 AWG for flexible wiring options.

Manufactured in Malaysia maintaining quality control and consistency.

This connector is widely used in electronics manufacturing, industrial instrumentation, consumer electronics, and various PCB assembly processes. It ensures firm and secure electrical connections in devices requiring compact form factors and reliable performance under different operating conditions.

Explore our range of PCB connectors and headers at EnvMart for high-quality components suitable for industrial and commercial applications.
