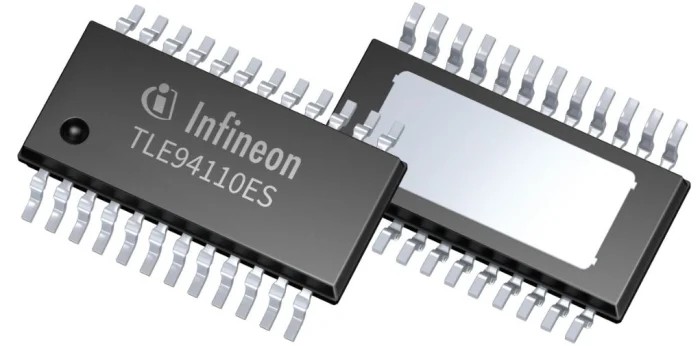

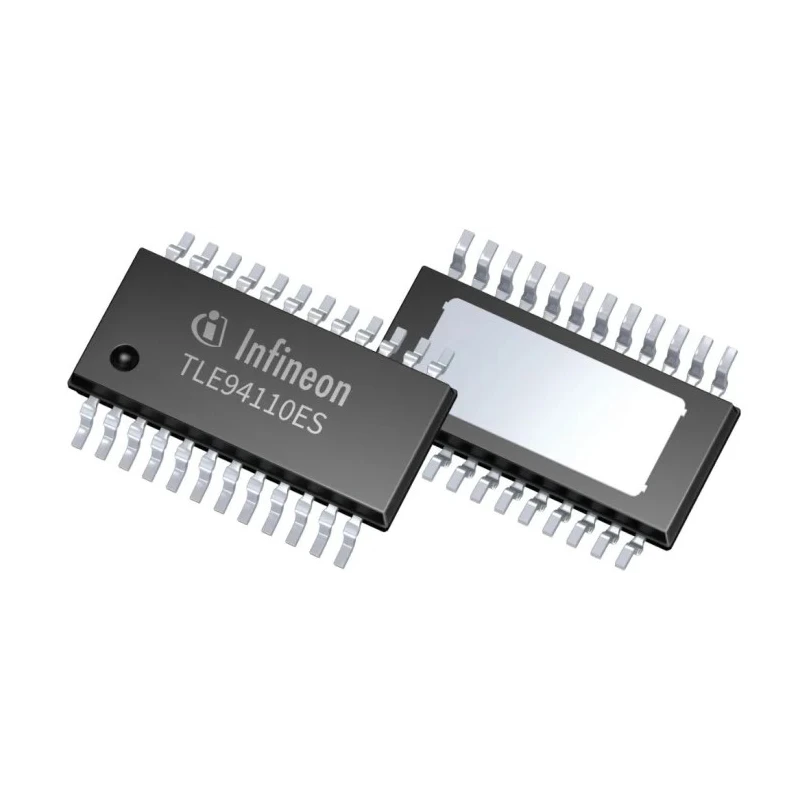

Infineon 2A 40V Dual-Channel Motor Driver IC, 24-Pin PG-TSDSO-24 Surface Mount TLE94110ESXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon 2A 40V Dual-Channel Motor Driver IC, 24-Pin PG-TSDSO-24 Surface Mount TLE94110ESXUMA1

Name: Infineon 2A 40V Dual-Channel Motor Driver IC, 24-Pin PG-TSDSO-24 Surface Mount TLE94110ESXUMA1
Brand: Infineon
SKU: 173381
Price: 2.51 USD
Availability: InStock



Category Motor Driver IC Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.15mm
Length	8.65mm
Model	TLE94110ESXUMA1
Width	3.9mm
Mount Type	Surface
Series	TLE
Output Current	2A
Maximum Operating Temperature	150°C
Package Type	PG-TSDSO-24
Minimum Operating Temperature	-40°C
Number of outputs	10
Rise Time	80ns
Pin Count	24
Minimum Supply Voltage	40V
Number of Drivers	2
Fall Time	80ns

Key Features

Operates from -40°C to 150°C for industrial temperature resilience.
Two independent drivers enable control of dual motors or actuators.
Ten discrete outputs support multi-channel load management.
Fast switching with 80ns rise and fall times reduces power loss and EMI.
Compact packaging (8.65 mm x 3.9 mm x 1.15 mm) for dense board integration.
Surface mount design ideal for automated PCB assembly processes.
Suitable for industrial, robotics, and actuator control applications.
Part of TLE series optimized for motor controls and power semiconductor applications.

Product Description

Infineon TLE94110ESXUMA1 is a high-voltage dual-channel Motor Driver IC designed for industrial-grade electronic systems demanding reliable motor and actuator control. It delivers 2 amps of output current and can operate at supply voltages up to 40 volts, making it ideal for moderately loaded motors requiring robust performance.

The device's surface-mount 24-pin PG-TSDSO-24 package measures 8.65 mm in length, 3.9 mm in width, and 1.15 mm in height, permitting efficient placement on space-constrained PCBs. Its dual independent drivers allow simultaneous control of two motors or actuator channels, while ten discrete outputs facilitate advanced multi-load system partitioning.

Operating across a wide industrial temperature range from -40°C to 150°C, this IC suits harsh and demanding use cases often found in industrial automation, robotics, and compact power assemblies. With fast 80 nanosecond rise and fall times, it minimizes switching losses and electromagnetic interference, enhancing system efficiency and reliability.

Designed exclusively for surface mounting, the TLE94110ESXUMA1 supports automated assembly lines and dense integration needs. It is an essential component in motor control modules, multi-channel actuator interfaces, and robotic drive electronics, offering precise rapid switching and robust power management.

Industry-grade dual channel motor driver integrating 10 outputs for multi-load controls. High voltage tolerance up to 40V and 2A output current capacity. Compact 24-pin PG-TSDSO-24 package for space-efficient PCBs. Wide operating temperature range -40°C to 150°C for thermal reliability.

Fast switching transitions at 80ns rise and fall times for low EMI. Surface mount design compatible with modern manufacturing. Ideal for use in industrial motor controls, robotics, and actuator applications.
