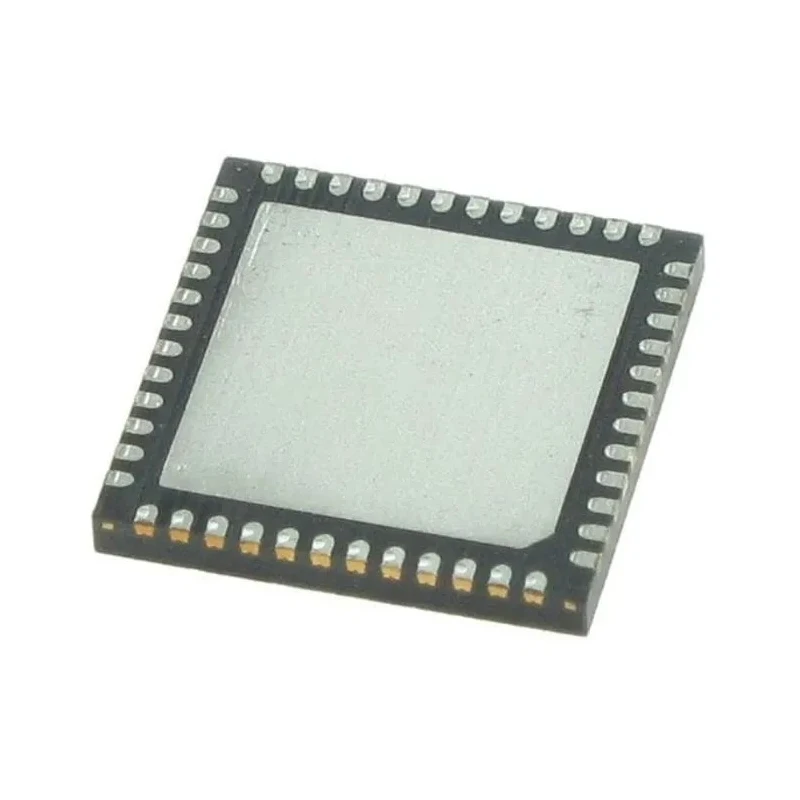

Toshiba Brushed DC Motor Driver VQFN 48-Pin Dual H-Bridge 6A Output TB67H401FTG(O,EL)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Height | 1mm |
| Length | 5.5mm |
| Model | TB67H401FTG(O,EL) |
| Width | 5.5mm |
| Motor Type | Brushed DC Motor |
| Mount Type | Surface |
| Series | TB67H401FTG |
| Configuration | Dual |
| Output Current | 6A |
| Maximum Operating Temperature | 85°C |
| Package Type | VQFN |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 48 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 10V |
| Small package with thermal pad. (QFN48 | 7.0 mm x 7.0 mm) |
Key Features
- Capable of driving two brushed DC motors independently with 3.0A output per channel.
- Single H-bridge mode supports 6.0A high current motor drive.
- Low on-resistance MOSFETs reduce power loss and heat generation.
- Error detection features include thermal shutdown and overcurrent detection.
- Internal 5V regulator simplifies power supply design.
- Adjustable PWM frequency for flexible motor control.
- Compact 7.0 mm × 7.0 mm QFN48 package with efficient thermal pad.
- Wide operating temperature range from -20°C to 85°C.
Product Description
Toshiba TB67H401FTG(O,EL) Brushed DC Motor Driver IC is designed for precise control of brushed DC motors with its dual integrated H-bridge architecture, housed in a compact 48-pin VQFN package measuring 7.0 mm × 7.0 mm.
This IC supports driving two brushed DC motors independently with 3.0A output per channel or a single motor with a high current up to 6.0A using single H-bridge mode. The device is fabricated with Toshiba's advanced BiCD process technology, ensuring robust performance and low conduction losses through low Ron MOSFETs.
Featuring comprehensive error detection including thermal shutdown, overcurrent detection, and power-on-reset, this motor driver IC enhances system safety and reliability. An internal 5V regulator facilitates operation with a single power supply voltage ranging between 5V (max) and 10V (min).
The internal PWM frequency is adjustable through external components, allowing customizable motor speed control suitable for various industrial applications such as robotics, automation, HVAC, and home electronics.
The wide operating temperature range from -20°C to 85°C enables stable operations in challenging environments. Its RoHS compliance ensures adherence to environmental and safety regulations.
This motor driver is ideal for embedded systems requiring efficient motor management with compact packaging and high output current capability. Capable of driving two brushed DC motors independently with 3.0A output per channel.
Single H-bridge mode supports 6.0A high current motor drive. Low on-resistance MOSFETs reduce power loss and heat generation. Error detection features include thermal shutdown and overcurrent detection. Internal 5V regulator simplifies power supply design.
Adjustable PWM frequency for flexible motor control. Compact 7.0 mm × 7.0 mm QFN48 package with efficient thermal pad. Wide temperature range supports reliable operation. RoHS compliant for environmentally friendly applications.
Explore more Motor Driver ICs on EnvMart for industrial automation and electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can drive two brushed DC motors independently with an output of 3.0A per channel, or a single motor with a maximum output of 6.0A in single H-bridge mode.
It is housed in a compact VQFN package measuring 7.0 mm x 7.0 mm with an efficient thermal pad.
The operating temperature range is from -20°C to 85°C, allowing stable operation in various environments.
This driver is designed for brushed DC motors, providing precise control for various applications.
It includes thermal shutdown, overcurrent detection, and power-on-reset for enhanced safety and reliability.
The minimum supply voltage is 10V and the maximum supply voltage is 5V, simplifying power supply design.
The internal PWM frequency is adjustable through external components, allowing for customizable motor speed control.
The height of the TB67H401FTG(O,EL) is 1mm, contributing to its compact design.
This model requires surface mounting, suitable for efficient integration into various systems.
Yes, the TB67H401FTG(O,EL) is RoHS compliant, ensuring adherence to environmental and safety regulations.
This motor driver features a pin count of 48, providing necessary connections for operation.
It is suitable for various industrial applications such as robotics, automation, HVAC, and home electronics.
