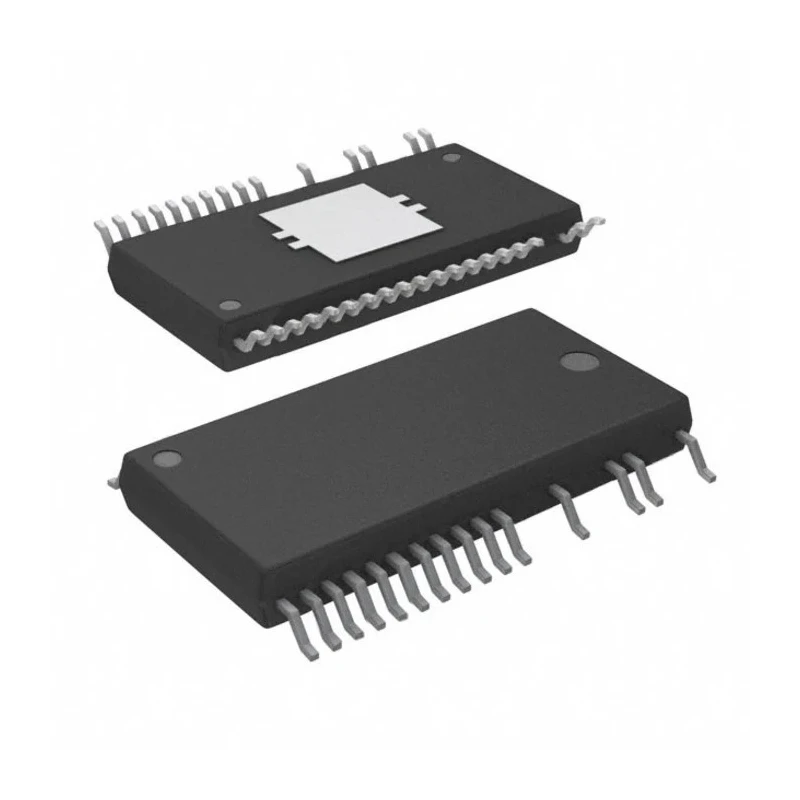

Toshiba Brushless Motor Driver IC 10 mA 2A Output 3 Phase 34-Pin HSSOP TB67B000AFG(O,EL)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Height | 2.2mm |
| Length | 17.5mm |
| Model | TB67B000AFG(O,EL) |
| Width | 11.93mm |
| Motor Type | Brushless |
| Mount Type | Surface |
| Series | TB67B000AFG |
| Configuration | 3 Phase |
| Output Current | 2A |
| Maximum Operating Temperature | 115°C |
| Package Type | HSSOP |
| Minimum Operating Temperature | -30°C |
| Standards/Approvals | RoHS |
| Pin Count | 34 |
| Maximum Supply Voltage | 16.5V |
| Minimum Supply Voltage | 13.5V |
| Maximum IGBT Collector Current | 10mA |
| Bootstrap circuitry | Built-in bootstrap diode |
Key Features
- Supports sine-wave PWM and wide-angle commutation drive modes.
- Integrated high-voltage driver with maximum IGBT collector current of 10 mA.
- Compact 34-pin HSSOP surface mount package.
- Operating supply voltage range of 13.5 to 16.5 V and motor supply voltage up to 450 V.
- Built-in protections including overcurrent, thermal shutdown, undervoltage lockout, and motor-lock detection.
- Includes oscillator circuit and bootstrap diode for stable switching.
- Internal 5 V voltage regulator output with 30-35 mA current capacity.
- Operates reliably over a temperature range from -30°C to 115°C.
Product Description
The Toshiba TB67B000AFG(O,EL) is a high-voltage brushless DC motor driver IC integrating a controller supporting sine-wave PWM drive and wide-angle commutation with a three-phase 10 mA IGBT collector current driver in a single 34-pin HSSOP package. Designed to allow precise speed control of brushless DC motors using analog signals from microcontrollers, this device is ideal for sophisticated motor control in industrial and electronic component applications.
It offers selectable drive modes optimized for smooth and efficient motor operation with integrated protection circuits such as overcurrent protection, thermal shutdown, undervoltage lockout, and motor-lock detection ensuring robustness under demanding conditions. The internal oscillator and bootstrap circuitry facilitate stable switching operations, while the internal voltage regulator provides a 5 V output capable of supplying up to 35 mA for auxiliary circuits.
The device supports a wide operating supply voltage range (VCC: 13.5-16.5 V; motor supply VBB: 50-450 V), making it adaptable to various system requirements. The compact surface-mount HSSOP package of size 17.5 mm length by 11.93 mm width and 2.2 mm height allows for efficient PCB layout.
Operating across a wide temperature range (-30°C to 115°C), it meets RoHS compliance for environmental standards. This motor driver IC is widely applicable in industrial machinery, power management systems, automotive electronic controls without automotive standard certification, and other advanced electronic systems requiring precise brushless motor control.
Supports sine-wave PWM and wide-angle commutation drive modes. Maximum IGBT collector current: 10 mA. Surface mount 34-pin HSSOP package with compact dimensions. Wide operating voltage ranges for power and motor supplies.
Built-in protections for current, temperature, undervoltage, and motor lock. Internal oscillator and bootstrap diode for reliable switching. Internal 5 V voltage regulator with output current capacity. Robust performance across -30°C to 115°C operation range.
This Toshiba brushless motor driver IC is a suitable choice for industrial automation, electronic component manufacturers, laboratory devices, HVAC controls, and other technical applications requiring efficient and reliable brushless motor control. Explore further components in the Motor Driver IC category at EnvMart for complementary electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Toshiba TB67B000AFG(O,EL) motor driver IC has a maximum output current capability of 2A.
It operates within a supply voltage range of 13.5 to 16.5 V.
This model operates reliably over a temperature range from -30°C to 115°C.
It is designed to drive brushless DC motors.
The dimensions of the surface mount HSSOP package are 17.5 mm in length, 11.93 mm in width, and 2.2 mm in height.
Yes, it includes built-in protections such as overcurrent protection, thermal shutdown, undervoltage lockout, and motor-lock detection.
The maximum supply voltage for the motor is up to 450 V.
It supports sine-wave PWM and wide-angle commutation drive modes.
The Toshiba TB67B000AFG(O,EL) features a pin count of 34.
Yes, it has an internal 5 V voltage regulator output with a current capacity of 30-35 mA.
This model uses surface mounting.
The country of origin for the Toshiba TB67B000AFG(O,EL) is India.
