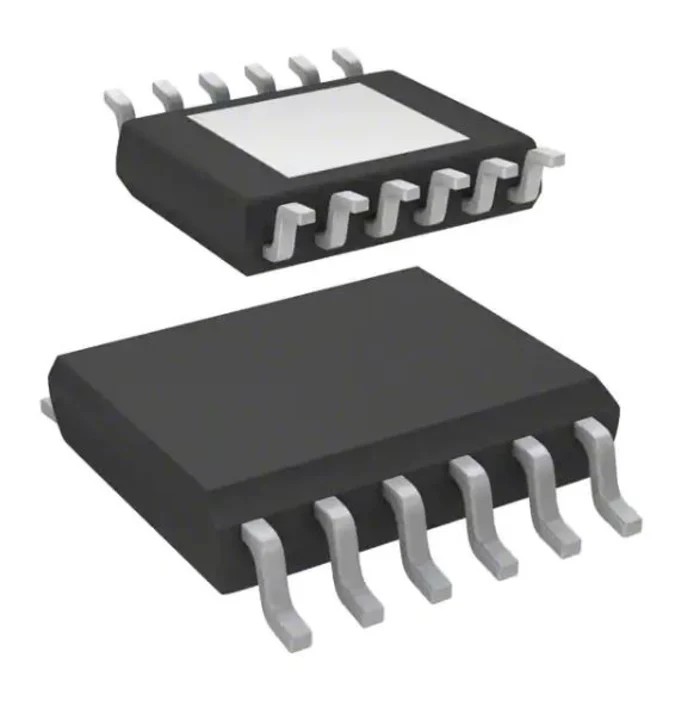

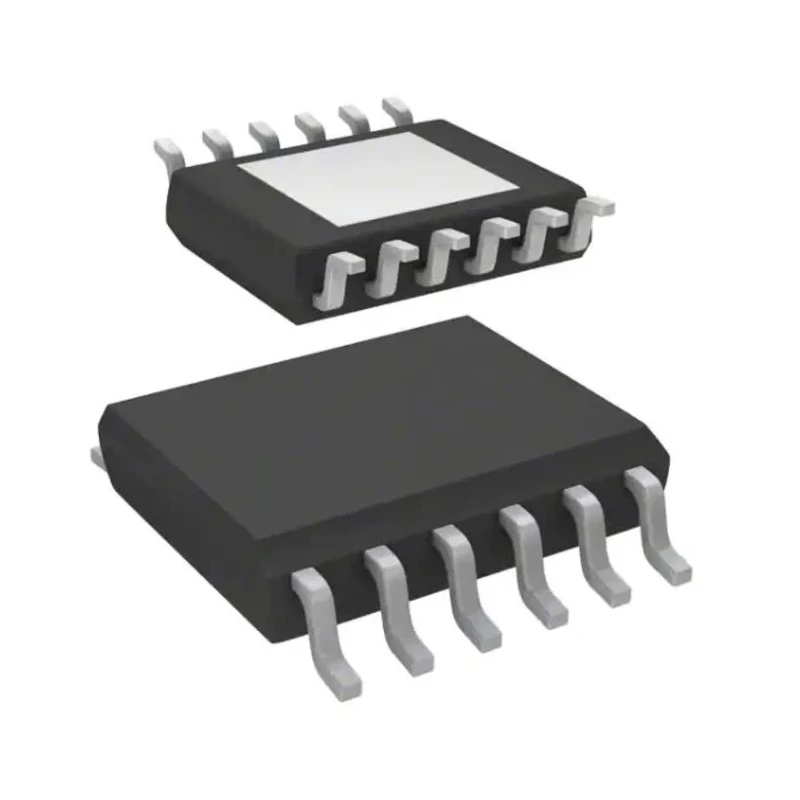

STMicroelectronics Motor Driver IC 12 A Output Current 12-Pin PowerSSO-12 Package VND5050JTR-E

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Motor Driver IC 12 A Output Current 12-Pin PowerSSO-12 Package VND5050JTR-E

Name: STMicroelectronics Motor Driver IC 12 A Output Current 12-Pin PowerSSO-12 Package VND5050JTR-E
Brand: STMicroelectronics
SKU: 176829
Price: 7.66 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	VND5050JTR-E
Series	VND50
Output Current	12A
Maximum Operating Temperature	150°C
Package Type	PowerSSO-12
Minimum Operating Temperature	-40°C
Pin Count	12
Automotive Standard	AEC-Q100
Minimum Supply Voltage	41V
Driver Type	Motor

Key Features

Delivers output current of 12 A suitable for driving resistive or inductive loads.
Equipped with 12 pins in a PowerSSO-12 package format for easy PCB integration.
Operates with a supply voltage range of up to 41 V ensuring robust performance.
Features protections including thermal shutdown, undervoltage shutdown, and current limitation at 18 A.
Optimized for low electromagnetic emission and very low standby current of 2 μA.
CMOS compatible inputs at 3.0 V provide versatile control options.
Supports automotive AEC-Q100 standard ensuring quality and reliability under harsh conditions.
Operating temperature ranges from -40°C to 150°C for wide environmental tolerance.

Product Description

STMicroelectronics VND5050JTR-E Motor Driver IC is a robust PowerSSO-12 package device designed to drive resistive and inductive loads with one side grounded. This double channel high-side driver is fabricated using STMicroelectronics VI Power M0-5 technology with automotive grade quality, conforming to AEC-Q100 standards, making it ideal for automotive and industrial control applications.

The driver can handle continuous output currents up to 12 A with maximum supply voltage of 41 V, operating effectively within an input voltage range of 4.5 V to 36 V. It integrates multiple protection features such as thermal shutdown indicator, undervoltage shutdown, off-state supply current as low as 2 μA, and current limitation set typically at 18 A, ensuring resilient and safe operation in demanding electrical environments.

Additional capabilities include optimized electromagnetic emission control, on/off-state open load detection allowing diagnostic checks, and self-limiting fast thermal transient management to prevent damage from rapid temperature rises. The input pins are compatible with 3.0 V CMOS logic for flexible interface designs.

This motor driver IC operates reliably over harsh temperature ranges from -40°C to 150°C, making it suitable for automotive electrical systems, embedded systems, robotics, industrial machinery, and other commercial electronic components requiring high power motor control. The compact PowerSSO-12 packaging supports space-constrained PCB layouts and efficient thermal management.

High output current of 12 A per channel for driving diverse loads. Advanced protection and diagnostic features improve system safety. Wide operating voltage and temperature range suitable for automotive applications. Low standby consumption preserves power efficiency in idle states.

Compliance with automotive AEC-Q100 standard ensures durability.

This STMicroelectronics VND5050JTR-E Motor Driver IC is ideal for engineers and designers seeking a reliable, high-performance component for motor controlling circuits in industrial, automotive, and commercial electronic projects. Explore EnvMart’s extensive range of motor drivers to find complementary electronic components and accessories.
