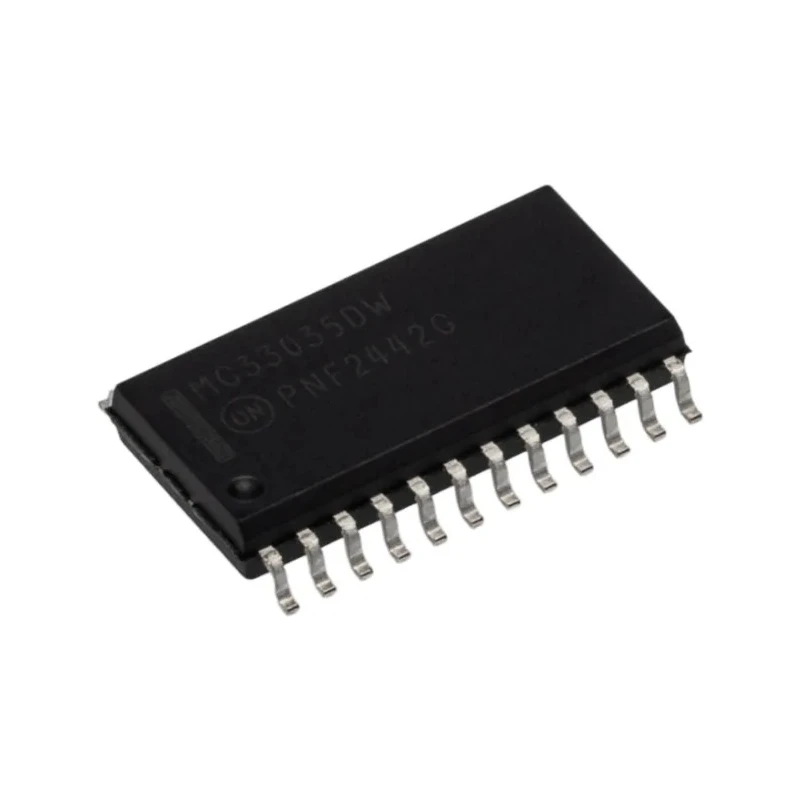

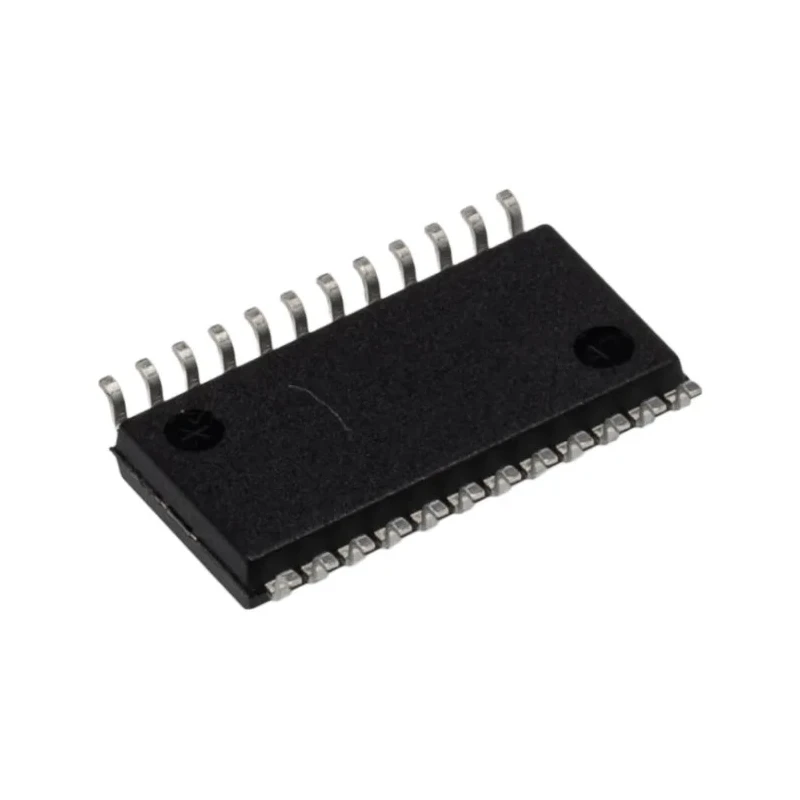

onsemi Brushless DC Motor Controller 40V, 24-Pin Surface Mount SOIC, MC33035DWG

The onsemi MC33035DWG Brushless DC Motor Controller is a specialized integrated circuit designed for precise, efficient operation of brushless DC (BLDC) motors in industrial and commercial automation systems. With a compact 24-pin SOIC package, this controller is ideally suited for surface mount applications where space and reliability are critical.

Capable of handling up to three-phase BLDC motor configurations, the MC33035DWG provides advanced commutation sequencing and rotor position decoding, allowing for smooth and adaptable speed control. Operating across a supply voltage range of 10V to 30V, the device ensures compatibility with a variety of industrial power environments. Its maximum collector emitter voltage of 40V supports high-current motor applications without compromising safety.

Protective features are built in, including undervoltage lockout, cycle-by-cycle current limiting, selectable time-delayed latched shutdown mode, and internal thermal shutdown. These functions greatly enhance long-term operational reliability and prevent damage due to voltage fluctuations or thermal overload.

A frequency-programmable sawtooth oscillator, three open collector top drivers, and three high-current totem pole bottom drivers allow flexible configuration when driving external MOSFETs, expanding application possibilities in manufacturing, robotics, conveyor systems, and HVAC equipment. The device's typical switching frequency of 28kHz enables smooth motor operation while minimizing electromagnetic noise.

Automotive environments benefit from AEC-Q100 compliance, supporting use in electric vehicle motors, power steering, and high-reliability automotive assemblies. The controller also supplies sensor power with a 6.25V reference, enhancing integration with external feedback devices.

Installation is straightforward thanks to the surface mount SOIC footprint, and the controller's physical dimensions (15.54mm length, 7.6mm width, 2.36mm height) allow for compact PCB layouts without sacrificing performance. Applications include industrial machinery, laboratory automation, robotics, HVAC controls, and more where advanced motor precision and protection are critical.
