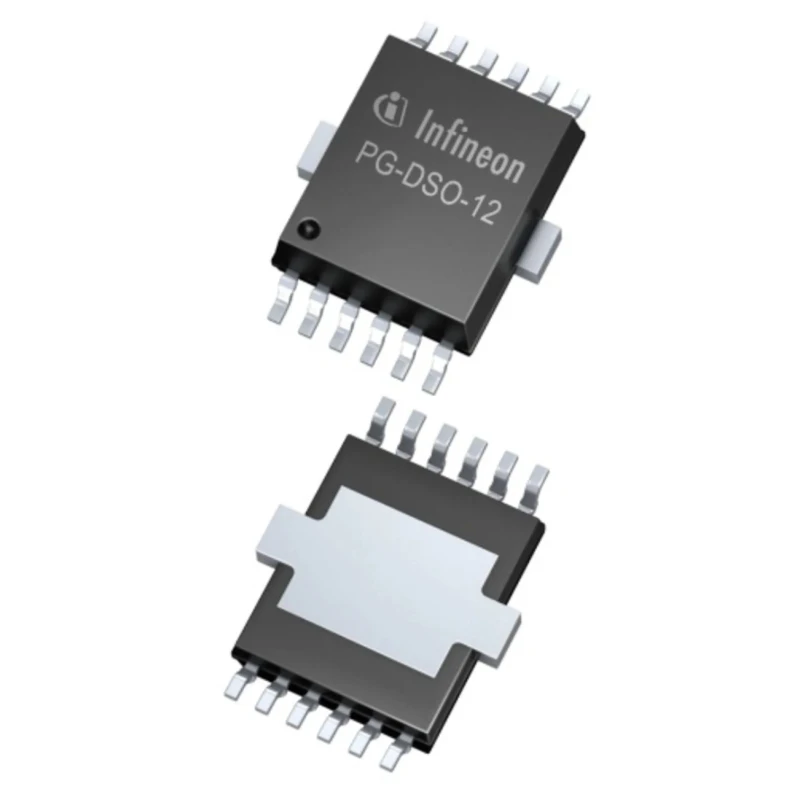

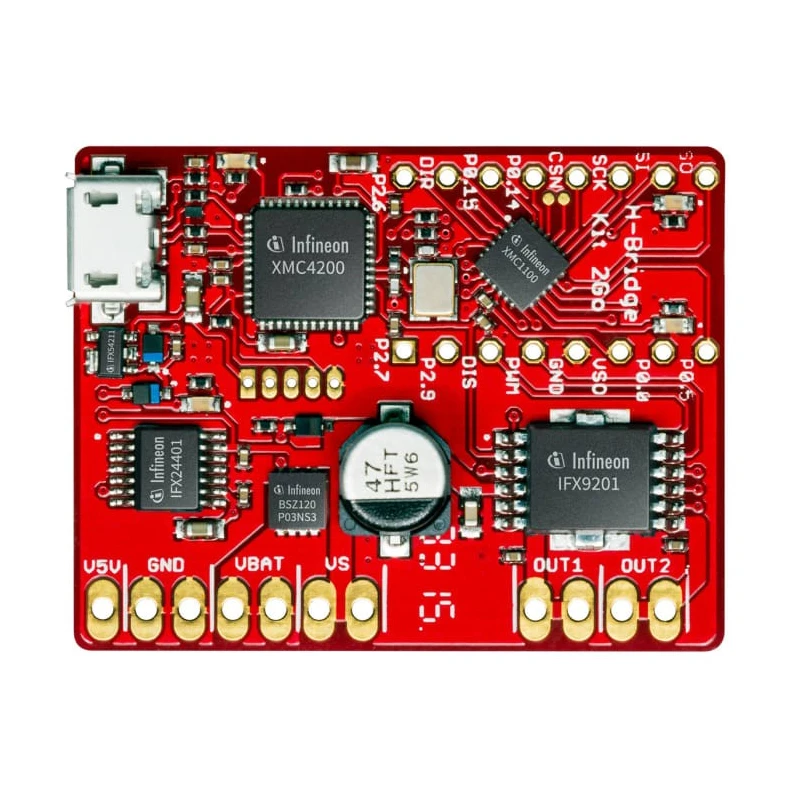

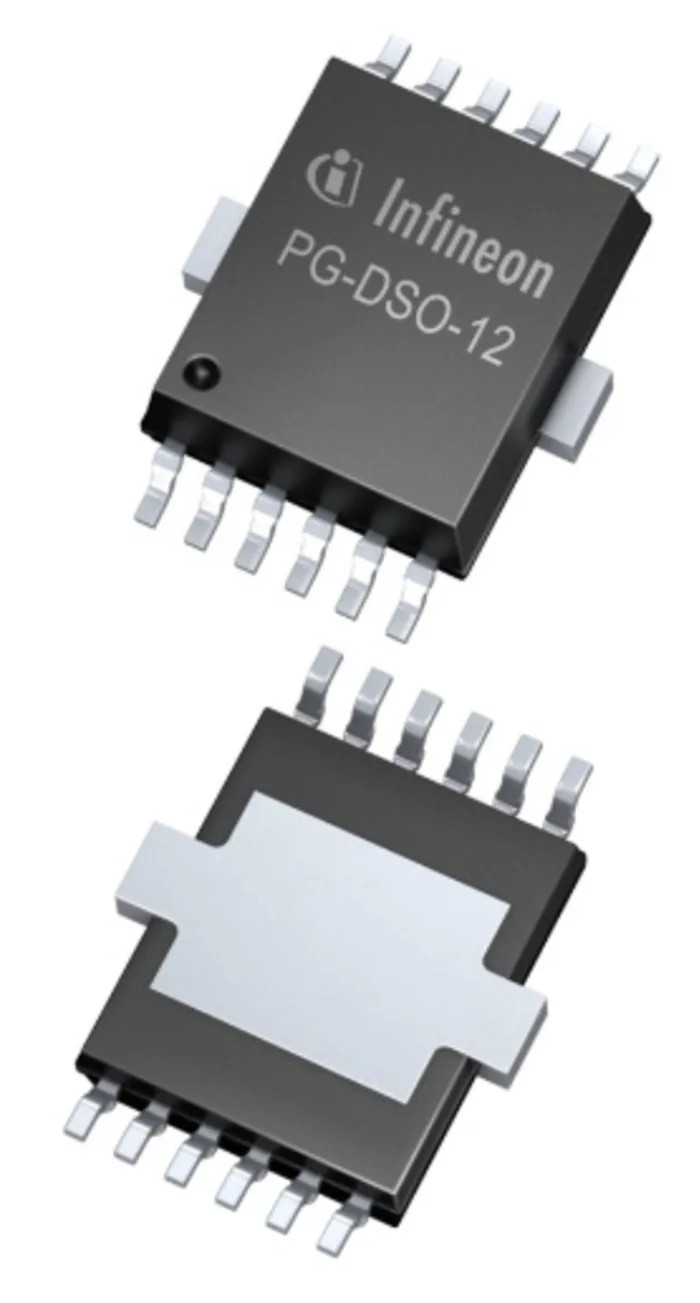

Infineon IFX9201SGAUMA1 DC Motor Driver IC, H-Bridge, 12-Pin DSO, Output Current 10A, 5V - 36V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.35mm |
| Length | 7.5mm |
| Model | IFX9201SGAUMA1 |
| Width | 6.4mm |
| Motor Type | DC Motor |
| Mount Type | Surface |
| Series | IFX9201SG |
| Configuration | H Bridge |
| Output Current | 10A |
| Maximum Operating Temperature | 125°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 12 |
| Automotive Standard | AEC-Q101 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 5V |
| Supply Current | 5mA |
| Typical Switching Frequency | 20kHz |
| OT | Overtemperatur-Protection |
| UV | Undervoltage protection |
| OV | Overvoltage protection |
Key Features
- Supports output current up to 10A for reliable motor control.
- Operates with supply voltage from 5V to 36V, suitable for a wide range of designs.
- Integrates overtemperature, undervoltage, and overvoltage protection for enhanced safety.
- Features pulse width modulation capability up to 20kHz for silent operation.
- Compliant with AEC-Q101 automotive standard for high reliability requirements.
- Surface mount DSO package ensures ease of assembly and compact PCB layouts.
- Suitable for industrial, automation, building management, power tool, and home appliance applications.
Product Description
The Infineon IFX9201SGAUMA1 is a high-performance DC motor driver IC presented in a compact 12-pin DSO package. Designed for precise control of small DC motors and inductive loads, this device is engineered to meet the demanding requirements in industrial automation, robotics, building automation, home appliances, power tool battery management, and even select medical applications.
At its core, the IFX9201SGAUMA1 utilizes a robust H-Bridge architecture, enabling bidirectional control of DC motors with integrated protection features such as overtemperature (OT), undervoltage (UV), and overvoltage (OV) safeguards. The device supports output currents up to 10A and operates across a wide supply voltage range of 5V to 36V, ensuring adaptability for modern embedded motor drive systems.
PWM/DIR control allows for seamless integration into systems requiring speed and direction control, with pulse width modulation support at up to 20kHz for silent, efficient motor control operation - above the threshold of human auditory perception. For currents exceeding the internal threshold, the H-Bridge enters chopper-limitation mode, safeguarding connected loads.
This IC conforms to AEC-Q101 automotive qualification, enhancing its reliability for use in automotive and industrial environments. Its surface-mount DSO package is compact (7.5mm x 6.4mm x 2.35mm) and enables efficient use of PCB space in high-density layouts. The pin count of 12, together with low typical supply current (5mA), makes it suitable for efficient power management designs where space and energy are both at a premium.
Applications include precision motor control in programmable logic controllers, process actuators, battery-powered tools, home automation modules, and safety-critical or temperature-variable deployments. The integrated protections and robust design ensure long-term operational reliability under harsh conditions.
Explore more motor driver solutions and Infineon electronic components in the Motor Driver ICs section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an output current of up to 10A, allowing for reliable motor control.
It operates with a supply voltage ranging from 5V to 36V, making it suitable for a wide variety of designs.
This unit integrates overtemperature, undervoltage, and overvoltage protection for enhanced safety during operation.
The typical switching frequency is 20kHz, which supports silent operation for motor control.
It comes in a surface mount DSO package with dimensions of 7.5mm x 6.4mm x 2.35mm.
It complies with the AEC-Q101 automotive standard, ensuring high reliability for automotive applications.
This model is designed for precise control of small DC motors and inductive loads.
The minimum operating temperature is -40°C and the maximum is 125°C, allowing it to function in various environments.
It has a low typical supply current of 5mA, making it efficient for power management designs.
It utilizes a surface mount type, facilitating ease of assembly and compact PCB layouts.
It is suitable for applications in industrial automation, robotics, building automation, home appliances, and power tool battery management.
The configuration type is H-Bridge, allowing for bidirectional control of DC motors.
