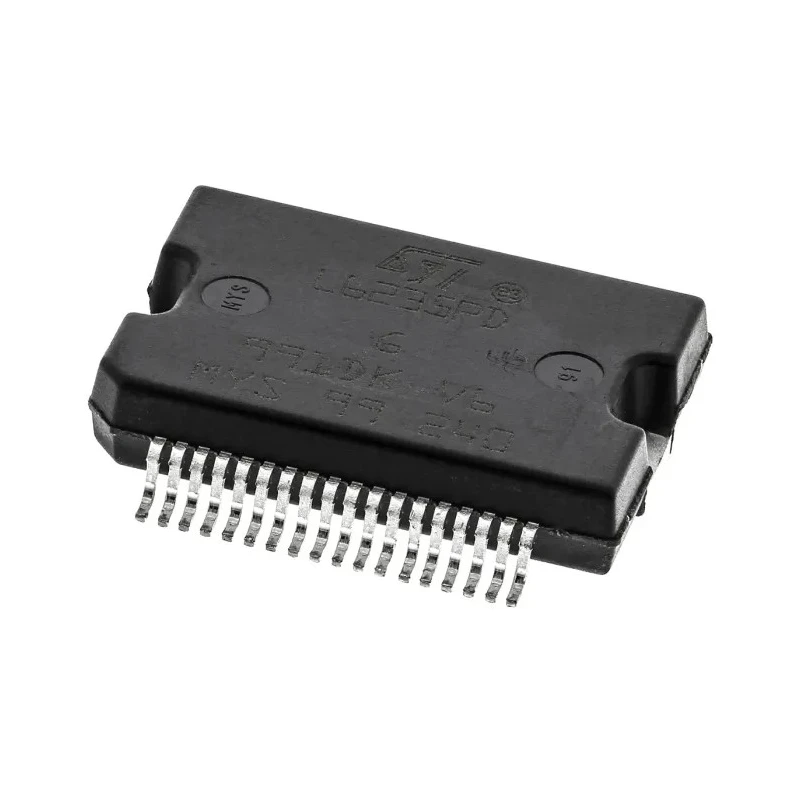

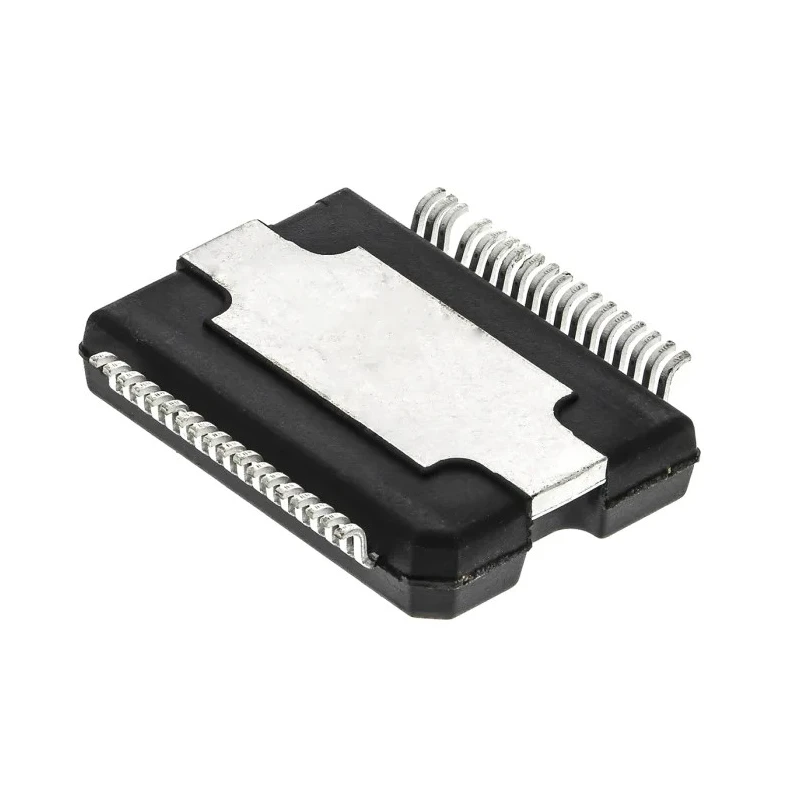

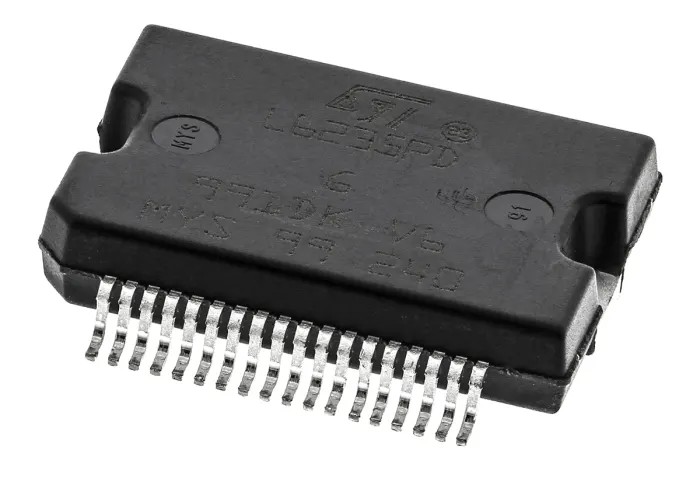

STMicroelectronics Brushless DC Motor Driver IC, 52V 2.8A 3 Phase 36-Pin PowerSO Package L6235PD
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.3mm |
| Length | 16mm |
| Model | L6235PD |
| Width | 11.1mm |
| Motor Type | Brushless DC Motor |
| Mount Type | Surface |
| Series | L6235 |
| Configuration | 3 Phase |
| Output Current | 5.6A |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerSO |
| Minimum Operating Temperature | -40°C |
| Pin Count | 36 |
| Maximum Collector Emitter Voltage Vceo | 52V |
| Maximum Supply Voltage | 52V |
| Minimum Supply Voltage | 12V |
| Supply Current | 2.8A |
| Maximum IGBT Collector Current | 2.8A |
| Typical Switching Frequency | 100kHz |
Key Features
- Supports 3 phase brushless DC motor configurations.
- Maximum collector emitter voltage is 52 volts.
- Maximum output current capacity of 5.6 amperes.
- Equipped with 36 pins in a PowerSO package suitable for surface mount.
- Operates within a temperature range of -40°C to 150°C.
- Typical switching frequency is 100 kHz ensuring efficient motor control.
- Operating voltage range from 12V minimum to 52V maximum supply voltage.
- Includes built-in protections against over-temperature, overcurrent, and under-voltage conditions.
Product Description
STMicroelectronics L6235PD is a robust Brushless DC Motor Driver IC designed for wide industrial use. It supports 3 phase brushless DC motor configurations with a maximum collector emitter voltage of 52 volts and collects current up to 2.8A for IGBTs and can handle up to 5.6A output current. This motor driver IC operates efficiently at a typical switching frequency of 100kHz, making it suitable for high-performance motor control applications.
The L6235PD comes in a compact 36-pin PowerSO package optimized for surface mounting and occupies a footprint of 16 mm long, 11.1 mm wide, and 3.3 mm high. Its operating temperature range is from -40°C up to a maximum of 150°C, ensuring reliability across harsh environments.
This IC includes integrated decoding logic for Hall-effect sensor inputs and incorporates a PWM current controller that allows it to autonomously drive BLDC motors based on microcontroller commands. It features built-in circuit protection functions such as over-temperature shutdown, overcurrent protection, and under-voltage lockout to provide a safe and durable motor driving solution.
Applications of the L6235PD include industrial automation, robotics, HVAC systems, electric tools, and other motor control tasks requiring precise 3-phase brushless DC motor drive functionality.
Supports 3 phase brushless motor drive with integrated logic. Wide operating voltage from 12V to 52V compatible with industrial power supply. High current capability allowing output current up to 5.6A. Built-in PWM controller and Hall sensor decoder for smooth motor operations.
Multiple safety features for protection against over-current and thermal stress. Compact PowerSO 36-pin surface mount package for efficient PCB layout. Wide temperature range for industrial and commercial applications. Designed by STMicroelectronics for high quality and reliability.
Suitable for industrial motor control, electronic manufacturing, and embedded solutions. Discover more products in the Motor Driver IC category with EnvMart for reliable semiconductor components that enhance your electronic designs.
