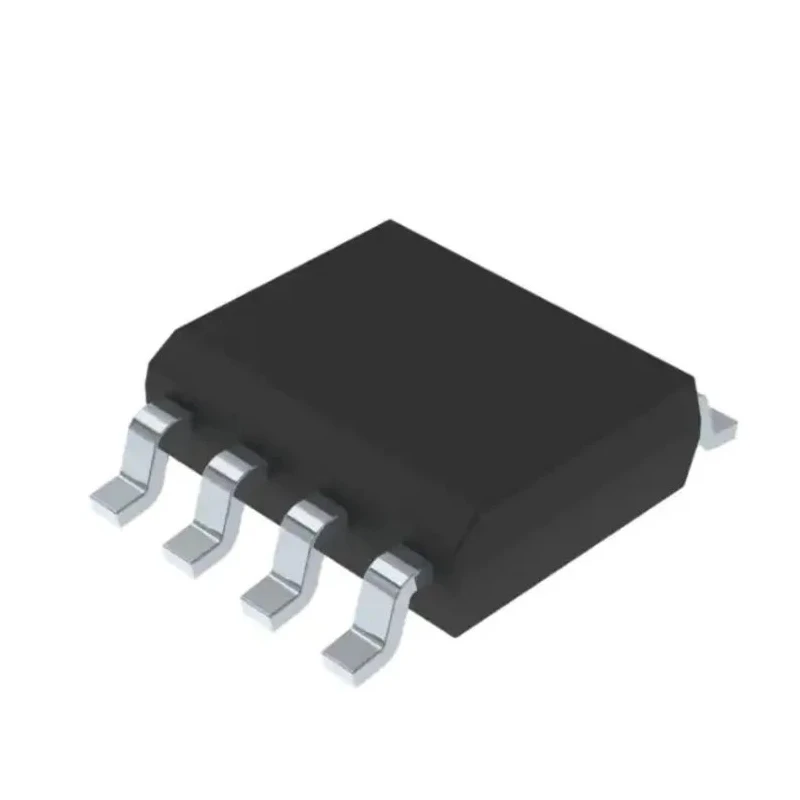

STMicroelectronics Motor Driver IC 21A 8-Pin SO Package 38V VN7050ASTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | VN7050ASTR |
| Series | VN705 |
| Output Current | 21A |
| Maximum Operating Temperature | 150°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 38V |
| Driver Type | Motor |
Key Features
- Supports high-side driving for 12 V automotive grounded loads.
- Single channel smart high-side driver with MultiSense analog feedback.
- Very low standby current to maximize energy efficiency.
- Compatible with both 3 V and 5 V CMOS output interfaces.
- Provides overload and short to ground power limitation indication for enhanced protection.
- Includes thermal shutdown to prevent damage from overheating.
- Detects off-state open-load conditions to ensure operational reliability.
- Features undervoltage shutdown and overvoltage clamp for supply protection.
Product Description
STMicroelectronics VN7050ASTR Motor Driver IC is a high-performance single channel smart high-side driver specifically engineered for automotive applications. Operating at a supply voltage of 38V, this 8-pin SO package device supports an output current of 21A, efficiently driving 12 V automotive grounded loads through CMOS-compatible 3 V and 5 V interfaces.
Manufactured using ST proprietary VI Power M0-7 technology, the IC integrates multiple protection and diagnostic features to ensure robust and reliable operation under harsh automotive conditions. It provides precise MultiSense analog feedback for load monitoring and adheres to the Automotive AEC-Q100 standard for quality and reliability.
Key functional protections include overload and short-to-ground power limitation indication, thermal shutdown, off-state open-load detection, undervoltage shutdown, overvoltage clamp, and load current limitation. The device also features self-limiting fast thermal transients and reverse battery protection when used with external components.
This Motor Driver IC is suitable for use in a wide range of automotive and industrial electronics systems requiring high-current load switching and precise diagnostics, including motor control, lamp control, and solenoid drivers.
Supports high-side driving for 12 V automotive loads with built-in diagnostics. Low standby current optimizes system power consumption. Thermal and electrical protections safeguard both device and load. Reverse battery protection enhances system robustness.
Compliant with automotive-grade quality standards (AEC-Q100). The VN7050ASTR device is packaged in a compact SO-8 form factor, facilitating easy PCB integration and space-saving design.
EnvMart offers this product as part of its comprehensive selection of electronic components for automotive and industrial uses, supporting engineering, manufacturing, and maintenance requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VN7050ASTR has a maximum output current of 21A.
This model operates at a minimum supply voltage of 38V.
The VN7050ASTR is packaged in an 8-pin SO (Small Outline) package.
The VN7050ASTR operates within a temperature range of -40°C to 150°C.
This motor driver IC complies with the Automotive AEC-Q100 standard for quality and reliability.
It supports high-side driving for 12V automotive grounded loads, including applications like motor control and solenoid drivers.
Yes, it includes overload and short-to-ground power limitation indication, thermal shutdown, and undervoltage shutdown among other protections.
Yes, it is compatible with both 3V and 5V CMOS output interfaces.
The VN7050ASTR provides MultiSense analog feedback for load monitoring and off-state open-load detection for operational reliability.
The reverse battery protection enhances system robustness by preventing damage when the battery is connected incorrectly.
It is suitable for automotive and industrial electronics systems requiring high-current load switching, such as motor control and lamp control.
It features very low standby current, which helps maximize energy efficiency in automotive applications.
