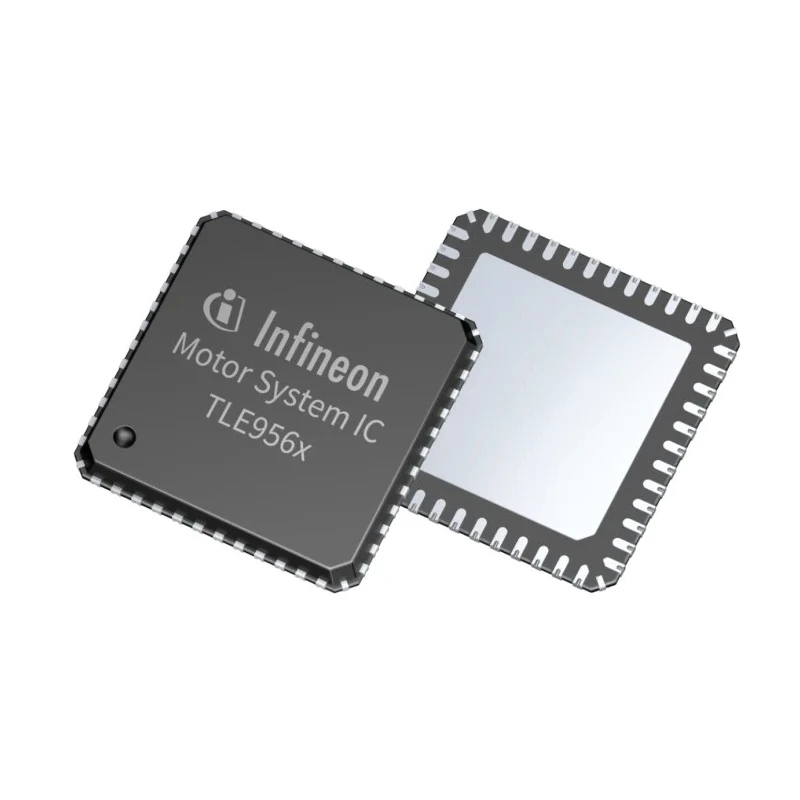

Infineon DC Motor Motor Driver IC, 48-Pin VQFN Package, 250mA Output Current, TLE95603QXXUMA1

The Infineon TLE95603QXXUMA1 is a high-performance DC Motor Driver IC integrated in a 48-pin VQFN package designed to meet comprehensive automotive motor control requirements. The multifunctional system IC encompasses a regulated power supply, communication interfaces such as a high-speed CAN transceiver supporting CAN FD, and multiple half-bridges for efficient and flexible motor control. Its embedded 32-bit SPI interface ensures precise and reliable communication.

This IC supports operational voltage ranging from -0.3 V minimum to 28 V maximum and delivers up to 250 mA output current, suitable for a broad array of automotive DC motors. Its design accommodates severe automotive conditions, certified with the AEC-Q101 standard, with a wide temperature tolerance from -40°C to 150°C.

Key functionalities include very low quiescent current consumption in Stop and Sleep modes which helps to reduce power loss when the motor is inactive. The device additionally provides drain-source monitoring, open-load detection, and configurable watchdog features for enhanced system diagnostics and safety. Over-temperature and short circuit protections ensure operational reliability even in demanding environments.

With a compact footprint of 6.8 mm width and length, and a height of 900 μm, the TLE95603QXXUMA1 facilitates integration into compact automotive electronics architectures. Standard compliant (RoHS) and housed in a surface-mount VQFN-48 package, it offers robust, space-saving solutions for builders of automotive electric motor control systems.

Typical applications include automotive actuator controls, HVAC motor drives, and other embedded DC motor control scenarios requiring high integration, functionality, and robustness.

The product supports industrial, automotive, and commercial sectors with stringent demands on performance and reliability in motor control ICs. The device supports DC motor control with four half-bridges in a compact 48-pin VQFN package.

It features integrated power supply, communication interfaces including HS-CAN supporting CAN FD, and a 32-bit SPI interface. Operates over a wide voltage range from -0.3 V to 28 V with 250 mA output current capability. Designed to function under automotive temperature grades from -40°C to 150°C.

Includes advanced protection features such as over-temperature and short circuit protection. Low quiescent current in Stop and Sleep modes enhances power efficiency. Built to automotive standard AEC-Q101 ensuring robustness and reliability.

Compact dimensions of 6.8 mm by 6.8 mm and height of 900 μm for PCB space-saving designs. Explore more advanced Motor Driver ICs and components to suit your automotive and industrial electronic design needs at EnvMart.
