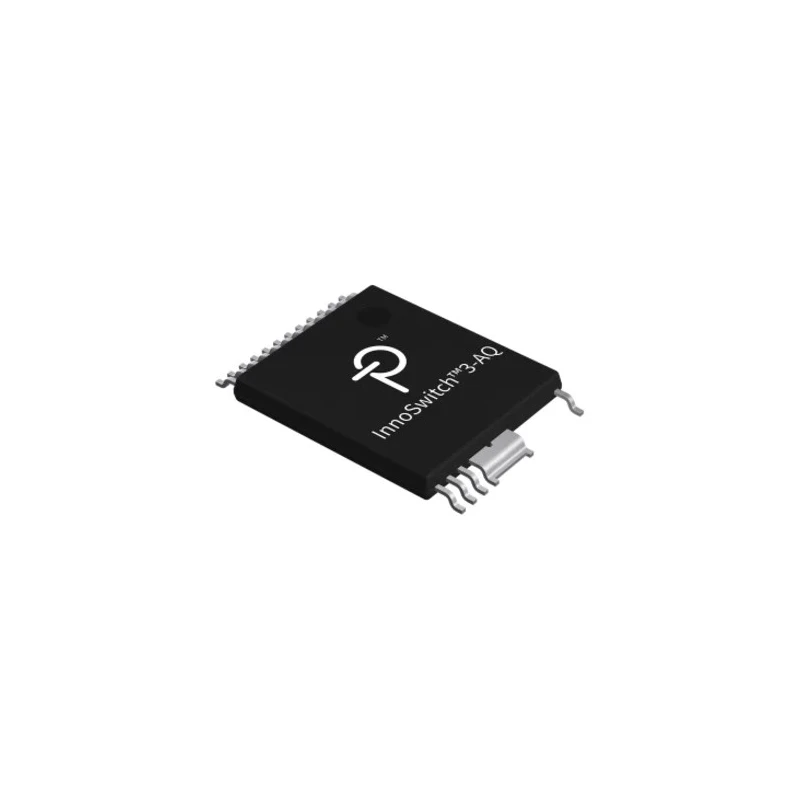

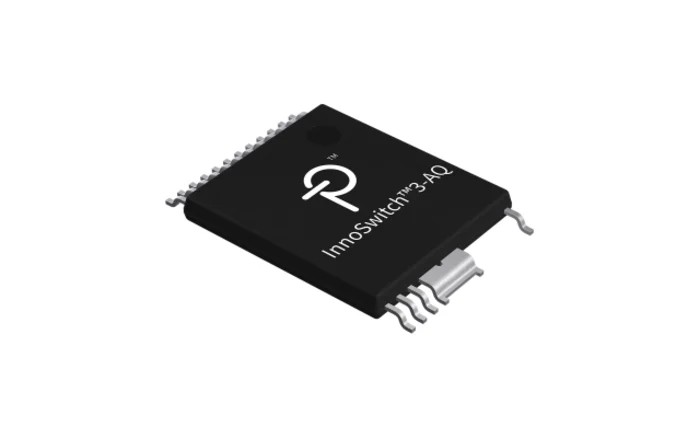

Power Integrations AC/DC Converter Flyback Topology Surface Mount 24-Pin InSOP-24D, 24V, 5V INN3996CQ-TL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Power Integrations |
| Model | INN3996CQ-TL |
| Mount Type | Surface |
| Series | TN |
| Topology | Flyback |
| Maximum Operating Temperature | 150°C |
| Package Type | InSOP-24D |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 95kHz |
| Maximum Input Voltage | 650V |
| Maximum Output Voltage | 24V |
| Minimum Input Voltage | 40V |
| Pin Count | 24 |
| Minimum Output Voltage | 5V |
Key Features
- The device supports a wide input voltage range from 40V to 650V.
- Provides regulated output voltages of 24V maximum and 5V minimum with excellent accuracy.
- Operates with a switching frequency of 95kHz, ensuring efficient power conversion.
- Features a 24-pin InSOP-24D package suitable for automated PCB assembly.
- Built-in protection includes overvoltage, overcurrent, undervoltage, and thermal shutdown.
- Operates reliably from -40°C up to 150°C for demanding industrial environments.
- Meets multiple safety and performance standards including CQC, EN61000-4 suite, VDE 0884-17, TUV, and UL1577.
- Designed for isolated flyback power converter applications with integrated primary and secondary controllers.
Product Description
Power Integrations INN3996CQ-TL AC/DC Converter is a highly integrated power switch IC designed to simplify the development and manufacturing of isolated flyback converters, combining primary and secondary control and safety-rated feedback within a compact InSOP-24D package.
It features a wide input voltage capability ranging from 40V up to 650V, with regulated output voltages from 5V to 24V, addressing diverse power management needs in industrial, automotive, and consumer electronics applications.
Operating at a switching frequency of 95kHz, this device ensures efficient power conversion with minimal loss and achieves up to 90% efficiency across the entire load spectrum. Its compact surface mount design supports automated manufacturing processes.
Multiple built-in protection features provide line over- and under-voltage protection, output overvoltage and overcurrent limiting, and thermal shutdown, enabling robust and reliable operation in harsh environments. The device operates over a wide ambient temperature range from -40°C to 150°C, meeting stringent industrial standards.
Certifications and standards compliance include CQC (GB4943.1), EN61000-4 suite (4-2 to 4-9), VDE 0884-17 (EN IEC 60747-17), TUV (EN62368), and UL1577, ensuring safety and electromagnetic compatibility in demanding scenarios.
The device supports wide input voltage range from 40V to 650V. Regulated output voltages of 24V max and 5V min provide flexibility in power supply design. Compact 24-Pin InSOP-24D package minimizes PCB footprint and weight.
Flyback topology integration simplifies isolated power converter applications. High switching frequency of 95kHz facilitates efficient energy transfer. Multiple protection mechanisms ensure secure and reliable operation.
Wide operating temperature range (-40°C to 150°C) suitable for industrial use. Compliance with multiple international safety and performance standards. Up to 90% energy efficiency promotes reduced power consumption and thermal management.
Low no-load input power (.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The device supports a wide input voltage range from 40V to 650V.
It provides regulated output voltages of a maximum of 24V and a minimum of 5V.
This AC/DC converter operates with a switching frequency of 95kHz, ensuring efficient power conversion.
The device features a 24-pin InSOP-24D package suitable for automated PCB assembly.
It operates reliably in a temperature range from -40°C up to 150°C, making it suitable for demanding industrial environments.
It includes overvoltage, overcurrent, undervoltage protection, and thermal shutdown for secure operation.
The device meets several safety and performance standards including CQC, EN61000-4 suite, VDE 0884-17, TUV, and UL1577.
It achieves up to 90% efficiency across the entire load spectrum, promoting reduced power consumption.
It is designed for isolated flyback power converter applications, suitable for industrial, automotive, and consumer electronics.
The maximum output voltage provided by this model is 24V.
The InSOP-24D package has a total of 24 pins.
The minimum input voltage for this device is 40V.
