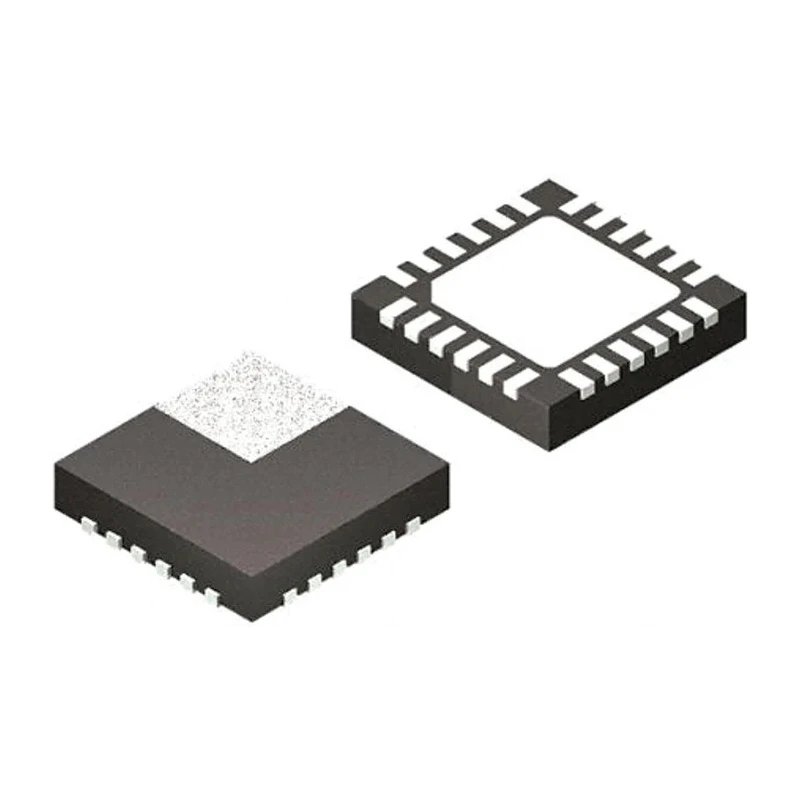

STMicroelectronics Stepper Motor Driver IC 24-Pin TFQFPN 1.5A Output Current STSPIN820
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 4.1mm |
| Model | STSPIN820 |
| Width | 4.1mm |
| Motor Type | Stepper |
| Mount Type | Surface |
| Series | STSPIN820 |
| Configuration | Full Bridge |
| Output Current | 1.5A |
| Maximum Operating Temperature | 150°C |
| Package Type | TFQFPN |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 24 |
| Maximum Supply Voltage | 48V |
| Minimum Supply Voltage | -0.3V |
| Supply Current | 3mA |
Key Features
- Integrated control logic with low RDSon power stage ensures efficient operation.
- Operating voltage range from 7 V up to 45 V supports various motor applications.
- Advanced protection features include overcurrent, overtemperature, short-circuit, and undervoltage lockout.
- Compact surface-mount package measures 4.1 mm x 4.1 mm x 1.1 mm for space savings.
- Microstepping improves motor precision and reduces noise.
- Low supply current of 3 mA minimizes power consumption in standby state.
- Suitable for industrial motor control, robotics, and embedded applications.
Product Description
STMicroelectronics STSPIN820 is a high-performance stepper motor driver IC integrating control logic and power stage within a compact 24-pin TFQFPN package (4.1 mm x 4.1 mm x 1.1 mm). Designed for precise motor control with output current up to 1.5 Arms, it supports operating voltages from 7 V up to 45 V, making it suitable for a wide range of stepper motors.
Featuring PWM current control with programmable fixed OFF times and microstepping resolution up to 1/256th of a step, the STSPIN820 enables smooth and accurate motor positioning. This IC includes comprehensive protection mechanisms such as overcurrent, short-circuit, overtemperature, undervoltage lockout, and thermal shutdown, enhancing system reliability and safety.
The device can enter a low power standby mode to reduce power consumption during inactivity.
This motor driver IC is ideal for industrial automation, robotics, instrumentation, and embedded systems that require efficient, precise stepper motor control. Applications include 3D printers, CNC machines, and other motion control systems.
Integrated PWM current control with fixed OFF time and microstepping up to 1/256th of step. Low RDSon power stage with typical value of 1 Ω combining high side and low side MOSFETs for efficiency. Comprehensive protection set including overcurrent, thermal shutdown, and undervoltage lockout.
Compact 24-pin TFQFPN surface mount package for compact PCB designs. Wide operating temperature range from -40°C to +150°C ensures robust operation in harsh environments. Low supply current of 3 mA reduces energy consumption in standby.
RoHS compliant, ensuring environmental safety and regulatory compliance.
Discover more Motor Driver ICs and related electronic components at EnvMart. Explore our comprehensive range of power management ICs suitable for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STSPIN820 has an output current of up to 1.5A.
It supports an operating voltage range from 7 V up to 45 V.
This model has dimensions of 4.1 mm x 4.1 mm x 1.1 mm.
It is designed to control stepper motors.
The device includes overcurrent, overtemperature, short-circuit, undervoltage lockout, and thermal shutdown protections.
The supply current in standby mode is 3 mA, which helps minimize power consumption.
It operates within a temperature range of -40°C to +150°C.
This model comes in a compact 24-pin TFQFPN package.
It supports microstepping resolution up to 1/256th of a step.
The minimum supply voltage is -0.3V, and the maximum supply voltage is 48V.
It is suitable for applications in industrial automation, robotics, instrumentation, and embedded systems, including 3D printers and CNC machines.
Yes, the STSPIN820 is RoHS compliant, ensuring environmental safety and regulatory compliance.
