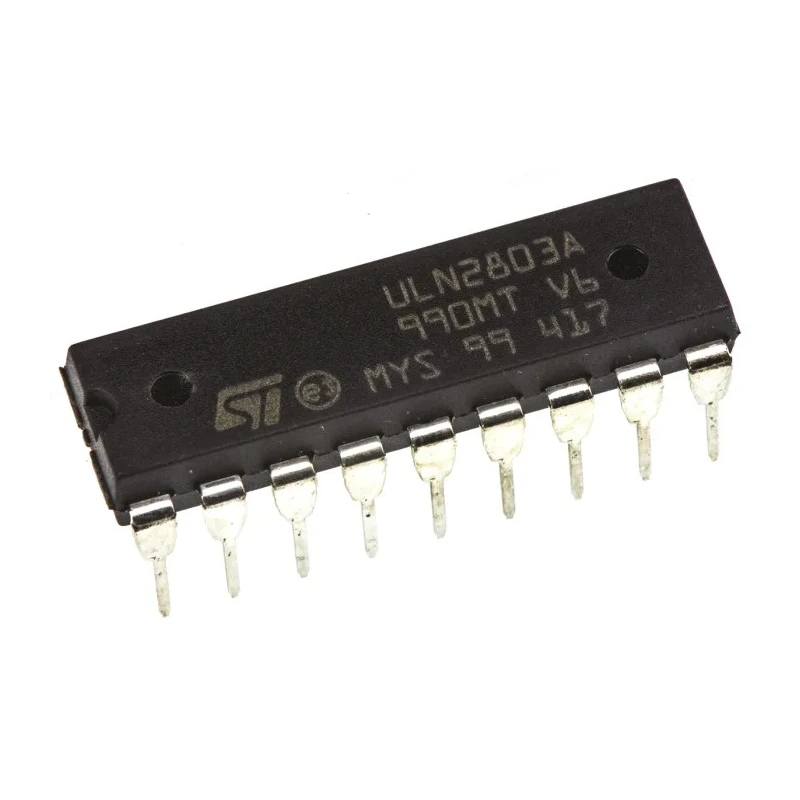

STMicroelectronics High-Voltage High-Current 8-Element NPN Darlington Motor Driver IC ULN2803A 500 mA 50 V 18-Pin PDIP

STMicroelectronics ULN2803A is an 8-element high-voltage, high-current NPN Darlington transistor array designed for motor driver applications. Packaged in an 18-pin PDIP, it contains multiple open-collector Darlington pairs with integral suppression diodes optimized for inductive load switching. Each output is rated for up to 500 mA maximum collector current and 50 V maximum collector emitter voltage, making it suitable for driving relays, motors, and other high-current loads.

The device features a minimum DC current gain (hFE) of 1000 and a maximum power dissipation of 1 W, ensuring efficient switching and reliability. Operating temperature ranges from -20°C to 85°C, enabling operation under typical industrial and electronic control environments. Its through-hole mounting (PDIP) package simplifies PCB layout and prototyping.

This Darlington transistor array supports standard logic level inputs compatible with TTL or CMOS logic devices. The inputs are placed opposite the outputs on the IC, facilitating easy board design and clean signal routing. Integral suppression diodes protect against voltage spikes from inductive loads, enhancing device longevity and system robustness.

Typical applications for the ULN2803A include driving stepper motors, solenoids, relays, and high-current LED arrays in industrial control, instrumentation, and consumer electronics contexts. The combination of high current capacity, voltage rating, and integrated protection features makes it a versatile driver IC suitable for a wide range of electronic and electromechanical interface requirements.

Features eight NPN Darlington transistor pairs for high-current switching. Maximum continuous collector current of 500 mA per channel. Collector emitter voltage rating of 50 V with protection diodes. 18-pin PDIP through-hole package for easy integration on PCB.

Minimum DC current gain of 1000 for efficient operation. Operating temperature range from -20°C to 85°C. Power dissipation rated up to 1 W per package.

Choose the STMicroelectronics ULN2803A for reliable Darlington transistor driver performance in industrial, laboratory, automation, robotics, and general electronic applications. Explore the broad range of Motor Driver ICs and components available at EnvMart for your advanced engineering projects.
