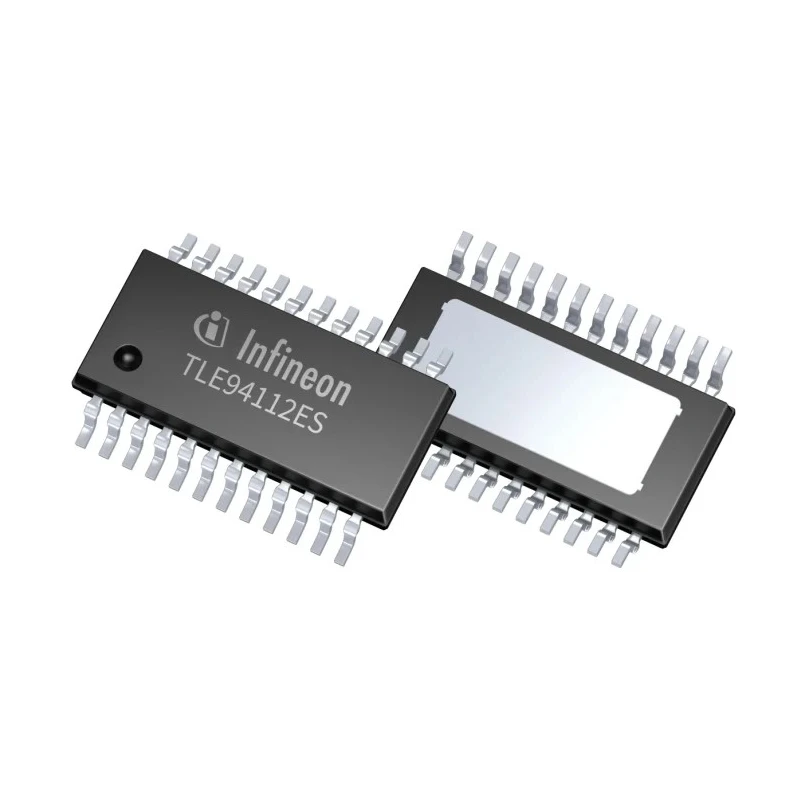

Infineon Motor Driver IC 12 Drivers, 2A Output, 24-Pin PG-TSDSO-24, 40V Surface Mount TLE94112ESXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.15mm |
| Length | 8.65mm |
| Model | TLE94112ESXUMA1 |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | TLE |
| Output Current | 2A |
| Maximum Operating Temperature | 150°C |
| Package Type | PG-TSDSO-24 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Rise Time | 80ns |
| Pin Count | 24 |
| Minimum Supply Voltage | 40V |
| Number of Drivers | 12 |
| Fall Time | 80ns |
Key Features
- Offers up to 2A output current for moderate load-driving capability.
- Supports 40V maximum supply voltage for demanding motor control applications.
- Includes twelve drivers and two outputs for multi-channel control.
- Features fast 80ns rise and fall times to minimize switching losses and EMI.
- Compact PG-TSDSO-24 surface mount package, ideal for PCB installations.
- Operates reliably across a wide temperature range from -40°C to 150°C.
- Suitable for industrial automation, robotics, and actuator control systems.
- Easy integration into compact control boards and mid-voltage power modules.
Product Description
Infineon TLE94112ESXUMA1 Motor Driver IC delivers high-performance motor and actuator control, featuring twelve drivers, a 2A output, and a robust 40V supply range. This dual-output IC is designed for demanding surface-mount board designs requiring reliable signal transitions and efficient switching.
With a maximum supply voltage of 40V and 24-pin PG-TSDSO-24 package, the device offers flexibility for compact PCB assembly. Its twelve individual drivers with two outputs enable sophisticated multi-channel control, making this IC suitable for automation systems, robotics, and industrial equipment.
Offers up to 2A output current for moderate load-driving capability. Supports 40V maximum supply voltage for demanding motor control applications. Includes twelve drivers and two outputs for multi-channel control. Features fast 80ns rise and fall times to minimize switching losses and EMI.
Compact PG-TSDSO-24 surface mount package, ideal for PCB installations. Operates reliably across a wide temperature range from -40°C to 150°C. Suitable for industrial automation, robotics, and actuator control systems. Easy integration into compact control boards and mid-voltage power modules.
Length 8.65 mm, width 3.9 mm, height 1.15 mm profile for optimal PCB layout.
This motor driver IC is ideal for controlling motors and actuators in industrial automation, robotics subsystems, and compact surface-mount installations. It ensures robust switching, controlled signal transitions, and reliable operation even in challenging environments.
Applications include industrial equipment, dual-actuator control in robotics, driver stages in power modules, and PCB designs requiring multiple driver channels. Its high voltage tolerance, moderate current output, and efficient switching characteristics make it a versatile choice for engineering professionals.
Explore more Gate Drivers and Motor Driver IC components from Infineon on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers a maximum output current of 2A, suitable for moderate load-driving capabilities.
It supports a maximum supply voltage of 40V, making it suitable for demanding motor control applications.
This unit includes twelve individual drivers, allowing for sophisticated multi-channel control.
The dimensions of the package are 8.65 mm in length, 3.9 mm in width, and 1.15 mm in height.
It features fast rise and fall times of 80ns, which help minimize switching losses and electromagnetic interference (EMI).
It operates reliably across a wide temperature range from -40°C to 150°C.
This model uses a surface mount type, which is ideal for compact PCB installations.
It has two outputs, enabling multi-channel control for various applications.
It is suitable for industrial automation, robotics, and actuator control systems, among others.
This motor driver IC belongs to the TLE series, which is designed for high-performance motor control.
The country of origin for this model is India.
The PG-TSDSO-24 package has a pin count of 24, facilitating various connections for control and power.
