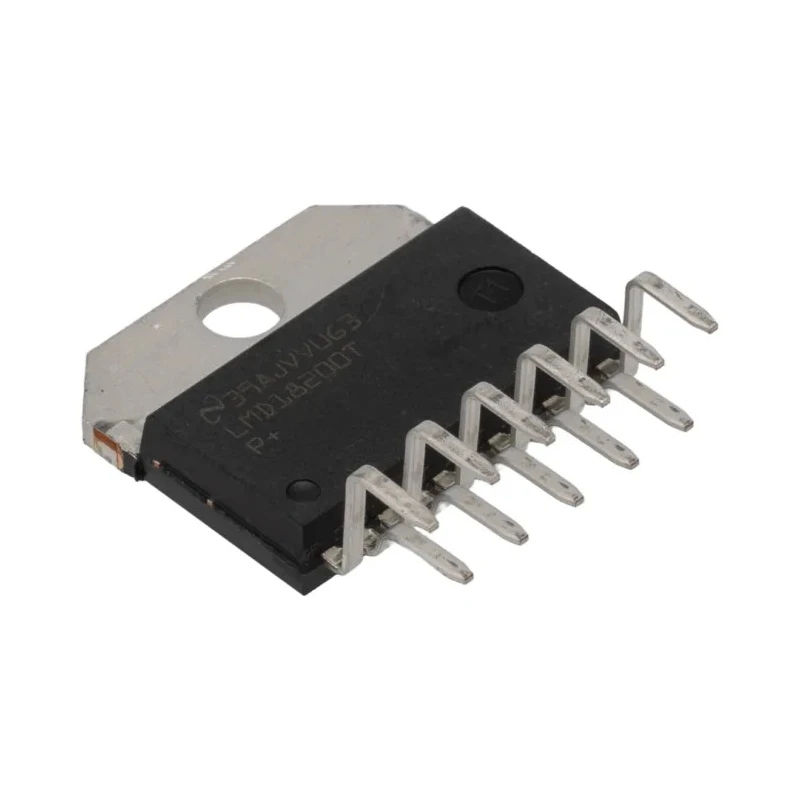

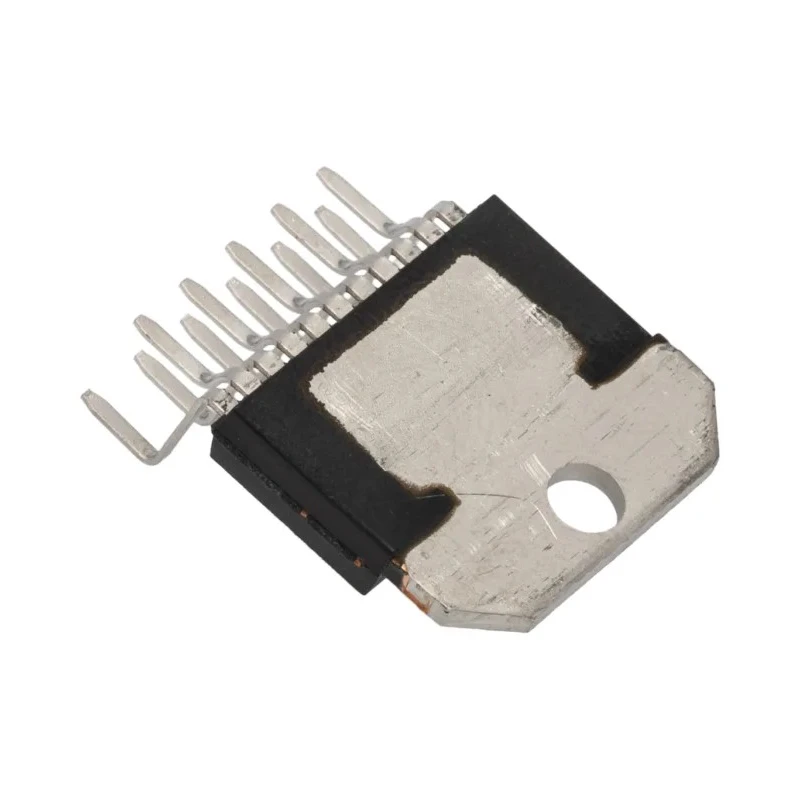

Texas Instruments Brushed DC Motor Driver IC, Half Bridge, 55 V 3 A 11-Pin TO-220 LMD18200T/NOPB

Texas Instruments LMD18200T/NOPB is a robust motor driver IC optimized for brushed DC motor applications requiring continuous output currents up to 6 A and operating at voltages as high as 55 V. Packaged in an industry-standard TO-220 11-pin form factor, this device is well-suited for industrial and automotive motor control systems.

The half bridge configuration enables precise control over the motor speed and direction. The device supports a wide supply voltage range from 12 V to 55 V, making it highly versatile for embedded system designs. With a typical switching frequency of 500 kHz, it allows for efficient switching and reduced power loss in applications.

Operating reliably in harsh environmental conditions, the LMD18200T/NOPB functions over a temperature range of -40°C to 125°C. Its compact size (20.02 mm length, 4.5 mm width, and 10.69 mm height) ensures easy implementation in space-constrained assemblies. The through-hole mount option facilitates sturdy mechanical attachment and thermal dissipation.

This motor driver IC is ideal for industrial motor control, robotics, automation, and power management applications requiring high currents and voltages with efficient switching performance. The device does not carry automotive-specific certifications but meets general industrial standards.

Designed for brushed DC motor driving and control. Maximum IGBT collector current of 3 A and output current of 6 A. Supply voltage range of 12 V to 55 V with half bridge configuration. Typical switching frequency of 500 kHz ensures efficient operation.

Reliable operation between -40°C and 125°C operating temperature. Compact TO-220 11-pin through-hole package for straightforward integration. Explore the extensive range of Motor Driver ICs at EnvMart for various industrial and electronic engineering needs.
