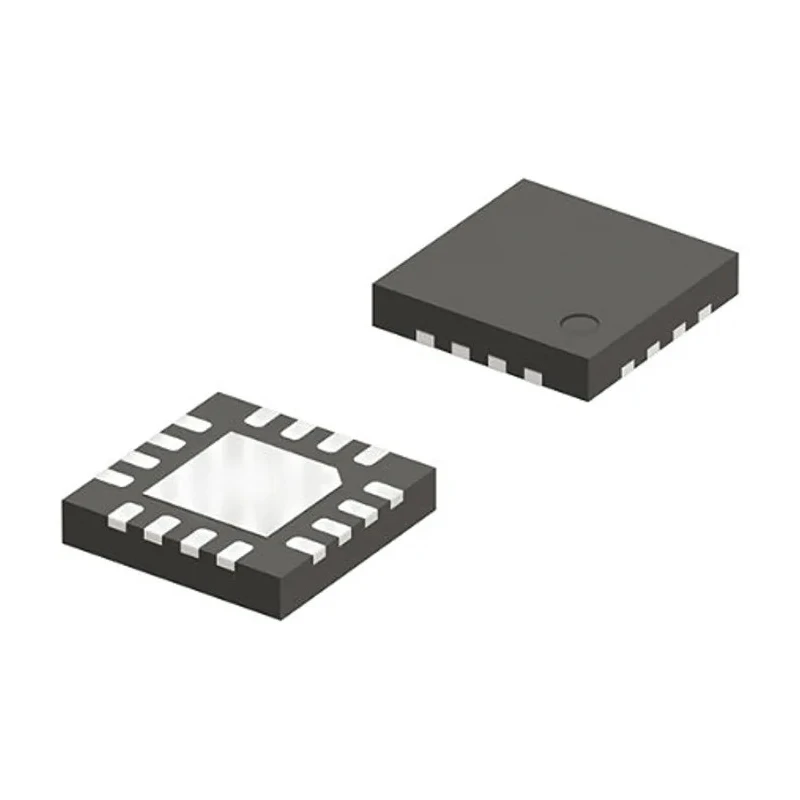

STMicroelectronics Stepper Motor Driver IC 16-Pin Surface Mount QFN Package 1.3A Output Current STSPIN220

STMicroelectronics STSPIN220 Stepper Motor Driver IC in a compact 16-pin QFN surface mount package offers advanced motor control with high efficiency and precision. Designed for stepper motors, the STSPIN220 integrates both control logic and a power stage with low RDS(on), enabling smooth motor operation and optimized energy use.

The integrated controller features PWM current regulation with programmable off-time and supports microstepping resolutions up to 1/256th step, allowing fine movement control for applications requiring high accuracy. The device operates across a broad supply voltage range from 1.8V to 10V, making it ideal for battery-operated and low-voltage motor driver applications.

With a maximum output current capacity of 1.3 Arms, the driver ensures ample power delivery for small to medium stepper motors. It includes a comprehensive protection set including non-dissipative overcurrent, thermal shutdown, and short-circuit protection to safeguard both the device and motor during abnormal conditions.

The STSPIN220 is housed in a small QFN 3.15 x 3.15 x 0.98 mm package, suitable for applications with space constraints. Its surface mount footprint supports automated PCB assembly and compact system design.

Energy efficiency is enhanced with a standby mode that reduces current consumption to less than 80 nA, significantly extending battery life in portable devices. The device is rated for operation in extreme temperatures from -40°C to 150°C, making it suitable for industrial, robotics, automotive electronics, and other demanding environments.

This stepper motor driver IC is suitable for use in embedded systems requiring precise motor control such as 3D printers, CNC machines, robotic arms, and automated manufacturing equipment. STMicroelectronics' STSPIN series ensures reliable performance and integration ease for designers.

The device integrates control logic and low RDS(on) power stage for efficient stepper motor operation. Supports PWM current control with fixed off time and microstepping resolution up to 1/256th of a step. Operates within a voltage range of 1.8V to 10V, suitable for battery-powered applications.

Provides maximum output current of 1.3 Arms with overcurrent, short-circuit, and thermal protection features. Compact QFN package measuring 3.15mm x 3.15mm x 0.98mm for space-constrained designs. Offers energy-saving standby mode with consumption less than 80 nA enhancing battery life.

Operating temperature range from -40°C to 150°C ensures robust performance in harsh environments. Surface mount design enables easy PCB integration and automated assembly. Explore a wide range of Motor Driver ICs and components at EnvMart for industrial automation, robotics, and electronic equipment development.
