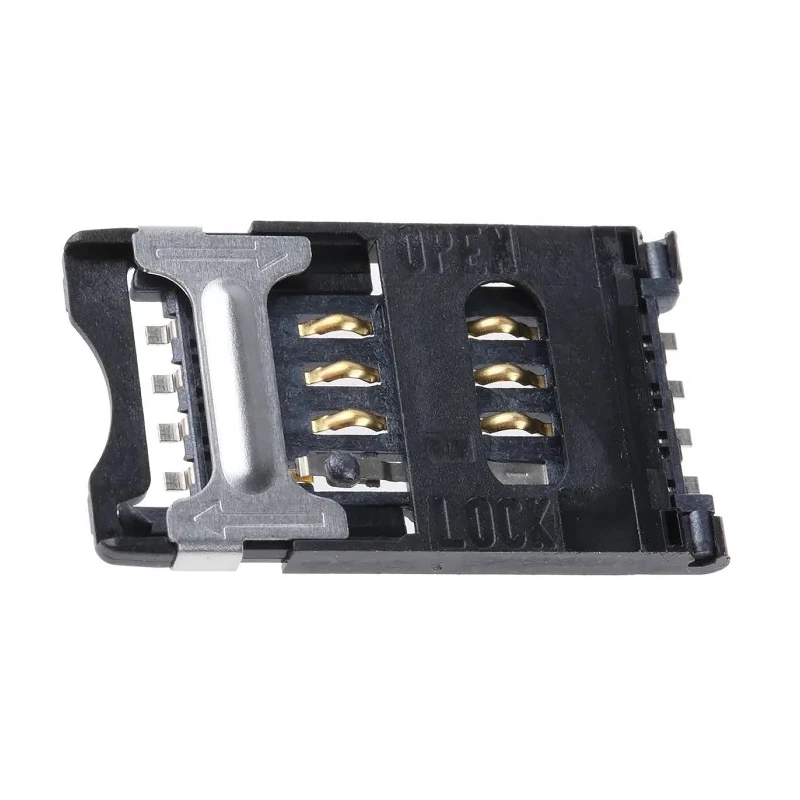

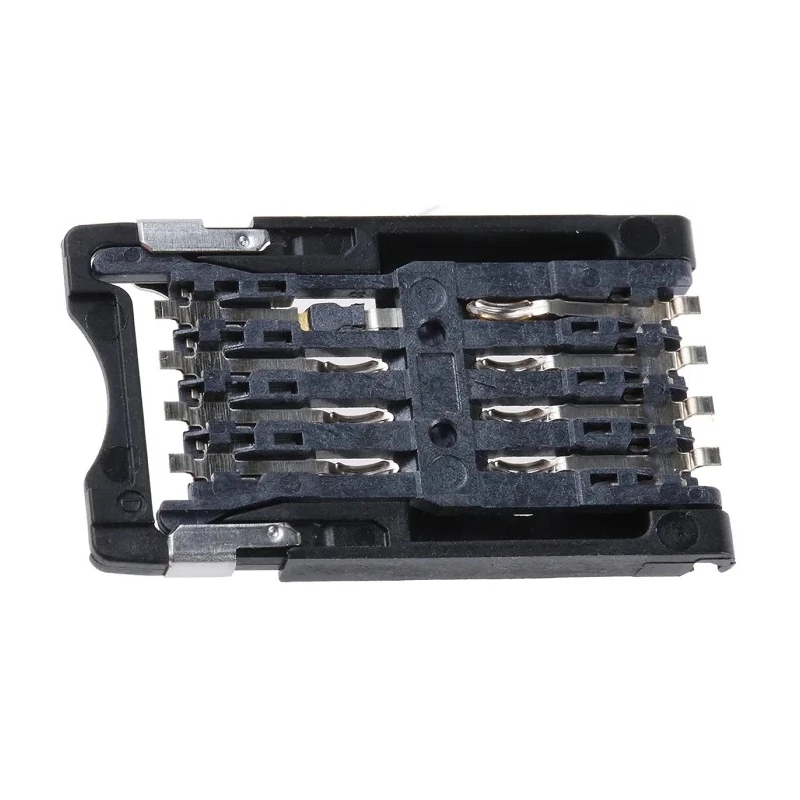

C & K 8 Way Hinged SIM, SAM Memory Card Connector, Surface Mount, Gold Plated Contacts CCM03-3013LFT R102

Free Delivery in India | Lowest Global Shipping Charges

C & K 8 Way Hinged SIM, SAM Memory Card Connector, Surface Mount, Gold Plated Contacts CCM03-3013LFT R102

Name: C & K 8 Way Hinged SIM, SAM Memory Card Connector, Surface Mount, Gold Plated Contacts CCM03-3013LFT R102
Brand: C & K
SKU: 344950
Price: 4.68 USD
Availability: InStock



Category Memory Card Connector Brand C & K Condition New

Specifications

Country of Origin	India
Brand	C & K
Orientation	Straight
Model	CCM03-3013LFT R102
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	8
Card Type	SIM, SAM
Insertion/Removal Method	Hinged Cover
C & K 6 Way SAM, SIM Smart Card Connector With Solder TerminationBrand	C & K

Key Features

Designed for SIM and SAM card types with hinged cover insertion/removal method.
Features 8 contacts arranged in 2 rows with a 2.54 mm pitch.
Constructed with a thermoplastic housing and copper alloy contacts plated in gold.
Surface mount type with solder termination ensuring secure PCB attachment.
Operates reliably within -40°C to 85°C temperature range.
Low profile design allows space-saving on PCBs.
Offers up to 300,000 mating cycles for long-term durability.
Typical applications include mobile phones and POS terminals for smart card interfacing.

Product Description

The C & K CCM03-3013LFT R102 is an 8 Way Hinged SIM, SAM Memory Card Connector designed for robust and reliable surface mount applications. It features a hinged cover insertion and removal mechanism suited for SIM and SAM card types, commonly used in mobile phones and point of sales terminals. This compact connector saves valuable PCB space without compromising performance.

Constructed with a thermoplastic housing and gold plated copper alloy contacts, the connector ensures reliable electrical connections and longevity. With an operating temperature range from -40°C to 85°C, it suits a wide range of industrial and consumer electronics environments.

The connector is surface mount type with solder termination and arranged in 2 rows with a 2.54 mm pitch between contacts. Its low profile design measures only 2.5 mm in height, making it ideal for slim device designs. It withstands up to 300,000 mating cycles, supporting repeated card insertions and removals without performance degradation.

Applications include GSM smart cards where SIMs serve as Subscriber Identity Modules and POS terminals where SAMs act as Security Access Modules, thus supporting communication and payment security. This connector integrates seamlessly in telecommunications, portable electronics, and secure transaction devices.

Hinged cover mechanism allows easy card insertion and removal. Gold plated copper alloy contacts provide excellent conductivity and corrosion resistance. Compact surface mount design aids space-saving on PCBs. Wide operating temperature range ensures versatility across environments.

Durability guaranteed up to 300,000 mating cycles. Thermoplastic housing offers mechanical strength and insulation. Suitable for GSM, POS, and other secure electronic applications. Explore more C & K Memory Card Connectors and other electronic component solutions at EnvMart.
