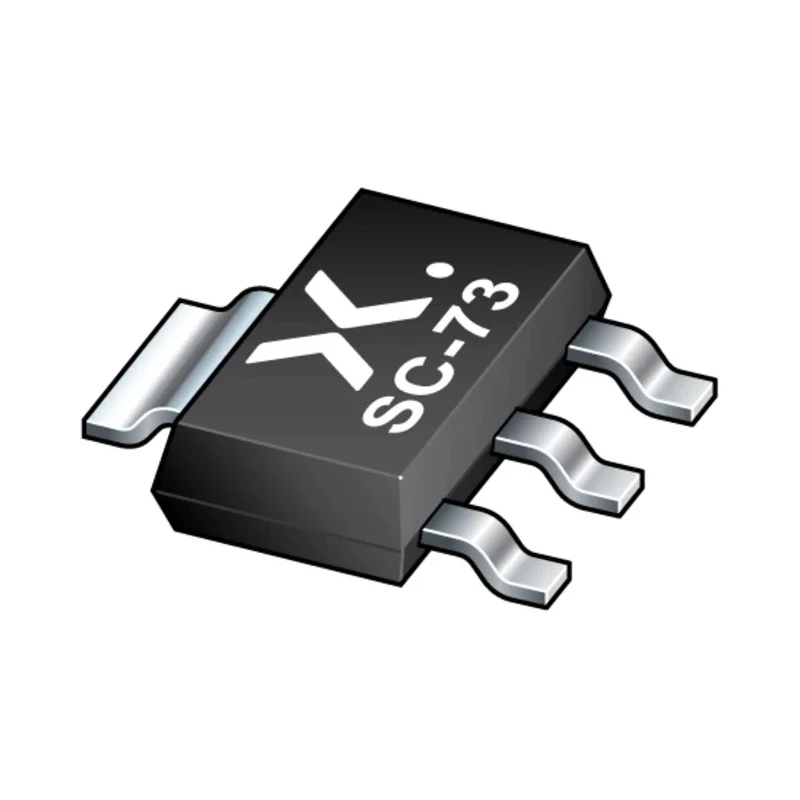

Nexperia PNP Transistor 3 mA, -60 V, 4-Pin SOT-223 Surface Mount PBSS5360ZX

Free Delivery in India | Lowest Global Shipping Charges

Nexperia PNP Transistor 3 mA, -60 V, 4-Pin SOT-223 Surface Mount PBSS5360ZX

Name: Nexperia PNP Transistor 3 mA, -60 V, 4-Pin SOT-223 Surface Mount PBSS5360ZX
Brand: Nexperia
SKU: 215033
Price: 0.21 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.8mm
Length	6.7mm
Model	PBSS5360ZX
Width	3.7mm
Mount Type	Surface
Series	PBSS5360ZX
Maximum Operating Temperature	150°C
Package Type	SOT-223
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Collector Emitter Voltage Vceo	-60V
Minimum DC Current Gain hFE	150
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	-60V
Maximum Collector Base Voltage VCBO	-80V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1.35W
Maximum DC Collector Current Idc	-3mA
Transistor Configuration	Single
Maximum Transition Frequency ft	130MHz

Key Features

This transistor features a low collector-emitter saturation voltage for efficient switching.
It supports a maximum power dissipation of 1.35 W, suitable for medium power applications.
Comes in a compact SOT-223 plastic SMD package with surface mount type.
Has high DC current gain of at least 150 and a transition frequency of up to 130 MHz.
Suitable for automotive applications meeting AEC-Q101 qualification.
Operating temperature range from -55°C to 150°C ensures reliable performance in harsh environments.
Ideal for DC-to-DC conversion, supply line switching, battery chargers, LCD backlighting, and inductive load driving.
Single transistor configuration with PNP polarity for complementary circuit design.

Product Description

Nexperia PBSS5360ZX is a PNP transistor designed for medium power applications with a maximum collector current of 3 mA and a maximum collector-emitter voltage of -60 V. It is housed in a compact 4-pin SOT-223 surface mount package, facilitating easy integration into modern circuit boards.

This transistor offers a low collector-emitter saturation voltage, which reduces power losses and heat dissipation, making it highly energy efficient. It supports a maximum power dissipation rating of 1.35 W and can operate at frequencies up to 130 MHz, ensuring good switching performance.

With a high DC current gain (hFE) minimum of 150, PBSS5360ZX ensures effective amplification in circuits. Its robust design is qualified to AEC-Q101 automotive standards, confirming suitability for high-reliability automotive use.

The operating temperature range from -55°C to 150°C allows this transistor to function reliably in various industrial and automotive environments, including harsh temperature extremes.

Typical applications include DC-to-DC converters, supply line switching, battery charging circuits, LCD backlighting, and inductive load driving such as relays, buzzers, and motors. It is an ideal replacement for complementary circuits alongside the NPN PBSS4360Z transistor.

Low collector-emitter saturation voltage ensures reduced power loss. Max collector current of 3 mA with a max voltage rating of -60 V. Compact 4-pin SOT-223 surface mount package for space-saving designs. High DC current gain and transition frequency suitable for switching applications.

AEC-Q101 qualified for automotive-grade performance and reliability. Wide operating temperature range from -55°C to 150°C. Energy efficient with less heat generation during operation. Suitable for various industrial, automotive, and consumer electronic applications.

Package dimensions: 6.7 mm length, 3.7 mm width, 1.8 mm height. Single PNP transistor configuration in a surface mount form factor. Explore the Nexperia range of semiconductor products and other electronic components at EnvMart for reliable industrial and automotive solutions.
