Nexperia Small Signal NPN Transistor 100 mA 45 V 6-Pin SOT-363 Surface Mount BC847BS,115

Nexperia BC847BS,115 is a small signal NPN bipolar transistor designed for surface mount applications. It supports a maximum DC collector current of 100 mA and collector-emitter voltage of 45 V, making it suitable for signal amplification and switching in electronic circuits.

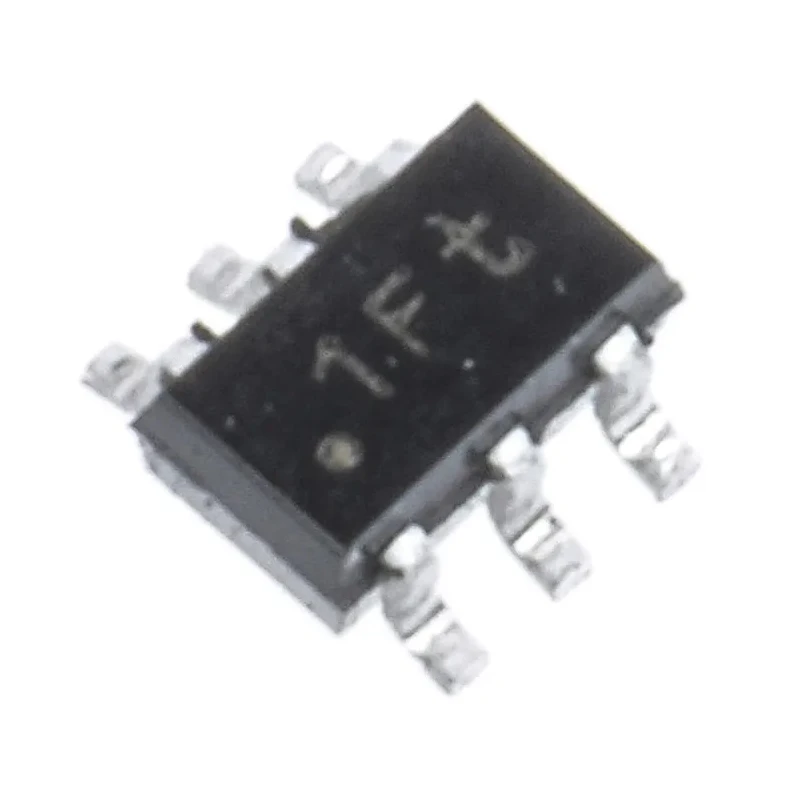

The device is housed in a 6-pin SOT-363 package that facilitates compact PCB design and automated assembly. With a minimum DC current gain (hFE) of 200, it provides excellent signal amplification performance. Its maximum power dissipation of 200 mW and operating temperature range from -65°C to 150°C ensure robust performance in diverse industrial and commercial environments.

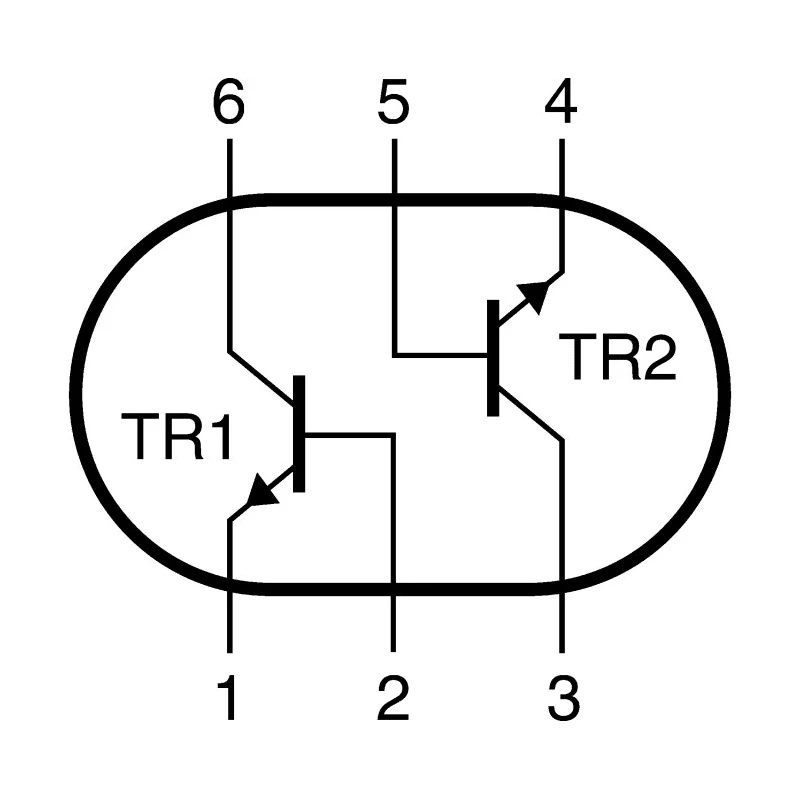

The transistor’s isolated configuration reduces undesired internal coupling, improving signal integrity. It also features a maximum transition frequency of 100 MHz, enabling usage in high-frequency signal processing such as audio, communication, and instrumentation systems.

This component is RoHS compliant and manufactured in Malaysia, meeting quality and environmental standards.

Typical applications include use in electronic circuit boards for consumer electronics, industrial instruments, telecommunications, and automotive electronics where compact and reliable transistor components are required.

Maximum DC collector current of 100 mA for small signal applications. Collector-emitter voltage rating of 45 V for switching and amplification. Surface mount 6-pin SOT-363 package enables compact PCB assembly. Minimum DC current gain of 200 improves gain performance.

Wide operating temperature range (-65°C to 150°C) supports harsh environments. Maximum power dissipation capped at 200 mW for thermal management. Isolated transistor configuration reduces internal interference. High transition frequency of 100 MHz for fast switching circuits.

Compact physical dimensions: 3 mm length × 2.5 mm width × 1.1 mm height. RoHS compliant and made in Malaysia ensuring quality and compliance. Explore a wide selection of Bipolar Transistors at EnvMart for all your electronic assembly needs.
