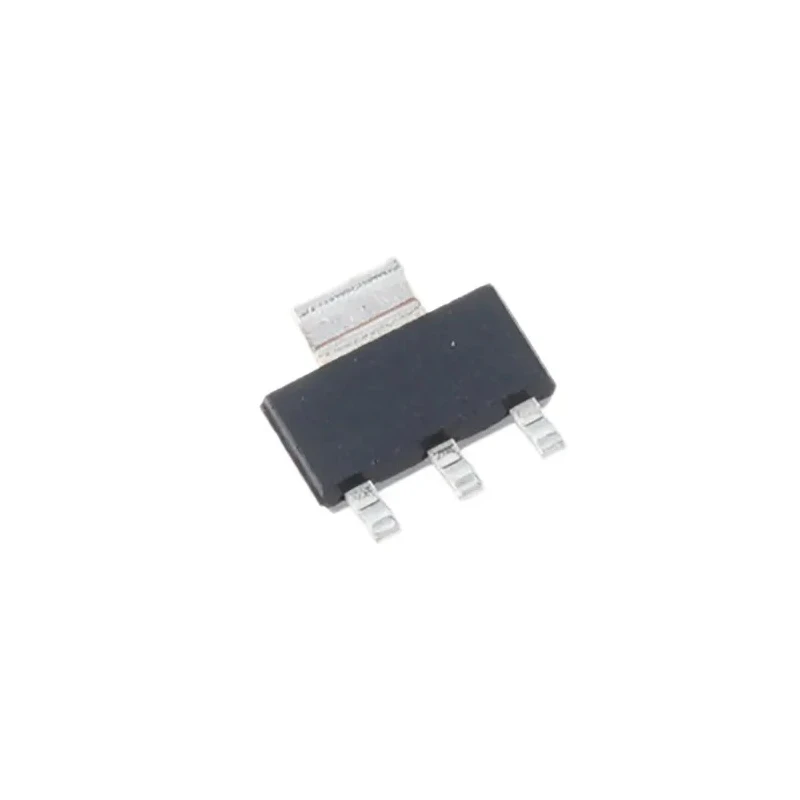

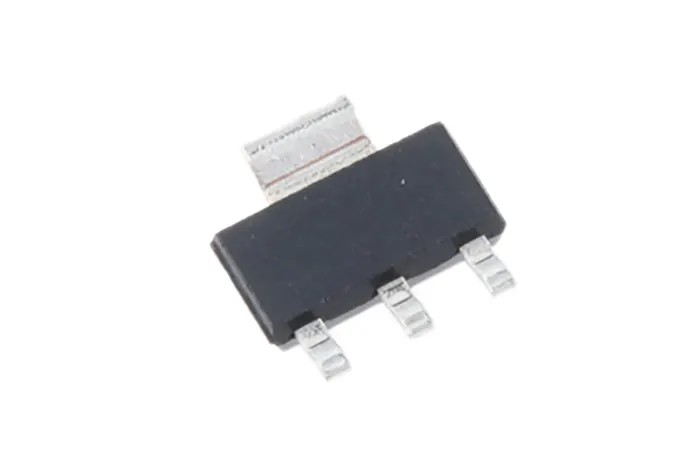

Nexperia NPN General Purpose Transistor 600 mA 40 V 4-Pin SOT-223 PZT2222A,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia NPN General Purpose Transistor 600 mA 40 V 4-Pin SOT-223 PZT2222A,115

Name: Nexperia NPN General Purpose Transistor 600 mA 40 V 4-Pin SOT-223 PZT2222A,115
Brand: Nexperia
SKU: 185453
Price: 0.36 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.65mm
Length	6.7mm
Model	PZT2222A,115
Width	3.7mm
Mount Type	Surface
Series	PZT2222A
Maximum Operating Temperature	150°C
Package Type	SOT-223
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Collector Emitter Voltage Vceo	40V
Minimum DC Current Gain hFE	100
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	6V
Maximum Collector Base Voltage VCBO	75V
Maximum Power Dissipation Pd	1.15W
Maximum DC Collector Current Idc	600mA
Transistor Configuration	Single
Maximum Transition Frequency ft	300MHz
Infineon BCP55 NPN Bipolar Transistor, 1 A, 60 V, 4-Pin SOT-223Brand	Infineon
onsemi PZT2222AT1G Bipolar Transistor, 600 mA NPN, 40 V, 4-Pin SOT-223Brand	onsemi

Key Features

Designed for general purpose switching and amplification applications.
Features a maximum power dissipation of 1.15 W for reliable operation.
Equipped with a maximum transition frequency of 300 MHz for high-speed switching.
Incorporates single transistor configuration with NPN polarity.
Supports operating temperature range from -65°C to 150°C for varied environments.
Compact dimensions of 6.7 mm length, 3.7 mm width, and 1.65 mm height.
Complies with RoHS standards ensuring environmentally safe manufacturing.
Four-pin surface mount design enables easy PCB integration.

Product Description

Nexperia presents the PZT2222A,115, a high-performance NPN bipolar transistor tailored for general purpose electronic applications requiring a maximum DC collector current of 600 mA and a collector-emitter voltage of up to 40 V. Encapsulated in a compact 4-pin SOT-223 surface-mount package, this transistor ensures efficient switching and amplification capabilities.

This transistor supports a maximum power dissipation of 1.15 W and a transition frequency reaching 300 MHz, suitable for high-speed circuits. Designed to operate reliably across a broad temperature range from -65°C to 150°C, it is ideal for both industrial and commercial electronic equipment.

The PZT2222A,115 features a single transistor configuration with an NPN polarity and boasts robust electrical characteristics including maximum collector-base voltage of 75 V and emitter-base voltage of 6 V. Its compact physical dimensions - 6.7 mm length, 3.7 mm width, and 1.65 mm height - facilitate dense PCB layouts and surface mounting.

Compliant with RoHS regulations, this transistor supports eco-friendly manufacturing practices. The four-pin arrangement eases installation and integration into various semiconductor circuits including amplifiers, switches, and signal processing modules.

General purpose NPN bipolar transistor for switching and amplification. Maximum DC collector current of 600 mA and 40 V collector-emitter voltage. Power dissipation rating of 1.15 W for reliable performance. High transition frequency of 300 MHz suitable for high-speed applications.

Wide operating temperature range from -65°C to 150°C. RoHS compliant for environmental safety. Compact and efficient 4-pin SOT-223 surface mount package.

This transistor is widely applicable in industrial electronics, instrumentation, communication devices, and control systems. It offers excellent performance for general semiconductor requirements across various sectors.
