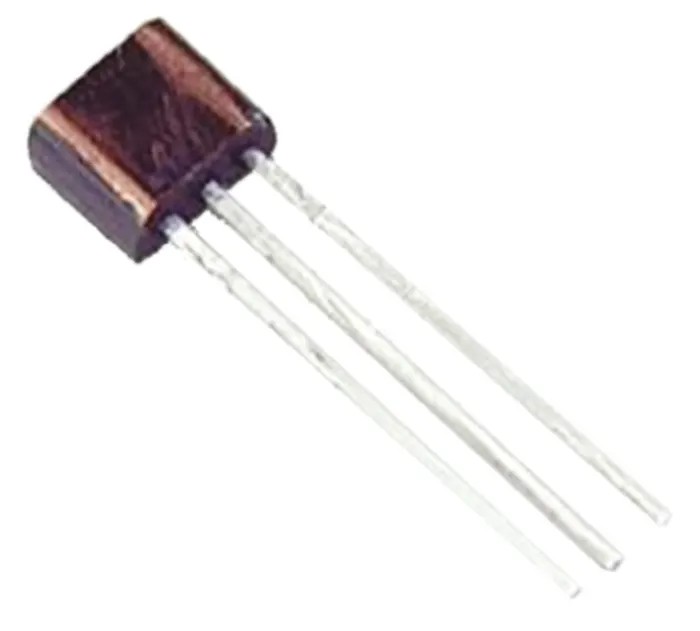

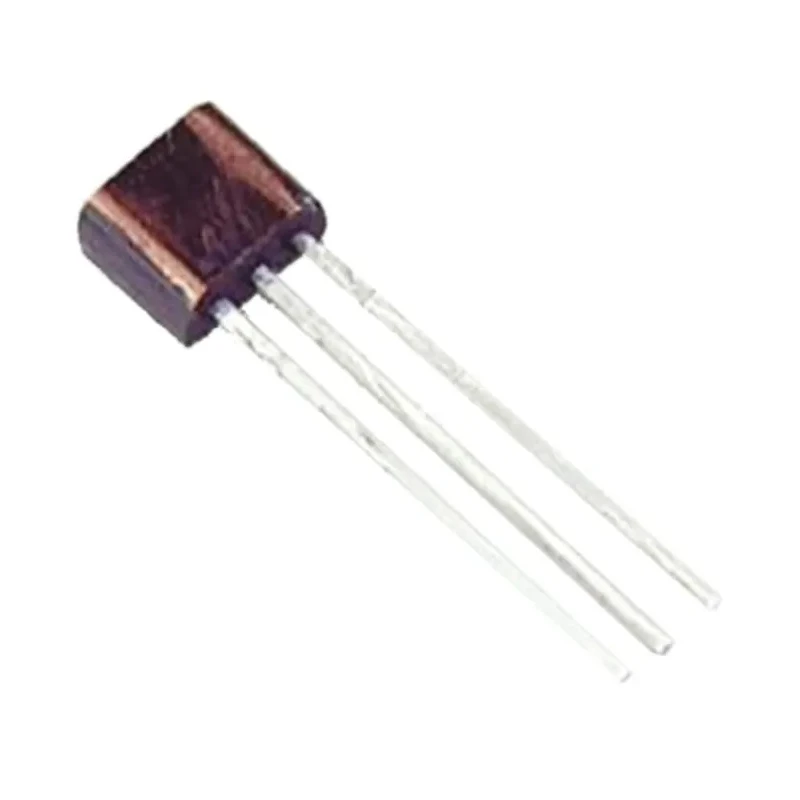

DiodesZetex NPN Bipolar Transistor, 2 A DC Collector Current, 45 V Collector Emitter Voltage, E-Line 3-Pin Through ZTX690B

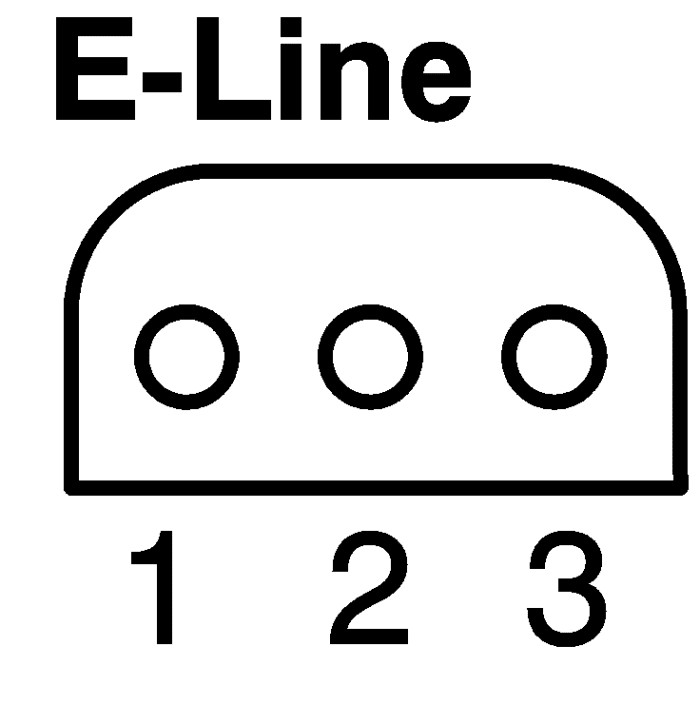

DiodesZetex ZTX690B is a general purpose NPN bipolar transistor designed for electronic applications requiring a collector current up to 2 A and a collector emitter voltage of 45 V. This transistor is housed in a 3-pin E-Line package, enabling easy through hole mounting on printed circuit boards.

Constructed for reliable operation, the ZTX690B can dissipate a maximum power of 1 W and provide a minimum DC current gain (hFE) of 150, ensuring effective signal amplification. It supports a maximum emitter base voltage of 5 V and maximum collector base voltage of 45 V, making it suitable for various amplification and switching applications.

The transistor operates efficiently at frequencies up to 150 MHz, supporting high-speed electronic circuits. Its thermal operating range extends from -55°C to 200°C, which makes the component robust for industrial and commercial uses in diverse environments.

This NPN transistor is widely used in semiconductor discrete components for designing amplifiers, switches, and other electronic circuits in industrial, commercial, and laboratory electronics.

This transistor features a 3-pin E-Line package for through hole mounting. It supports a maximum power dissipation of 1 W ensuring reliable performance. Provides a minimum DC current gain (hFE) of 150 for amplification applications.

Designed to operate over a wide temperature range from -55°C to 200°C. The maximum transition frequency is 150 MHz suitable for high frequency switching. Maximum emitter base voltage of 5 V and collector base voltage of 45 V.

Ideal for electronic circuits requiring general purpose NPN transistors over 1.5 A. It is supplied as new product condition for industrial and engineering applications. Explore more in the Bipolar Transistors category on EnvMart for similar high-quality semiconductor components optimized for various power and signal processing tasks.
