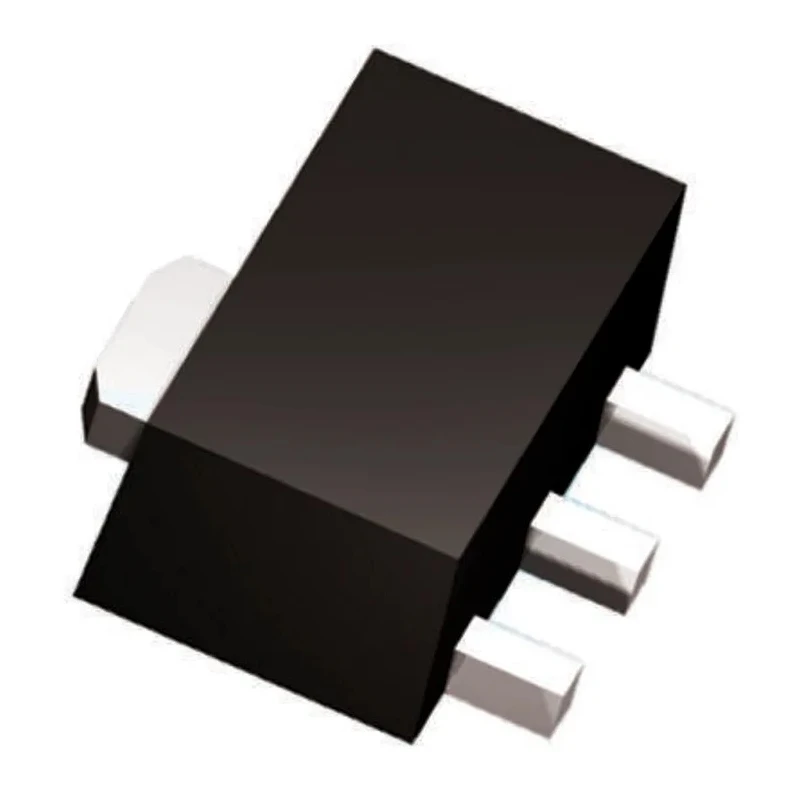

Nexperia Transistor PNP Bipolar General Purpose 1 A, 60 V, 4-Pin UPAK BCX52-16,115

The Nexperia BCX52-16,115 is a general purpose PNP bipolar transistor designed primarily for surface mount applications. With a maximum DC collector current of 1 A and a maximum collector emitter voltage of 60 V, this transistor supports a wide range of electronic circuit requirements, including industrial, automotive, and commercial uses.

The device comes in a compact 4-pin UPAK package measuring 4.6 mm length, 4.25 mm width, and 1.6 mm height, making it suitable for high-density PCB designs where space saving is critical. Its robust electrical characteristics include a power dissipation of 1.3 W and reliable operation in temperatures ranging from -55°C to 150°C, ensuring stable performance in harsh environments.

Designed with a minimum DC current gain (hFE) of 63 and a maximum transition frequency of 145 MHz, the BCX52-16,115 transistor provides efficient amplification and fast switching capabilities. It meets the automotive AEC-Q101 standard, certifying it fit for automotive electronics, including control units and sensor interfaces.

The UPAK package supports surface mounting, enhancing automated assembly and reliability in manufacturing. With a total of 4 pins, the transistor configuration is optimized for single transistor applications where high gain and linearity are needed.

This transistor is ideal for various industrial sectors, including automotive electronics, power supplies, signal amplification, and communication devices. Its combination of electrical ratings and standardized package makes it a versatile component in semiconductor design.

General purpose PNP transistor suitable for surface mount applications. Maximum DC collector current of 1 ampere. Collector emitter voltage rated at 60 volts. Features a 4-pin UPAK package for compact circuit design. Maximum power dissipation rated at 1.3 watts.

Minimum DC current gain (hFE) of 63. Wide operating temperature range from -55°C to 150°C. Automotive grade with AEC-Q101 standard compliance. Maximum transition frequency of 145 MHz for high-speed switching. Pin count of 4 allows flexible mounting and connection.
