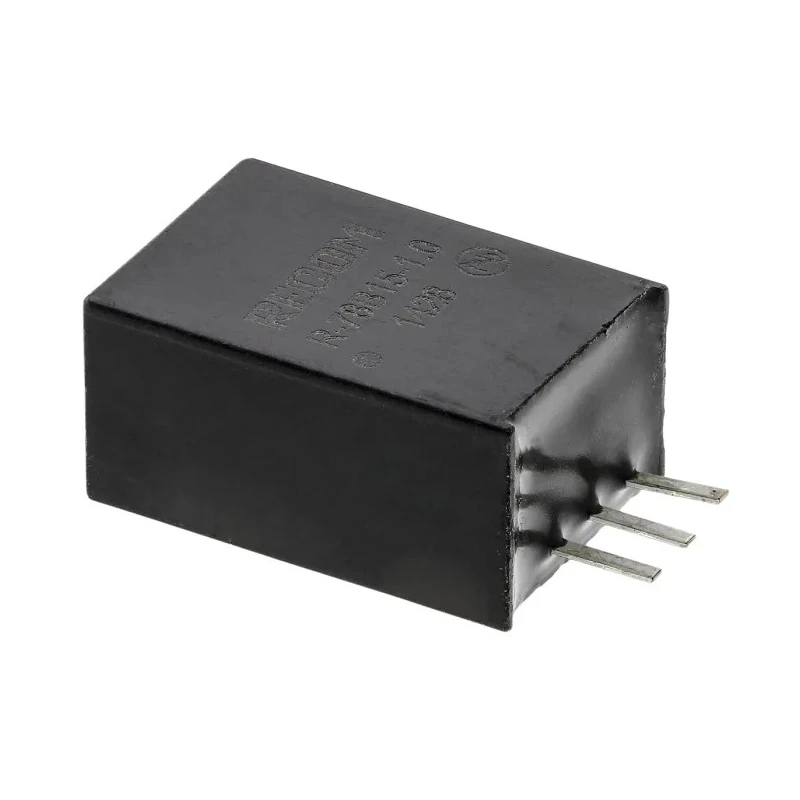

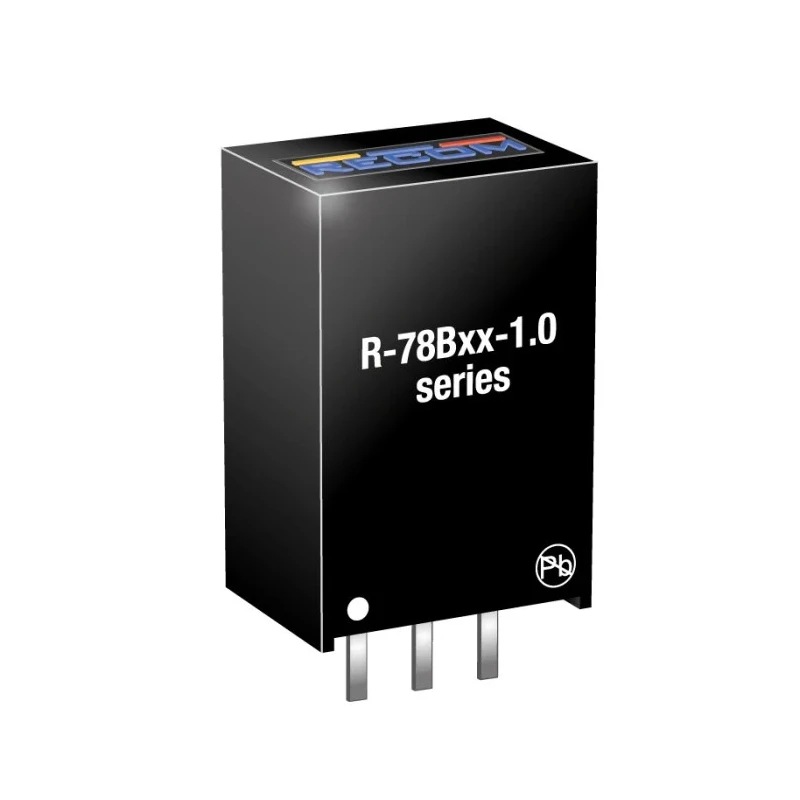

Recom Through Hole Switching Regulator SIP Package 15V DC Output Voltage 1A Output Current 0.65W Power R-78B15-1.0
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / Switching Regulators Recom Switching Regulator, Through Hole, 15V d |
| Brand | Recom |
| Power | 0.65W |
| Efficiency | 97% |
| Length | 11.5mm |
| Model | R-78B15-1.0 |
| Depth | 17.5mm |
| Gross Weight | 4g |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | R-78B-1.0 |
| Output Current | 1A |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | 0.25 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 6584000h |
| Number of outputs | 1 |
| Ripple and Noise | 25mV Pk-Pk |
| Maximum Input Voltage | 26V dc |
| Line Regulation | 0.1 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 32V dc |
| Number of Pins | 3 |
| Output Voltage 1 | 15V dc |
Key Features
- High efficiency of 97% ensures minimal energy loss during operation.
- Compact dimensions of 17.5mm depth, 8.5mm width, and 11.5mm length suit crowded PCB designs.
- Wide operating temperature range from -40°C to 85°C for reliable performance in harsh environments.
- Built-in short-circuit protection and thermal shutdown enhance system safety.
- Compatible pin-out with LM78xx linear regulators for versatile use.
- Maintains a stable 15V output from input voltages up to 26V DC.
- Mean Time Between Failures (MTBF) of approximately 6.58 million hours indicating high reliability.
Product Description

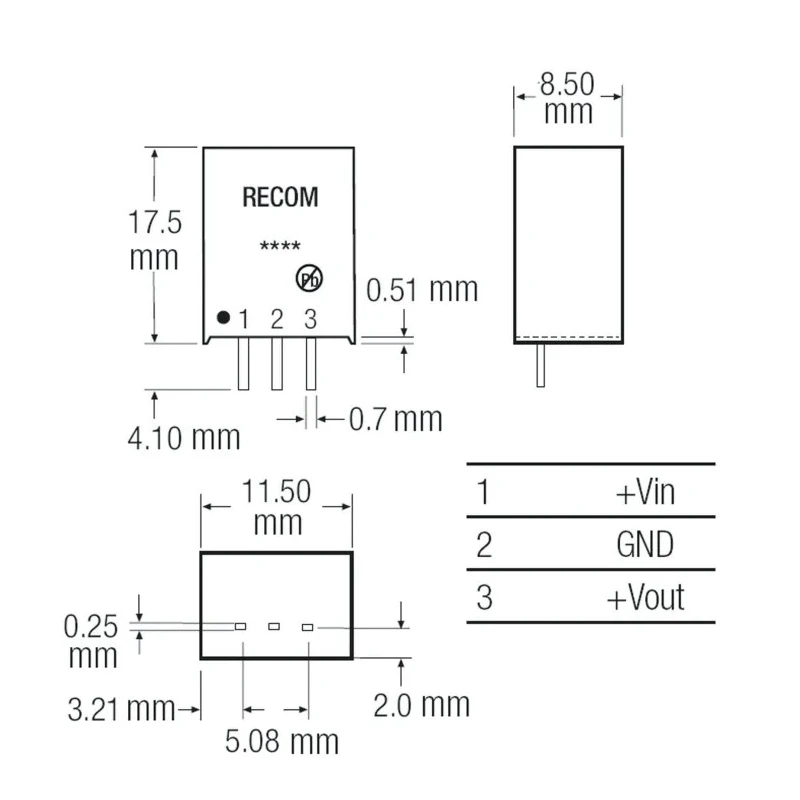

Recom R-78B15-1.0 is a high-efficiency through-hole switching regulator designed to convert input DC voltage to a regulated 15V DC output with 1A current capacity. Packaged in a SIP form factor, this regulator features a compact design of 17.5mm depth, 8.5mm width, and 11.5mm length, suitable for high-density circuit boards.
Operating efficiently at 97%, it reduces energy wastage, making it ideal for various electrical engineering applications including robotics, networking equipment, and medical devices. Its operational temperature range from -40°C up to 85°C allows deployment in challenging industrial and commercial environments.
This model includes protective features such as built-in short-circuit protection and integrated thermal shutdown to prevent damage due to overheating or electrical faults. The regulator's pin configuration is compatible with LM78xx linear regulators, allowing easy replacement or upgrade in existing systems.
With a maximum input voltage of 26V DC and an output ripple noise of 25mV peak-to-peak, it ensures stable power delivery. The remarkable mean time between failures (MTBF) of 6,584,000 hours underscores its durability and reliability in continuous operation scenarios.
High efficiency of 97% minimizes power loss. Compact SIP package fits small spaces. Wide temperature operation from -40°C to 85°C. Built-in protections ensure system safety. Compatible with LM78xx regulators for ease of use.
Low ripple noise of 25mV Pk-Pk for clean output. Long operational life with over 6.5 million hours MTBF.
This switching regulator is a dependable component suitable for industrial electronics, laboratory instrumentation, and commercial electrical systems requiring quality power regulation.
Explore more Switching Regulators and electrical components in EnvMart’s extensive electronics category to find compatible products and related solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 15V DC with a maximum output current of 1A.
The compact dimensions of this unit are 11.5mm in length, 8.5mm in width, and 17.5mm in depth.
The maximum input voltage for this switching regulator is 26V DC.
It has a high efficiency rating of 97%, ensuring minimal energy loss during operation.
This model operates effectively in a wide temperature range from -40°C to 85°C.
It includes built-in short-circuit protection and thermal shutdown to enhance system safety.
The output ripple noise is 25mV peak-to-peak, ensuring stable power delivery.
Yes, it features a compatible pin-out with LM78xx linear regulators for versatile use.
The MTBF for this switching regulator is approximately 6.58 million hours, indicating high reliability.
This model is designed for through-hole mounting, suitable for crowded PCB designs.
The load regulation is specified at 0.25%, ensuring stable output under varying loads.
This switching regulator complies with RoHS standards, ensuring it meets environmental regulations.
