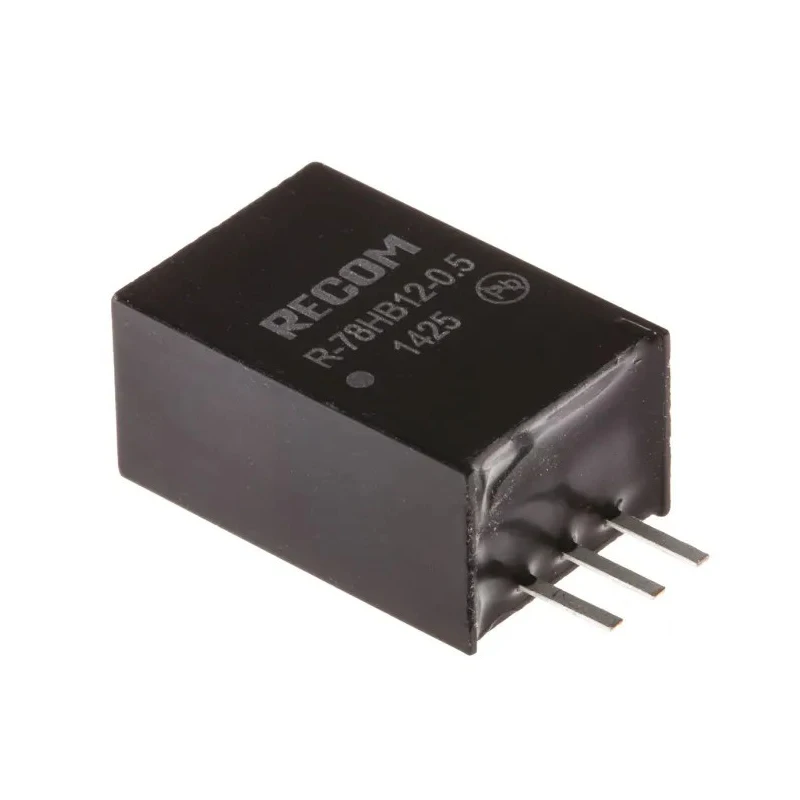

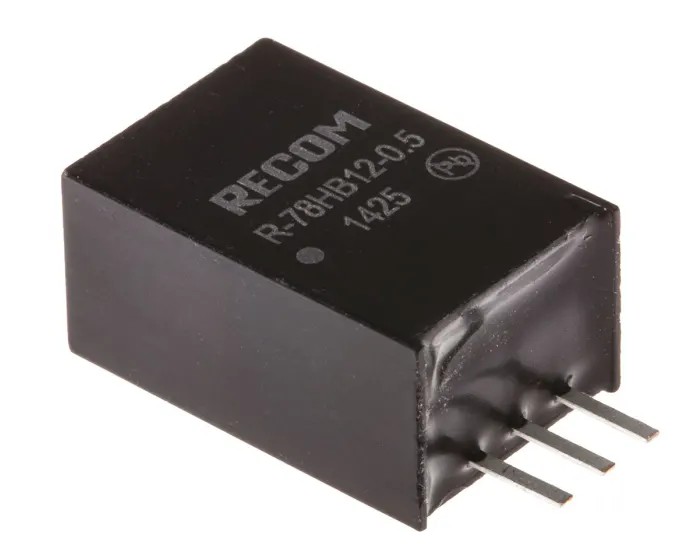

Recom Switching Regulator Through Hole 12V DC Output Voltage 72V DC Input, 500mA Output Current, 6W Power R-78HB12-0.5
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / Switching Regulators Recom Switching Regulator, Through Hole, 12V d |
| Brand | Recom |
| Power | 6W |
| Efficiency | 89% |
| Length | 11.5mm |
| Model | R-78HB12-0.5 |
| Depth | 17.5mm |
| Gross Weight | 4g |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | R-78HB |
| Output Current | 500mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | ±0.6 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 7395000h |
| Number of outputs | 1 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Input Voltage | 72V dc |
| Line Regulation | ±1 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 17V |
| Output Voltage 1 | 12V dc |
Key Features
- High efficiency of 89% reduces heat generation and eliminates need for heat sinks.
- Wide operating temperature range from -40°C to +85°C ensures performance in demanding environments.

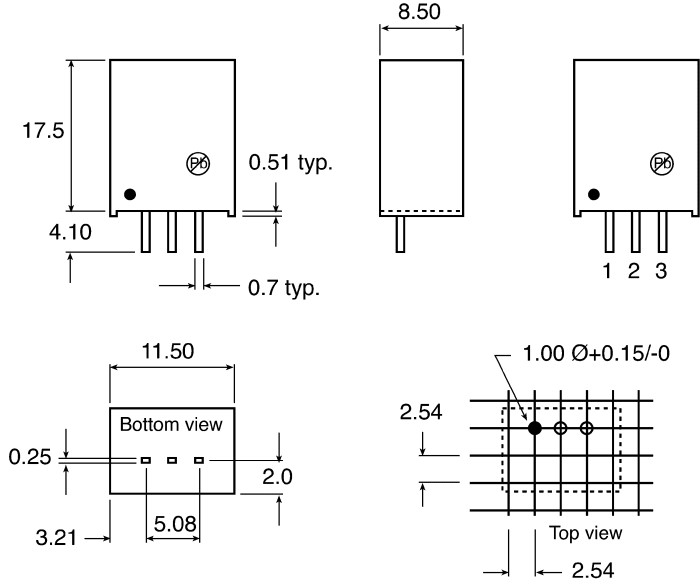

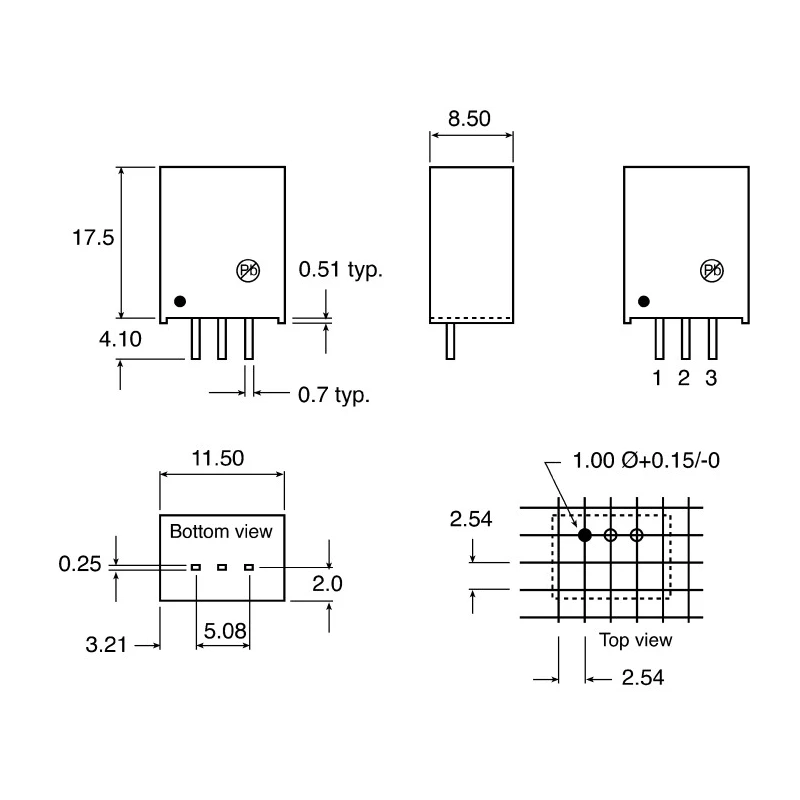

- Compact SIP package with dimensions 11.5mm length x 8.5mm width x 17.5mm depth.
- Low ripple and noise of 20mV Pk-Pk for stable voltage output.
- Integrated short-circuit protection enhances device durability.
- Output voltage accuracy within ±2% for precise voltage regulation.
- Suitable for communications, packaging, consumer electronics, and aviation applications.
- Through-hole mounting simplifies installation on PCBs.
Product Description
Recom R-78HB12-0.5 is a high-performance switching regulator designed for industrial and commercial electronic systems requiring regulated 12V DC output. Featuring a through-hole mounting format, this regulator accepts wide input voltage ranging from 17V to 72V DC, making it adaptable for various power supply configurations.
The device operates at an efficient 89%, minimizing heat dissipation and eliminating the need for additional heat sinks, optimizing space on control panels. Its low ripple and noise level of 20mV Pk-Pk ensures steady and clean power delivery to sensitive electronic components.
Operating reliably across a temperature range from -40°C to +85°C, it is suitable for demanding applications in communications equipment, packaging machinery, consumer electronics, and aviation industry devices. The integrated short-circuit protection safeguards the regulator from damage in fault conditions, enhancing overall system robustness.
The compact SIP package dimensions of 11.5mm (length) x 8.5mm (width) x 17.5mm (depth) and lightweight design (4g) facilitate easy integration into printed circuit boards through the through-hole mounting style, allowing for secure and straightforward installation.
High efficiency of 89% minimizes energy loss. Wide input voltage range from 17V to 72V DC. Low ripple and noise for high-quality output. Wide operating temperature range suited for harsh environments. Short-circuit protection for enhanced reliability.
Precision output voltage accuracy within ±2% tolerance. Compact SIP package optimized for PCB mounting. Applications include communications, packaging, consumer electronics, and aviation.
This switching regulator is an excellent solution for industrial control systems, laboratory instruments, telecommunications, HVAC controllers, manufacturing equipment, water treatment plants, and agricultural machinery requiring stable 12V power supply.
Explore more power management and Switching Regulator options within the Recom brand catalog on EnvMart to find solutions tailored to your specific application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 12V DC.
It accepts a wide input voltage range from 17V to 72V DC.
This unit has a maximum output current of 500mA.
The efficiency of this model is rated at 89%.
The dimensions are 11.5mm in length, 8.5mm in width, and 17.5mm in depth.
It operates within a temperature range of -40°C to +85°C.
This switching regulator features a through-hole mounting type.
The ripple and noise level is specified at 20mV Pk-Pk.
It is suitable for applications in communications, packaging, consumer electronics, and aviation.
Yes, it includes integrated short-circuit protection to enhance durability.
The load regulation is ±0.6%.
This model is compliant with RoHS standards.
