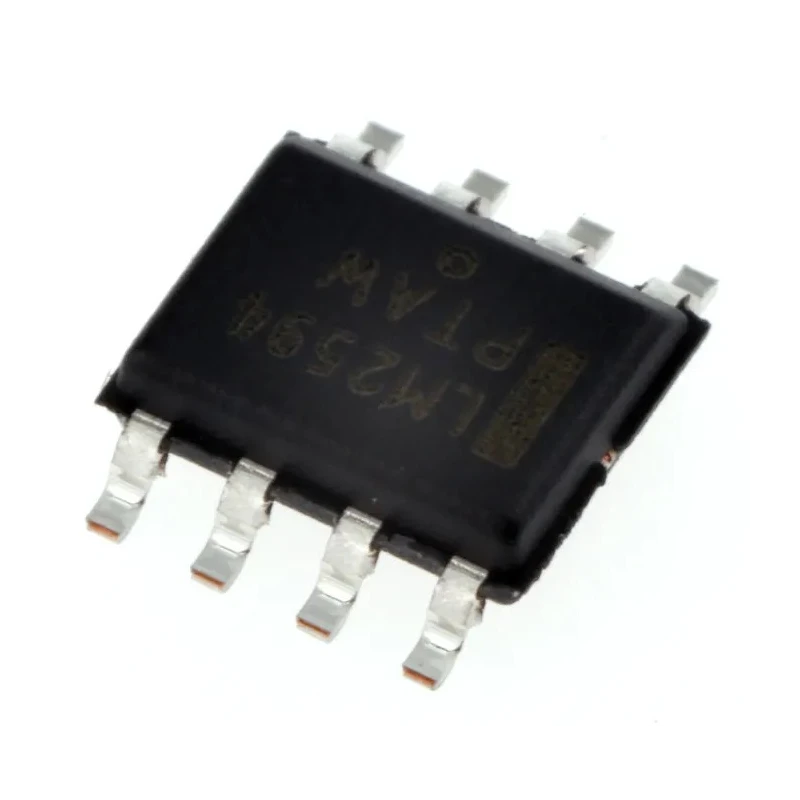

onsemi 5 Outputs Switching Regulator Surface Mount 37V Output Voltage 500mA Output Current LM2594DADJR2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Power | 0.75W |
| Efficiency | 80% |
| Length | 5mm |
| Model | LM2594DADJR2G |
| Depth | 1.75mm |
| Width | 4mm |
| Mount Type | Surface |
| Series | LM2594 |
| Output Current | 500mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Ripple and Noise | 50mV |
| Maximum Input Voltage | 40V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 37V |
Key Features
- Multi-output design with 5 outputs for versatile power applications.
- Compact SOIC package with dimensions 5mm (L) x 4mm (W) x 1.75mm (D) suitable for surface mounting.
- Operates at maximum input voltage of 40V and minimum input voltage of 4.5V.
- High efficiency of 80% and low ripple noise of 50mV ensure stable voltage supply.
- Wide operating temperature range from -40°C to 125°C for reliable performance under harsh conditions.
- Current capacity supports up to 500mA output for moderate load power devices.
- Designed for step-down DC-DC converter applications with ON Semiconductor LM2594 series compatibility.
- RoHS compliant ensuring environmental safety and regulatory adherence.
Product Description
onsemi LM2594DADJR2G 5 Outputs Switching Regulator in a surface mount SOIC package provides 37V output voltage and 500mA output current with high efficiency, suitable for compact power supply designs and voltage regulation.
This switching regulator supports multiple outputs with 5 distinct outputs available, enabling complex power management in electronic circuits. The device has an operating voltage range from 4.5V minimum to 40V maximum input, enabling versatile use across various applications.
The regulator exhibits an efficiency of 80%, minimizing power losses, and maintains a low ripple noise level of 50mV, ensuring stable voltage outputs critical for sensitive electronics. It operates reliably across a wide temperature range from -40°C to 125°C, making it suitable for industrial, commercial, and laboratory electronics applications.
Featuring an 8-pin SOIC package with compact dimensions (length 5mm, width 4mm, depth 1.75mm), it optimizes PCB space and supports automated surface mounting techniques. The device is part of the LM2594 series of switching regulators designed for step-down DC-DC converter configurations, commonly utilized in power supplies, embedded systems, and communication equipment.
Multi-output switching regulator with 5 independent outputs. High efficiency performance rated at 80%. Compact SOIC package dimensions: 5mm x 4mm x 1.75mm. Wide input voltage range from 4.5V to 40V. Low output ripple and noise at 50mV for clean power delivery.
Operating temperature range from -40°C to 125°C suitable for harsh environments. RoHS compliant for environmental safety. Suitable for use in industrial, laboratory, and electronic manufacturing environments.
Set contains a single switching regulator integrated circuit optimized for efficient voltage conversion and power management in electronic systems. This component is ideal for applications requiring multiple regulated output voltages with compact and reliable surface mount packaging. Users in electronics design, power supply manufacturing, and automated production will find this device integral for stable voltage step-down solutions.
Explore more high-performance Switching Regulators and power supply components in EnvMart's comprehensive Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 37V.
It can operate with a maximum input voltage of 40V.
This model has an efficiency rating of 80%.
It provides 5 independent outputs for versatile power applications.
The output current capacity is 500mA.
The dimensions of the package are 5mm (L) x 4mm (W) x 1.75mm (D).
It operates within a temperature range of -40°C to 125°C.
This model supports surface mounting.
The output ripple and noise level is 50mV.
Yes, it is RoHS compliant, ensuring environmental safety and regulatory adherence.
The minimum input voltage required is 4.5V.
This switching regulator is part of the LM2594 series.
