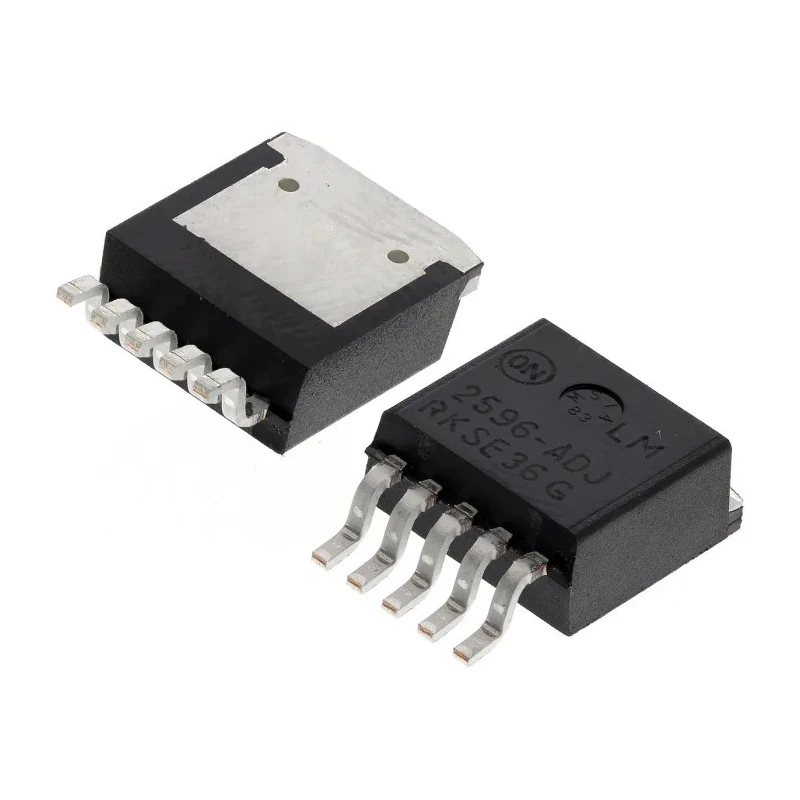

onsemi 5 Outputs Switching Regulator Surface Mount TO-263 Package 37V Output Voltage 3A Output Current LM2596DSADJR4G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Efficiency | 73% |
| Length | 10.24mm |
| Model | LM2596DSADJR4G |
| Depth | 4.5mm |
| Width | 4.57mm |
| Mount Type | Surface |
| Series | LM2596 |
| Output Current | 3A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Ripple and Noise | 50mV |
| Maximum Input Voltage | 40V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 5 |
| Output Voltage 1 | 37V |
Key Features
- Operates with input voltage range from 4.5V to 40V.
- Equipped with five output channels to support multiple loads.
- Designed with TO-263 package with dimensions 10.24mm length, 4.57mm width, and 4.5mm depth.
- Achieves 73% efficiency with low 50mV ripple and noise specification.
- Functions reliably across temperature range from -40°C to 125°C.
- Complies with RoHS standards ensuring environmental safety.
- Features a robust 5-pin configuration ensuring compact and efficient layout.
Product Description
onsemi LM2596DSADJR4G is a high-performance 5 outputs switching regulator designed for surface mounting applications. It features a TO-263 package with compact dimensions of 10.24mm length, 4.57mm width, and 4.5mm depth, making it suitable for space-constrained electronic circuits. This device delivers a reliable 37V output voltage with a continuous 3A output current, ideal for powering multiple loads in industrial and commercial electronics.
Operating efficiency reaches up to 73%, reducing energy loss and heat generation during operation. The low ripple and noise level of 50mV ensures stable voltage output critical for sensitive electronic components. The regulator supports a wide input voltage range from 4.5V up to 40V, allowing flexible input power sources.
With an operating temperature range from -40°C to 125°C, it sustains performance reliability in harsh environmental conditions. The device complies with RoHS directives, promoting environmental responsibility in electronic design and manufacture. Its 5-pin TO-263 package simplifies PCB layout and integration into power supply circuits.
This switching regulator is widely used in electronic components, power supplies, and voltage converter systems for industrial, laboratory, and commercial applications. It is suitable for DC-DC conversion tasks including buck (step-down), boost (step-up), and flyback topologies.
Operates with input voltage range from 4.5V to 40V. Equipped with five output channels to support multiple loads. Designed with TO-263 package with dimensions 10.24mm length, 4.57mm width, and 4.5mm depth. Achieves 73% efficiency with low 50mV ripple and noise specification.
Functions reliably across temperature range from -40°C to 125°C. Complies with RoHS standards ensuring environmental safety. Features a robust 5-pin configuration ensuring compact and efficient layout. Explore more high-quality Switching Regulators and power management components on EnvMart for your professional and industrial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 4.5V to 40V.
It delivers a reliable output voltage of 37V with a continuous output current of 3A.
This switching regulator achieves an efficiency of 73%.
The dimensions of the TO-263 package are 10.24mm in length, 4.57mm in width, and 4.5mm in depth.
It features a low ripple and noise specification of 50mV.
The operating temperature range is from -40°C to 125°C.
This model is equipped with five output channels to support multiple loads.
It is designed for surface mounting applications.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is suitable for DC-DC conversion tasks including buck, boost, and flyback topologies in industrial, laboratory, and commercial applications.
The TO-263 package features a robust 5-pin configuration.
The country of origin for this switching regulator is India.
