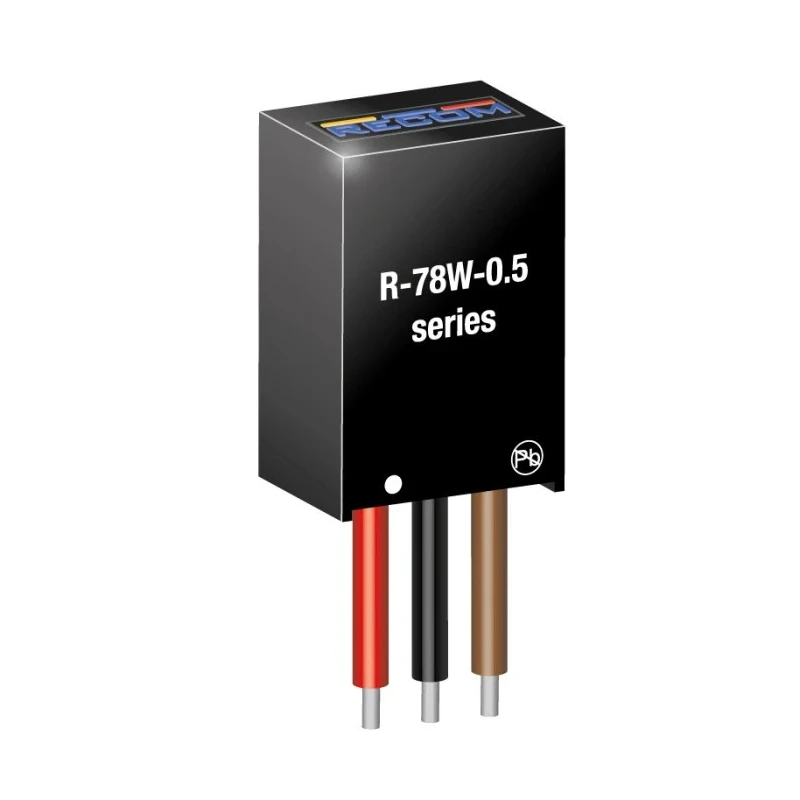

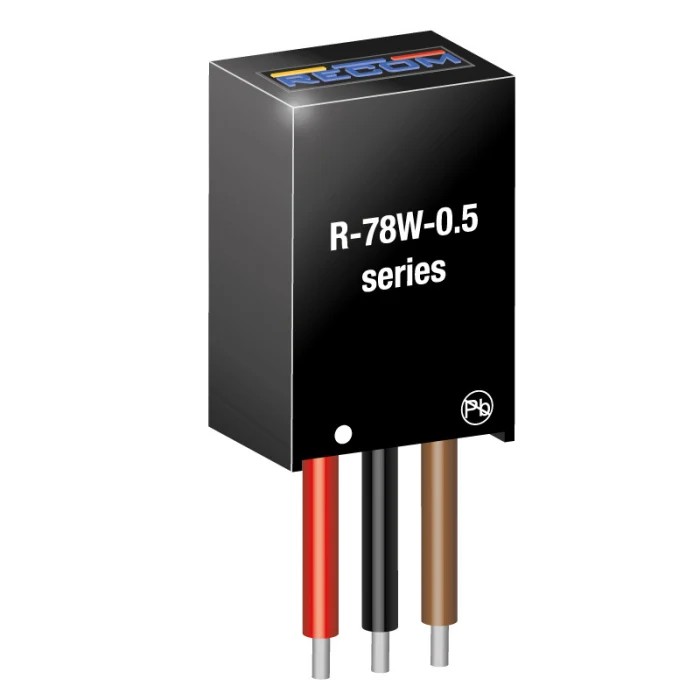

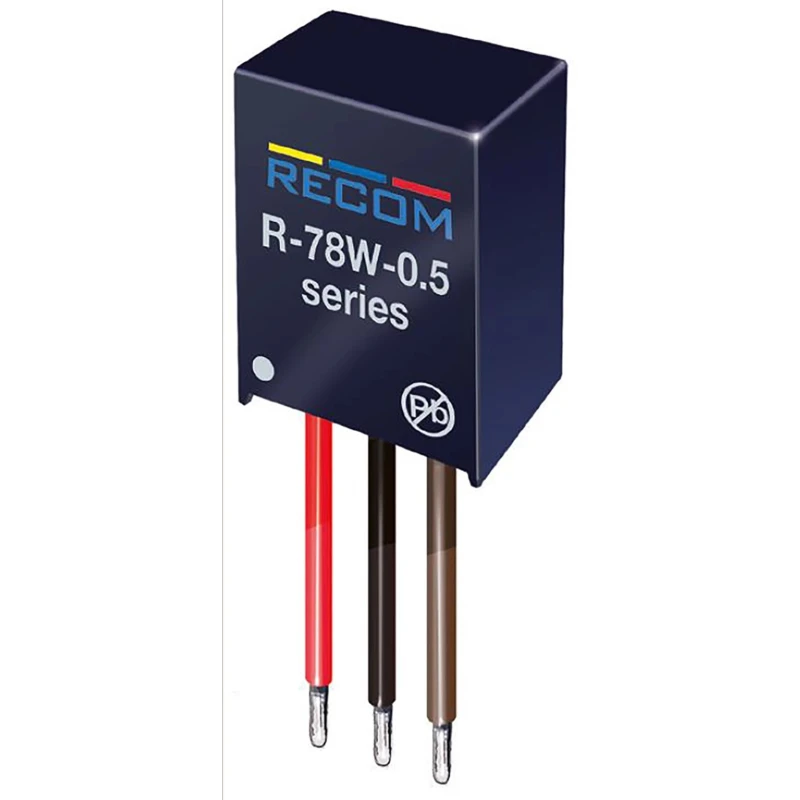

Recom Switching Regulator Through Hole 5V DC Output Voltage 500 mA Output Current 2.5W Power R-78W5.0-0.5
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / Switching Regulators Recom Switching Regulator, Through Hole, 5V dc |
| Brand | Recom |
| Power | 2.5W |
| Efficiency | 94% |
| Length | 11.5mm |
| Model | R-78W5.0-0.5 |
| Depth | 10.2mm |
| Gross Weight | 4.8g |
| Width | 10.2mm |
| Mount Type | Through Hole |
| Series | R-78W-0.5 |
| Output Current | 500mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-3 |
| Load Regulation | 0.6 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 21098000h |
| Number of outputs | 1 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Input Voltage | 32V dc |
| Line Regulation | 0.4 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 6.5V |
| Output Voltage 1 | 5V dc |
Key Features
- Offers high efficiency of 94% reducing heat generation.
- Supports wide input voltage range from 6.5V to 32V DC for versatile applications.
- Compact dimensions with 11.5mm length, 10.2mm width, and 10.2mm depth for space-limited setups.
- Low ripple and noise of 20mV peak-to-peak ensures stable output.
- Operates reliably in harsh environments with temperature range from -40°C to 85°C.
- Designed for through-hole mounting with SIP-3 package type.
- Includes continuous short-circuit protection for device safety.
- Mean time between failure (MTBF) over 21 million hours for dependable performance.
Product Description
Recom R-78W5.0-0.5 Switching Regulator is a high-performance, through-hole mounted voltage regulator providing a stable 5V DC output with 500 mA current capacity and 2.5W power rating. Its small form factor and low profile design (11.5mm length, 10.2mm width, 10.2mm depth) allow integration into compact electronic circuits, especially where space is constrained.
This module is engineered to convert wide input DC voltages ranging from 6.5V up to 32V efficiently, boasting a high efficiency of 94% which reduces the need for bulky heat sinks and supports streamlined circuit layouts. Ripple and noise at 20mV peak-to-peak ensure that power output is stable and clean, suitable for sensitive electronic applications.
The regulator is rated for reliable operation in extreme environmental conditions, functioning between -40°C and +85°C, making it an excellent choice for outdoor or industrial applications. Safety is enhanced through continuous short-circuit protection, preventing damage from electrical faults.
Adopting the SIP-3 package and through-hole mounting facilitates straightforward installation and mechanical stability in various applications, including lighting, battery-powered projects, and cooling systems.
High 94% efficiency minimizes thermal dissipation. Wide operating voltage input range for flexible usage. Compact dimensions ideal for space-constrained designs. Low ripple ensures stable output voltage suitable for sensitive electronics.
Extended operating temperature range supports demanding environments. Robust continuous short-circuit protection enhances device safety. SIP-3 package and through-hole mount for ease of installation. High reliability with MTBF surpassing 21 million hours.
This switching regulator fits diverse industrial uses including power supplies for lighting, battery powered devices, and instrumentation. With origins in Taiwan, the Recom R-78W5.0-0.5 forms part of a trusted product line delivering consistent, efficient voltage regulation tailored for electronics development and manufacturing sectors.
Explore more high-quality Switching Regulators and power management components in EnvMart’s electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5V DC with a maximum output current of 500 mA.
It boasts a high efficiency of 94%, which helps reduce heat generation during operation.
The regulator supports a wide input voltage range from 6.5V to 32V DC, making it versatile for various applications.
The compact dimensions are 11.5mm in length, 10.2mm in width, and 10.2mm in depth.
It is designed for through-hole mounting and comes in a SIP-3 package type for easy installation.
It operates reliably in harsh environments with a temperature range from -40°C to 85°C.
It has a low ripple and noise specification of 20mV peak-to-peak, ensuring stable output.
This model includes continuous short-circuit protection to enhance device safety during operation.
The MTBF for this switching regulator is over 21 million hours, indicating high reliability.
It complies with RoHS standards, ensuring it meets environmental regulations.
It is suitable for various applications including power supplies for lighting, battery-powered devices, and instrumentation.
The load regulation is specified at 0.6%, ensuring consistent output under varying load conditions.
