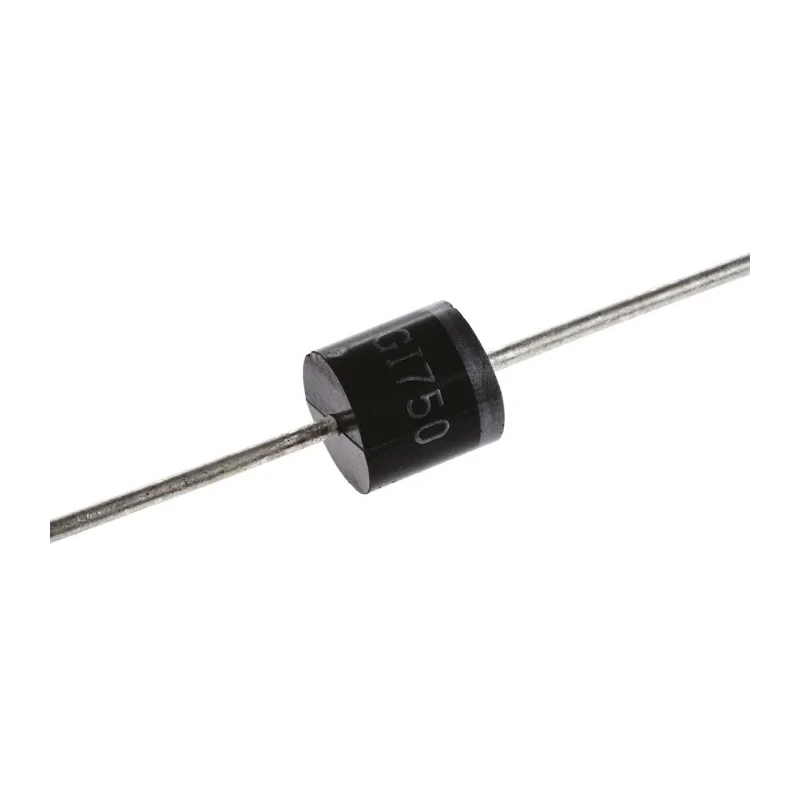

Vishay 50 V 6 A General Purpose Single Diode Through Hole P600 Package GI750-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | GI750-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | GI750 |
| Maximum Operating Temperature | 150°C |
| Package Type | P600 |
| Minimum Operating Temperature | -50°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 6A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 2.5μs |
Key Features
- Through-hole mounting style provides easy installation.
- Single diode configuration suitable for standard recovery applications.
- Maximum continuous forward current of 6 amperes ensures robust performance.
- Peak reverse repetitive voltage of 50 volts provides safety margin for operation.
- Compact package dimensions approximately 9.1 mm in length, width, height, and diameter.
- Low peak reverse current of 5 microamperes reduces leakage losses.
- High peak non-repetitive forward surge current of 400 amperes accommodates transient maneuvers.
- Standard recovery type with maximum forward voltage drop of 1.25 V for efficient conduction.
Product Description
Vishay GI750-E3/54 is a general purpose single diode designed for through-hole mounting in the industry-standard P600 package. This diode supports a maximum continuous forward current of 6 A and a peak reverse repetitive voltage rating of 50 V, making it suitable for various power rectification and switching applications.
The device exhibits a low peak reverse current of 5 µA and a maximum forward voltage drop of 1.25 V, contributing to energy efficiency in circuits. Its peak reverse recovery time of 2.5 µs ensures improved performance in switching operations.
Featuring compact dimensions of approximately 9.1 mm in length, width, height, and diameter, this diode fits well in space-constrained PCB layouts. It handles high peak non-repetitive surge currents up to 400 A, allowing it to withstand transient events effectively.
Operating reliably in extreme temperature conditions from -50°C to 150°C, the GI750-E3/54 meets the stringent automotive AEC-Q101 standard for quality and durability. Its RoHS compliance ensures environmental safety.
Through-hole mounting style provides easy installation. Single diode configuration suitable for standard recovery applications. Maximum continuous forward current of 6 amperes ensures robust performance. Peak reverse repetitive voltage of 50 volts provides safety margin for operation.
Compact package dimensions approximately 9.1 mm in length, width, height, and diameter. Low peak reverse current of 5 microamperes reduces leakage losses. High peak non-repetitive forward surge current of 400 amperes accommodates transient maneuvers.
Standard recovery type with maximum forward voltage drop of 1.25 V for efficient conduction. Wide operating temperature range from -50°C to 150°C ensures reliability. Automotive qualified to AEC-Q101 standard for enhanced durability.
This diode is ideal for use in semiconductor, electrical, and power electronics manufacturing, automotive electronics, and industrial equipment. It supports efficient power rectification and switching with high reliability.
Explore more Vishay semiconductor products in the Schottky Diodes & Rectifiers category at EnvMart for quality and performance.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the GI750-E3/54 is 6 amperes.
This diode has a peak reverse repetitive voltage rating of 50 volts.
The dimensions of this diode are approximately 9.1 mm in length, width, height, and diameter.
It can handle a peak non-repetitive forward surge current of up to 400 amperes.
The peak reverse current is 5 microamperes, which helps reduce leakage losses.
The maximum forward voltage drop is 1.25 volts.
It operates reliably in temperatures ranging from -50°C to 150°C.
This model uses a through-hole mounting style, which provides easy installation.
Yes, the GI750-E3/54 is RoHS compliant, ensuring environmental safety.
It meets the AEC-Q101 automotive standard for quality and durability.
The GI750-E3/54 has a single diode configuration suitable for standard recovery applications.
The peak reverse recovery time is 2.5 microseconds, which improves performance in switching operations.
