| Country of Origin | India |
|---|---|
| Diameter | 1.5mm |
| Brand | STMicroelectronics |
| Height | 1.62mm |
| Length | 3.4mm |
| Model | TMMBAT48FILM |
| Width | 1.62mm |
| Mount Type | Surface |
| Series | TMMBAT48 |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniMELF |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 350mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 25μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 7.5A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 10ns |

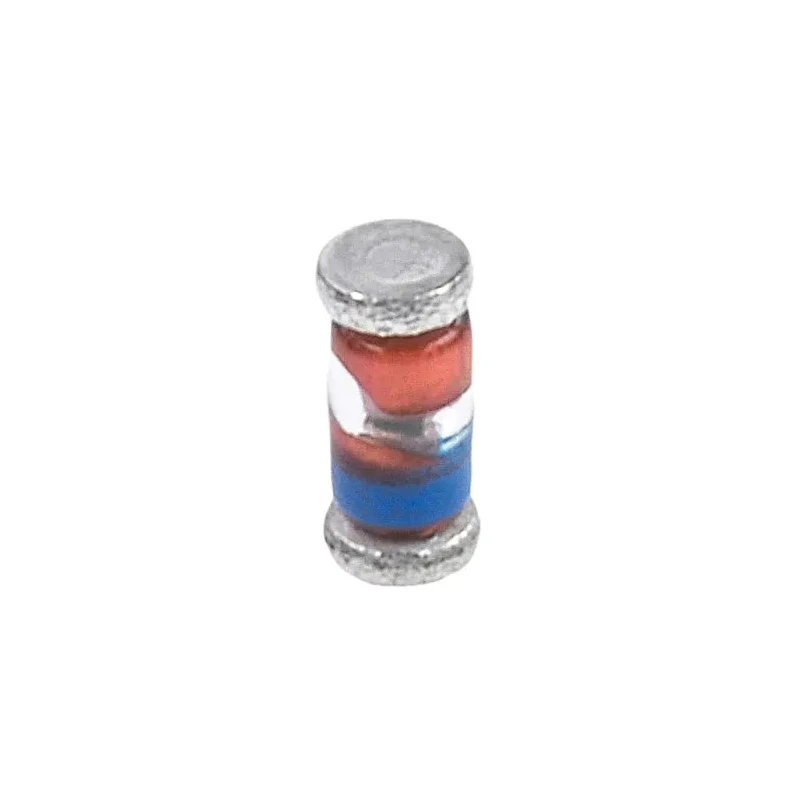

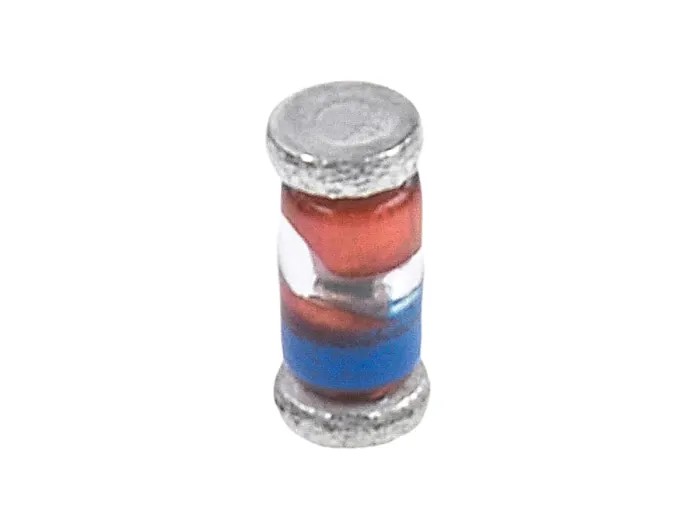

STMicroelectronics TMMBAT48FILM is a high-efficiency Schottky barrier diode designed for surface mounting in MiniMELF packages with a compact form factor measuring 3.4 mm in length and 1.62 mm in height and width. Operating at a maximum continuous forward current of 350 mA and with a peak reverse repetitive voltage of 40 V, this diode is suitable for a wide range of electronic applications requiring fast switching and low forward voltage drop.
The device offers an excellent balance of power efficiency and density, featuring a peak reverse recovery time of only 10 nanoseconds and a minimal peak reverse current of 25 microamperes, ensuring low leakage currents. Its operating temperature range spans from -65°C to 125°C, supporting robust performance across harsh industrial and commercial environments.
Packaged in a MiniMELF surface mount form factor, it is ideal for space-constrained designs in electronic component assemblies. This Schottky diode finds use in power supply regulation, switching circuits, and signal rectification where fast recovery and low forward voltage are critical.
Surface mount Schottky diode with MiniMELF package type. Maximum continuous forward current of 350 mA for reliable performance. Peak reverse repetitive voltage rated at 40 V. Fast peak reverse recovery time of 10 nanoseconds.
Compact dimensions: length 3.4 mm, height and width 1.62 mm. Extended temperature range from -65°C to 125°C for robust operation. Low peak reverse current of 25 microamperes ensuring minimal leakage. Designed for high efficiency and power density in electronic circuits.
This product is RoHS compliant, ensuring adherence to environmental standards. It is primarily used in industrial, commercial, and electronic manufacturing contexts where compact and efficient semiconductor diodes are essential.
