| Country of Origin | India |
|---|---|
| Diameter | 1.5mm |
| Brand | STMicroelectronics |
| Height | 1.62mm |
| Length | 3.4mm |
| Model | TMMBAT46FILM |
| Width | 1.62mm |
| Mount Type | Surface |
| Series | TMMBAT46 |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniMELF |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 150mA |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 350A |
| Maximum Forward Voltage Vf | 1V |

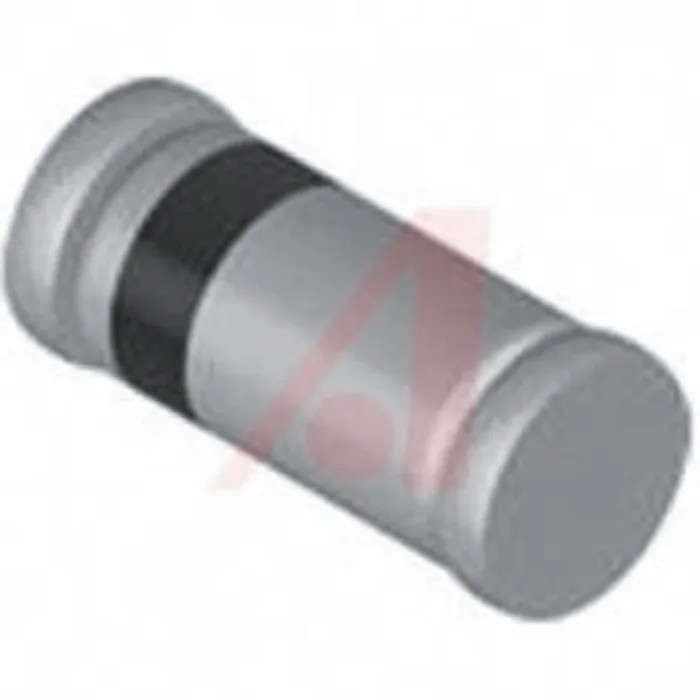

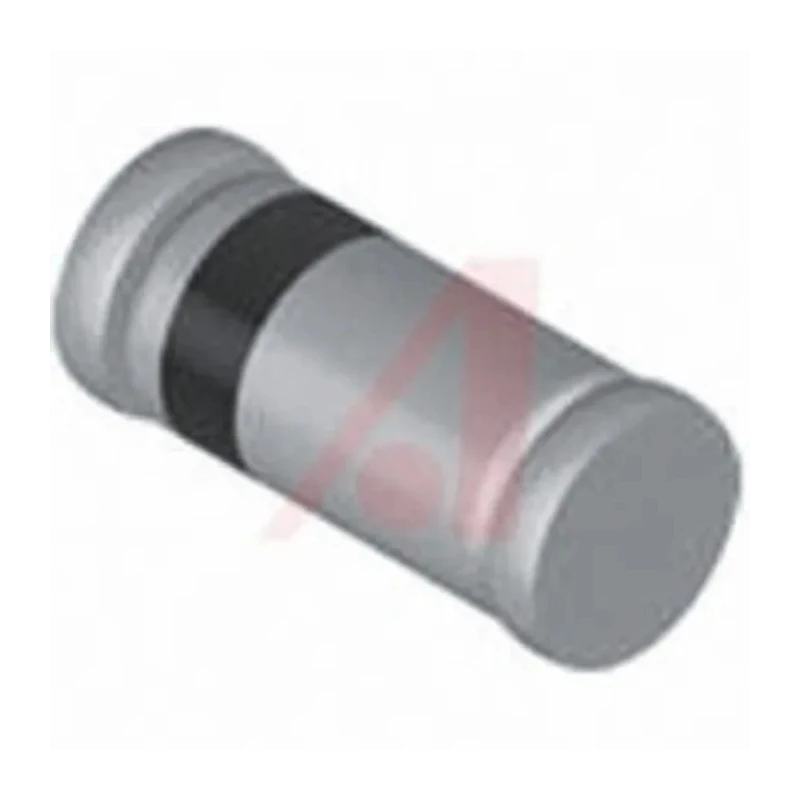

STMicroelectronics TMMBAT46FILM is a high-performance Schottky barrier diode offered in a MiniMELF surface mount package, designed to deliver efficient rectification and switching in electronic circuits requiring up to 150 mA continuous current at 100 V peak reverse voltage.
Its low forward voltage drop of 1 V enhances power efficiency and reduces energy loss in applications such as power supplies, switching regulators, and protection circuits. The device provides robust operation over a wide temperature range from -65°C to 125°C, ensuring reliable performance in diverse industrial, electronic, and consumer applications.
The diode features a single configuration with 2 pins, making it suitable for automated assembly processes and compact PCB designs. It can handle peak surge currents up to 350 A for short durations, supporting transient conditions without damage.
Physical dimensions are carefully optimized with a length of 3.4 mm, height and width of 1.62 mm, and a diameter of 1.5 mm, meeting miniaturization requirements in modern electronics.
This Schottky diode is ideal for use in industrial electronics, power management modules, telecommunications, and instrumentation where high efficiency and compact size are critical.
This diode features a MiniMELF package type suitable for compact electronic circuits. It supports a maximum continuous forward current of 150 mA. The peak reverse repetitive voltage is rated at 100 V. It has a low maximum forward voltage of 1 V for efficient conduction.
The diode operates reliably within a temperature range from -65°C to 125°C. Its peak non-repetitive forward surge current can withstand up to 350 A. The device includes 2 pins and a single diode configuration. Peak reverse current of only 5 microamperes ensures minimal leakage.
Compact dimensions include a length of 3.4 mm and height and width of 1.62 mm. The diode is designed without specific automotive standards or industry approvals. Explore other Schottky Diodes and rectifiers at EnvMart for comprehensive semiconductor solutions.
