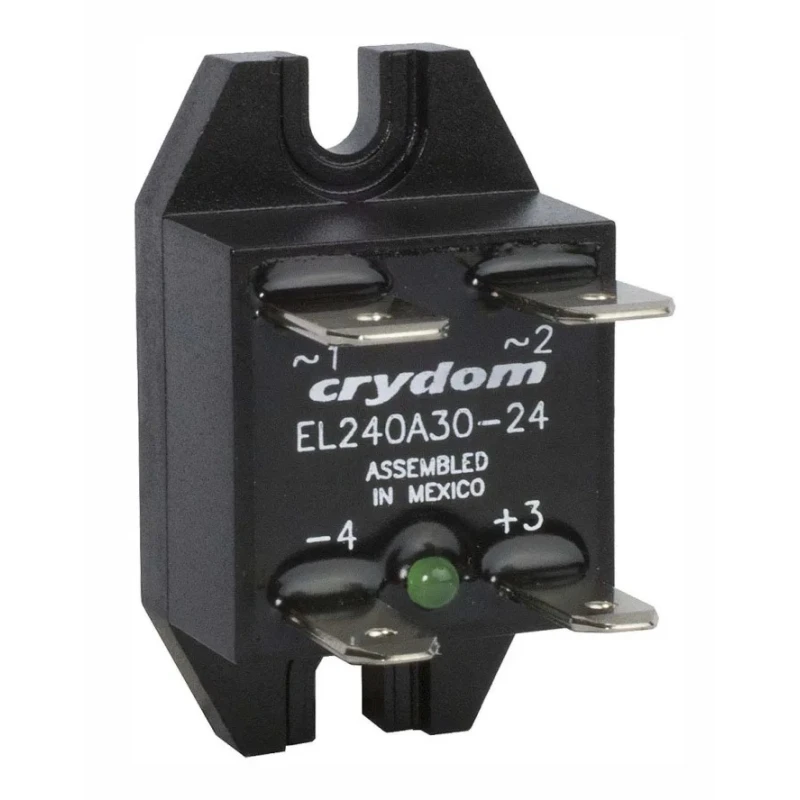

Crydom EL Series Solid State Relay Panel Mount 30A DC Load 280V AC Load 21-27V DC Control EL240A30R-24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Operating Temperature | -30 → +80 °C |
| Height | 14.3mm |
| Length | 36.6mm |
| Model | EL240A30R-24 |
| Mount Type | Panel |
| Series | EL |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Pad |
| Switching Function | Instantaneous Switching |
| Maximum Load Current | 30A dc |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 21V dc |
| Maximum Control Voltage | 27V dc |
| Off State Leakage Current | 0.1mArms |
| TUV, CSA, CE, IEC, EN 60950-1, IEC 61000-4-2, IEC 61000-4-4, UL, EN 62314 | 2006 |
Key Features
- Capable of handling a maximum load current of 30 A DC.
- Designed for panel mounting with pad-type terminals.
- Operates at load voltages between 24 V AC minimum and 280 V AC maximum.
- Control input voltage ranges from 21 V DC minimum to 27 V DC maximum.
- Operating temperature range from -30°C to +80°C.
- Instantaneous switching function suitable for resistive loads.
- Compact size with height of 14.3 mm and length of 36.6 mm.
- Standards approved include TUV, CSA, CE, IEC, UL, and RoHS compliance.
Product Description
The Crydom EL240A30R-24 is a high-quality solid state relay from Crydom's EL Series, designed for panel mount applications requiring reliable and efficient switching of DC loads up to 30 A and AC loads up to 280 V. It features pad-type terminals for secure installation and supports control voltages from 21 V to 27 V DC.
This relay operates with instantaneous switching function, making it ideal for resistive load applications requiring fast response times. It is built to withstand industrial operating environments with an operational temperature range from -30°C to 80°C.
The compact dimensions of 14.3 mm in height and 36.6 mm in length allow for space-saving installations in industrial control panels. The device complies with multiple international standards including TUV, CSA, CE, IEC, UL, and is RoHS compliant, ensuring quality and environmental safety.
Key technical attributes include a very low off-state leakage current of 0.1 mArms and minimal capacitance of 8 pF that enhances the relay's efficiency and longevity. The crydom EL Series solid state relays are designed for industrial automation, manufacturing equipment, HVAC systems, and other commercial applications requiring reliable DC switching solutions with high durability.
Capable of handling a maximum load current of 30 A DC. Designed for panel mounting with pad-type terminals. Operates at load voltages between 24 V AC minimum and 280 V AC maximum. Control input voltage ranges from 21 V DC minimum to 27 V DC maximum.
Operating temperature range from -30°C to +80°C. Instantaneous switching function suitable for resistive loads. Compact size with height of 14.3 mm and length of 36.6 mm. Standards approved include TUV, CSA, CE, IEC, UL, and RoHS compliance.
Low off-state leakage current of 0.1 mArms and capacitance of 8 pF ensures efficient performance.
This Crydom solid state relay is an excellent choice for industrial automation systems, electrical control panels, HVAC controls, and other applications that require reliable solid-state switching. Explore more Solid State Relays and related components in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum load current of 30 A DC.
It operates within an ambient temperature range of -30°C to +80°C.
It operates at load voltages between 24 V AC minimum and 280 V AC maximum, with a control input voltage range of 21 V DC to 27 V DC.
This unit features an instantaneous switching function, making it suitable for resistive load applications.
The relay has a height of 14.3 mm and a length of 36.6 mm, allowing for compact installations.
It is designed with pad-type terminals for secure panel mounting.
The off-state leakage current is rated at 0.1 mArms, which enhances its efficiency.
It is approved by TUV, CSA, CE, IEC, UL, and is RoHS compliant, ensuring adherence to multiple international standards.
This solid state relay is suitable for industrial automation, electrical control panels, and HVAC systems.
The capacitance of this model is 8 pF, which contributes to its operational efficiency.
It is designed for panel mounting, making it easy to integrate into control systems.
This model is part of Crydom's EL Series, which is known for reliable solid state switching solutions.
