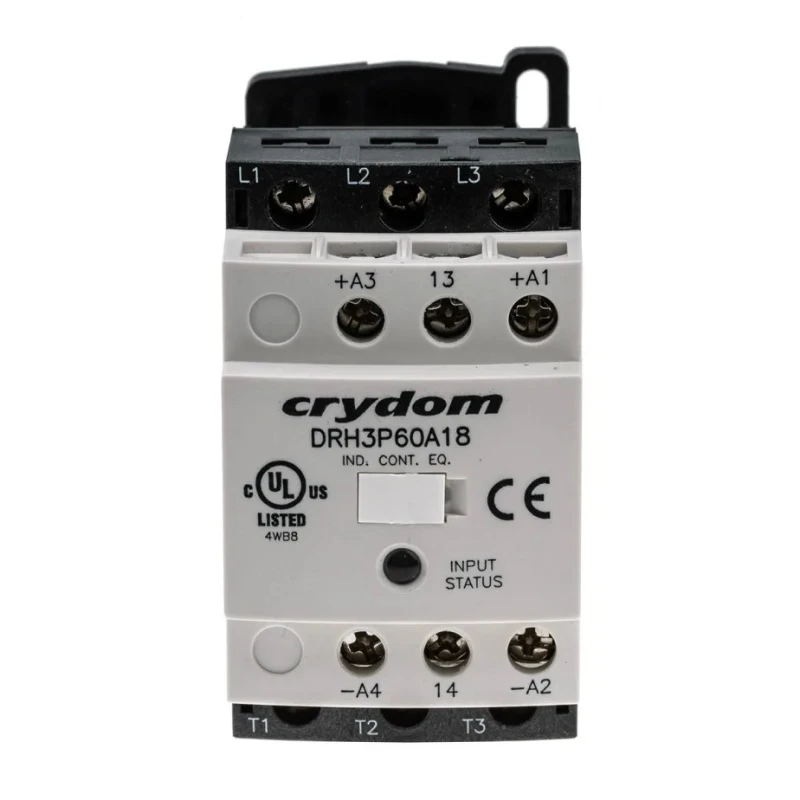

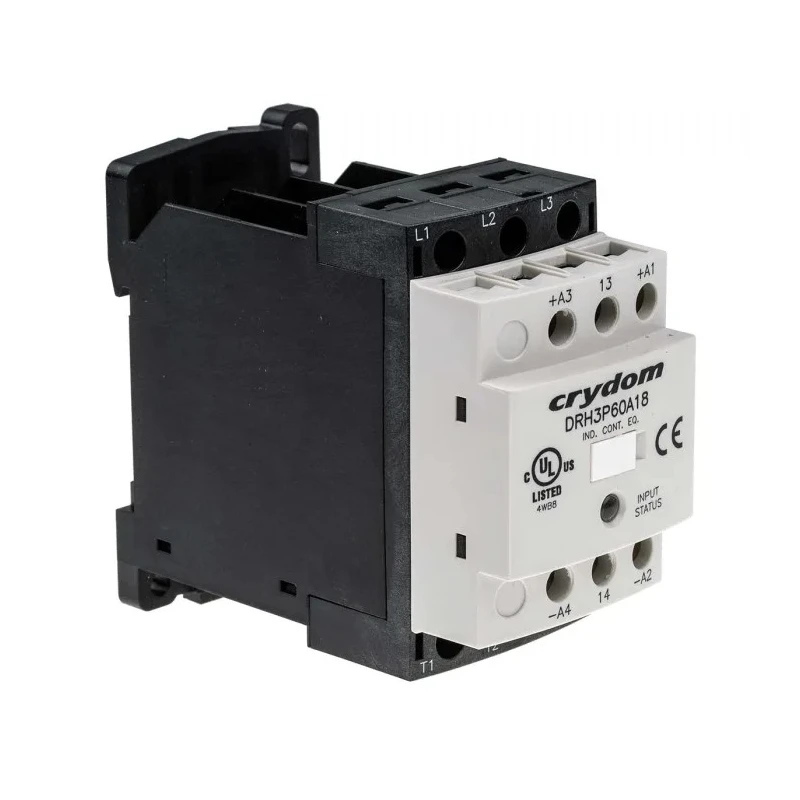

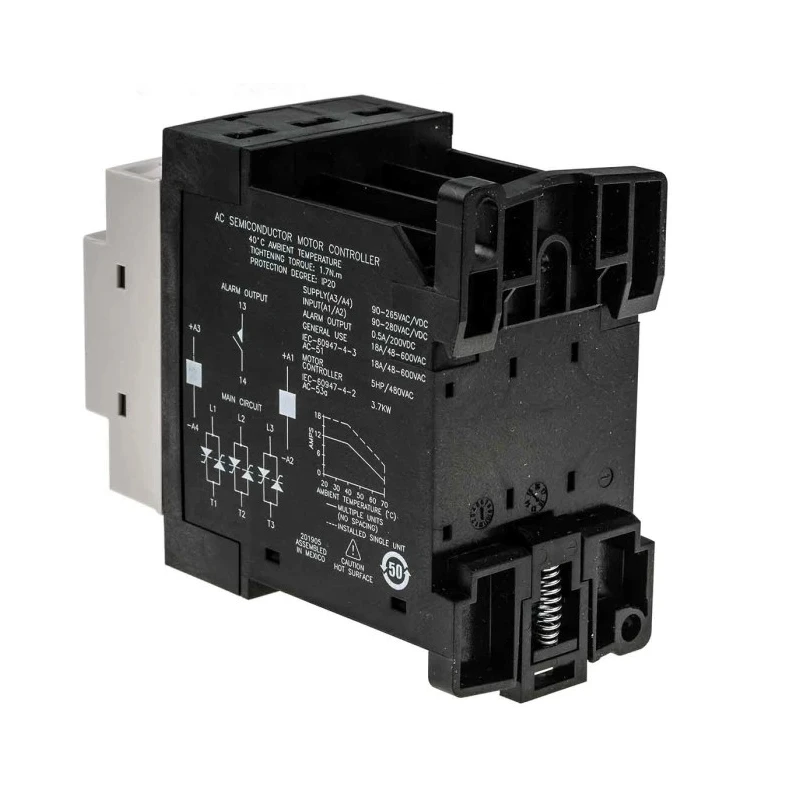

Crydom DRH Solid State Relay 3-Pole 18A, DIN Rail, NO, 48V AC Control, 200V DC, 120V AC DRH3P60A18
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Function | Motor Control |
| Length | 46mm |
| Model | DRH3P60A18 |
| Depth | 96mm |
| Width | 27mm |
| Mount Type | DIN Rail |
| Series | DRH |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Contact Voltage | 200, 120V dc |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 1 |
| Operational Current Ie | 3mA |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Three-pole solid state relay designed for industrial motor and heating control.
- Rated for up to 18A operational current and suitable for 200V DC and 120V AC loads.
- DIN rail mountable for convenient integration in automation systems.
- NO (Normally Open) contact configuration with 48V AC control circuit input.
- Features over-temperature and over-voltage protection with alarm output.
- Enclosed heat sink improves cooling and thermal performance during operation.
- Instantaneous and zero voltage turn-on output with multicolour LED status indication.
- Internal fan control through thermistor and microprocessor to optimize cooling.
Product Description
The Crydom DRH Series DRH3P60A18 is a three-pole solid state relay designed for industrial motor and heating control in automation and power systems. It provides robust switching for up to 18A operational current with support for 200V DC and 120V AC loads, making it suitable for demanding applications such as controlling three-phase motors or high-power heating circuits.
This relay features DIN rail mounting, allowing quick and reliable installation within control panels. Its NO (Normally Open) contact configuration and 48V AC control input ensure versatile integration with typical industrial control circuits.
The DRH3P60A18 relay incorporates advanced protection mechanisms, including over-temperature and over-voltage safeguards, and an alarm output to alert operators in case of abnormal conditions. The enclosed heat sink design enhances airflow, improving the relay's thermal handling and reliability.
Switching performance is further optimized by instantaneous and zero voltage turn-on output, reducing electrical noise and switching losses. A multicolour LED with input status and alarm indication keeps users informed of relay operation and fault conditions. The fan is controllable via a thermistor and microprocessor, ensuring effective cooling and extended relay life.
Its high switching life makes the DRH Series an ideal replacement for electromechanical contactors, especially in commercial and industrial environments where frequent switching is required. Compliance with CCC, CE, CSA, EN/IEC, RoHS and UL standards guarantees safe and reliable operation worldwide.
Wiring is simplified using screw terminals, and the compact relay (96mm depth, 46mm length, 27mm width) fits conveniently into standard control panels. Typical applications include industrial motor control, commercial heating systems, and automation solutions in manufacturing, HVAC and power distribution environments.
Browse more Solid State Relay solutions and automation components in the Crydom DRH Series at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Crydom DRH3P60A18 solid state relay is rated for a maximum operational current of 18A.
It is suitable for controlling loads of 200V DC and 120V AC, making it versatile for various applications.
This solid state relay operates with a control circuit voltage of 48V AC.
This model is designed for DIN rail mounting, allowing for easy installation in control panels.
The dimensions of the relay are 46mm in length, 27mm in width, and 96mm in depth.
The operational temperature range for this model is from -10°C to 70°C.
Yes, it includes over-temperature and over-voltage protection, as well as an alarm output for abnormal conditions.
Cooling is enhanced by an enclosed heat sink design and is optimized through an internal fan controlled by a thermistor and microprocessor.
This model features a Normally Open (NO) contact configuration with three poles.
Wiring is simplified using screw terminals for easy connection.
It is suitable for industrial motor control, commercial heating systems, and automation solutions in various environments.
The relay complies with several standards, including CCC, CE, CSA, EN/IEC, RoHS, and UL, ensuring safe operation.
