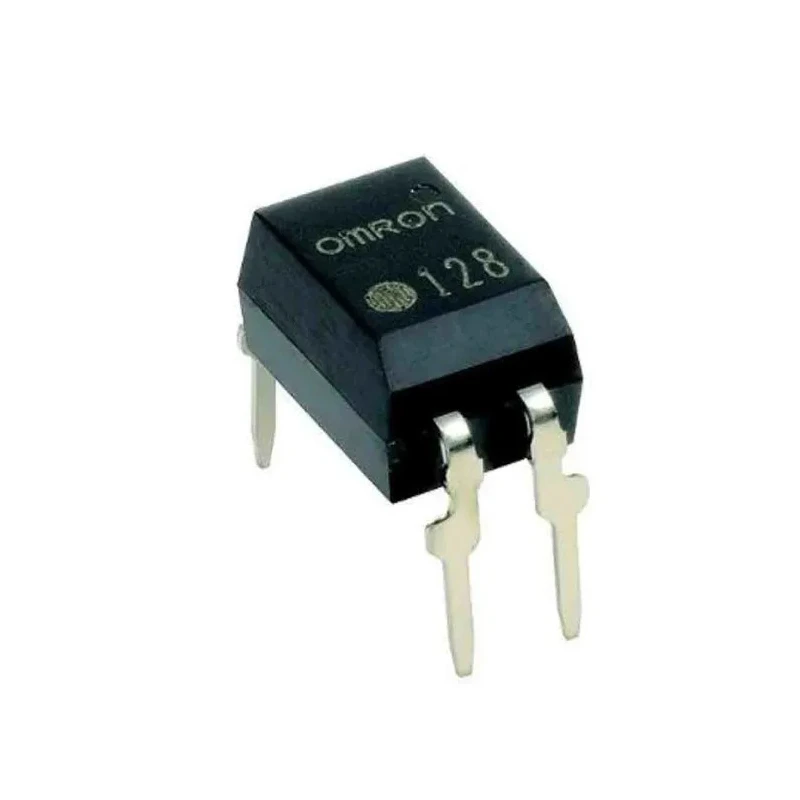

Omron Solid State Relay, PCB Mount, 2A, 40V Load, MOSFET Output, DIP-4 G3VM

The Omron G3VM-41AY1 solid state relay features a PCB mount design, making it ideal for integration into modern electronic circuits that require compact, reliable switching. With a maximum load current of 2A and maximum load voltage of 40V, it suits applications needing moderate power control, such as test equipment, industrial control, and security devices.

Equipped with a high-performance MOSFET output, the relay offers fast, noise-free switching. The DIP-4 package helps engineers save board space, allowing for dense placement in assemblies. The relay supports a wide ambient operating temperature range, from -40°C to +85°C, ensuring reliable performance in diverse environments.

The SPST (Single Pole Single Throw) contact configuration and off-state leakage current of just 1μA ensure safe isolation and prevent undesired currents. With a capacitance of 450pF, it maintains excellent electrical characteristics for signal integrity. The 2000mΩ on-state resistance enables low power consumption.

RoHS and UL compliance support international standards for safety and environment, and its country of origin is Japan, an assurance of precision engineering. The relay is well-suited for use in electrical power units, measurement systems, and security devices where reliable silent control is required.

Further advantages include ready compatibility with PCB design standards and optimized LED forward current reduction rate for LED-driven applications. The relay's dielectric strength between input and output is 5000Vrms, protecting connected devices from electrical surges.

Explore Omron’s full range of Solid State Relays via EnvMart for advanced switching solutions in electronic assemblies and industrial controls.
