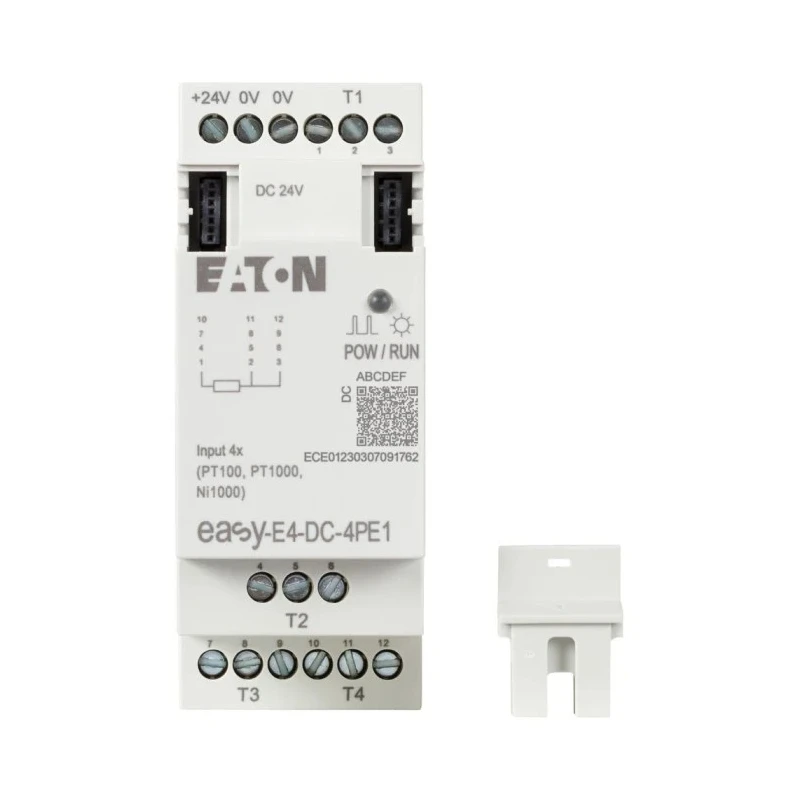

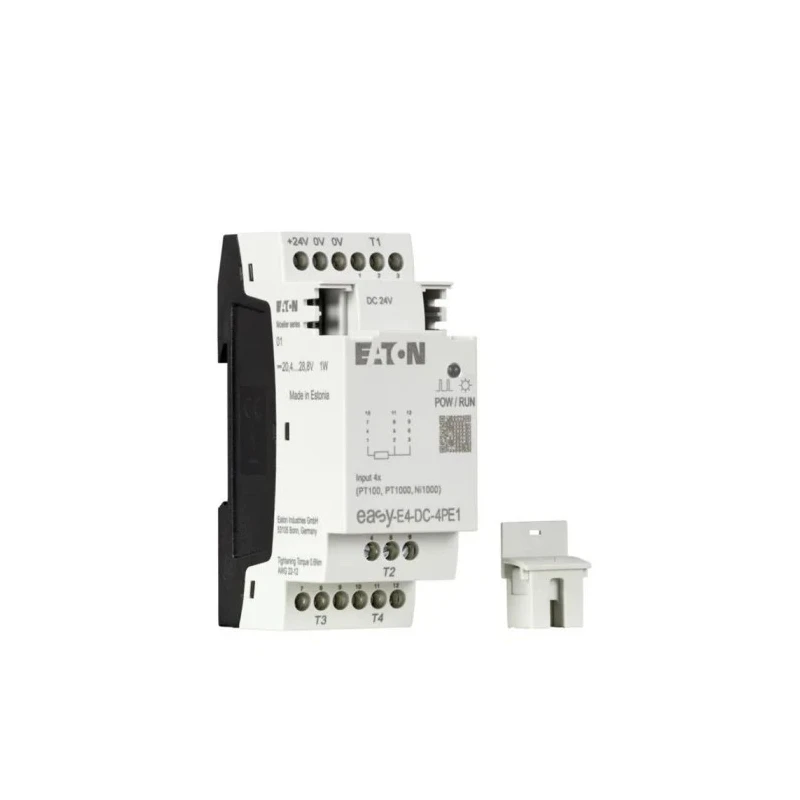

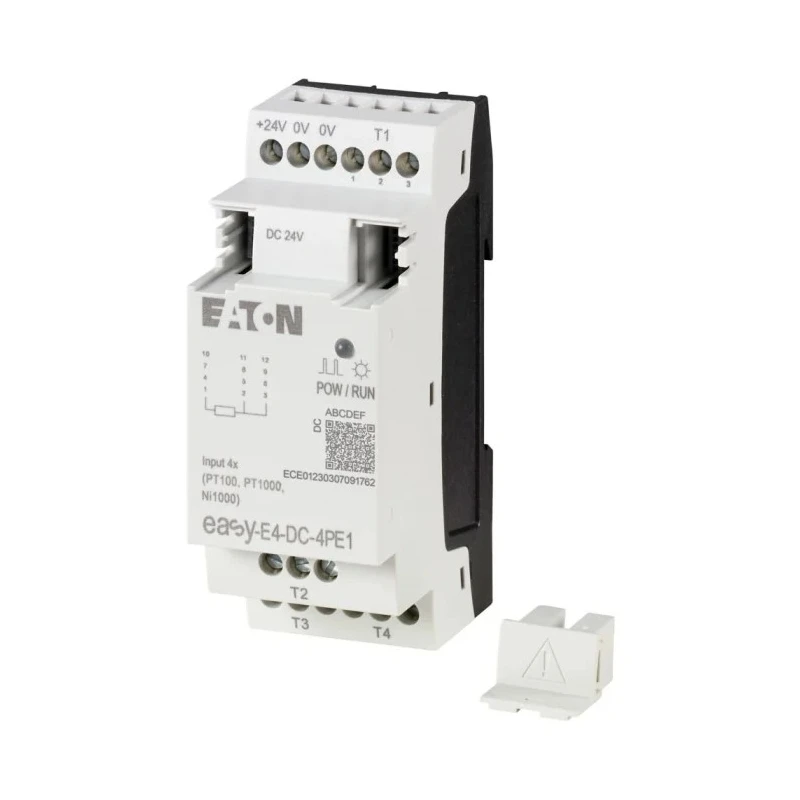

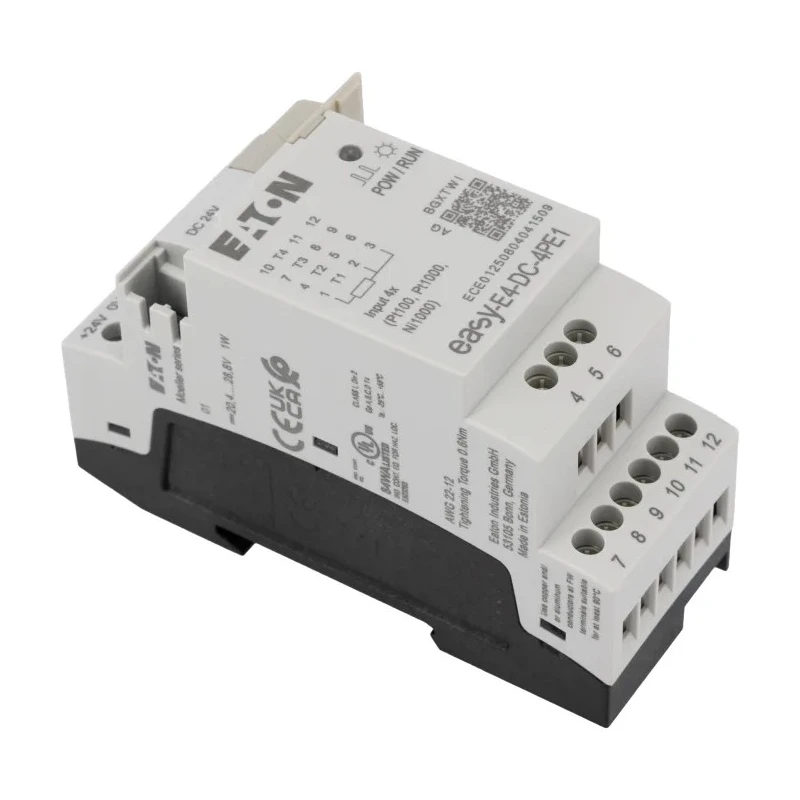

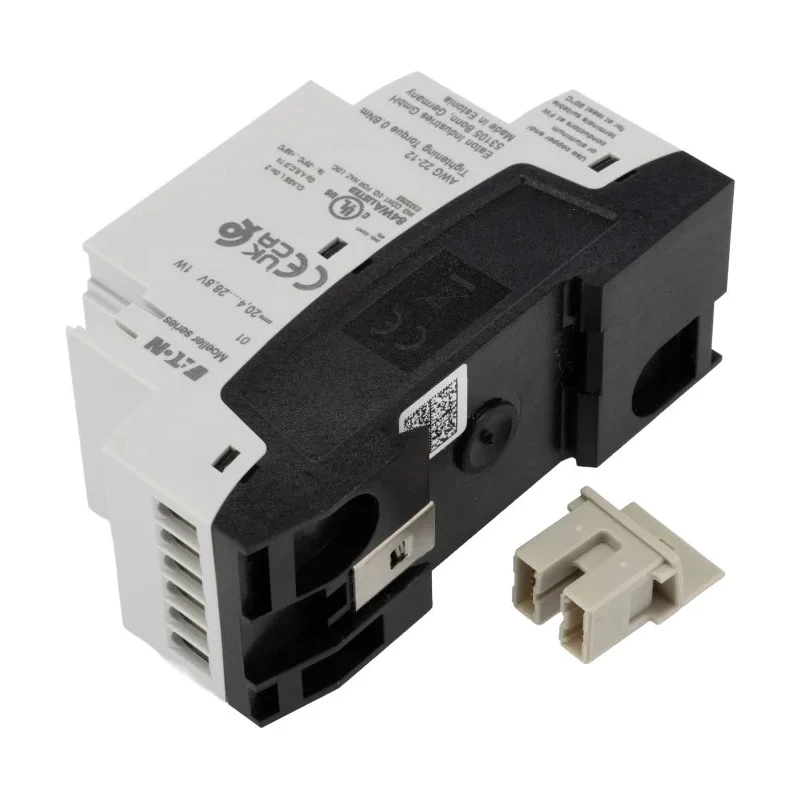

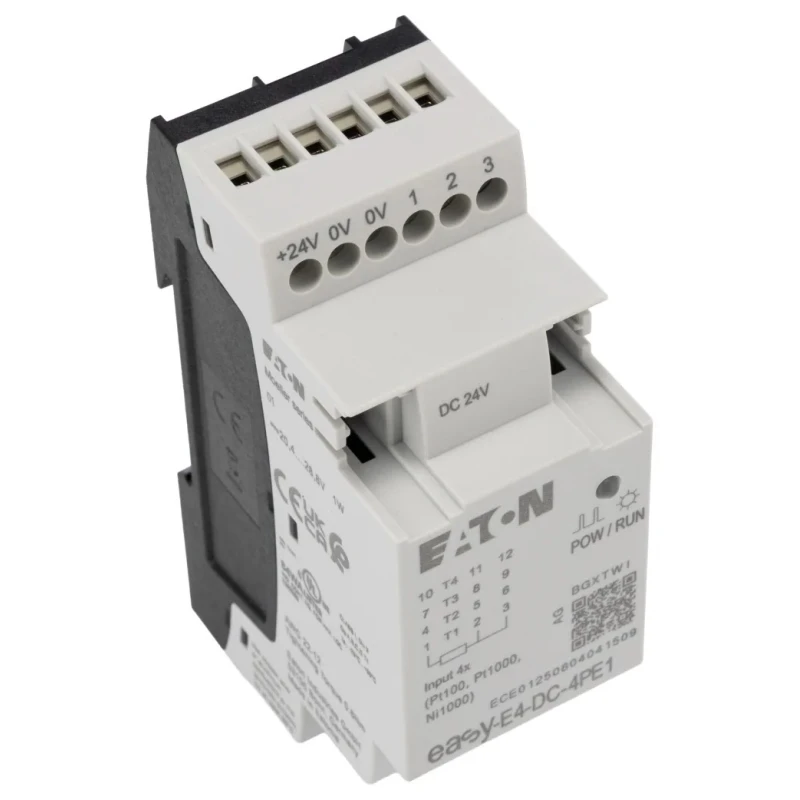

Eaton EasyE4 Series Module 4-Input Analogue Input 24V DC DIN Rail Mount EASYE4

Free Delivery in India | Lowest Global Shipping Charges

Eaton EasyE4 Series Module 4-Input Analogue Input 24V DC DIN Rail Mount EASYE4

Name: Eaton EasyE4 Series Module 4-Input Analogue Input 24V DC DIN Rail Mount EASYE4
Brand: Eaton
SKU: 158326
Price: 214.69 USD
Availability: InStock



Category Logic Module Brand Eaton Condition New

Specifications

Country of Origin	Estonia
Brand	Eaton
Length	43.8mm
Model	EasyE4
Depth	110mm
Width	57.6mm
Mount Type	DIN Rail
Number of inputs	4
Series	easyE4
Input Type	Analogue
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Interfaces	language for easy graphical system design
Supply Voltage	24V dc
Communication Port Type	Ethernet
Programming Language Used	FBD

Key Features

The module offers four analogue inputs for sensor and instrument connectivity.
It supports FBD programming language for easy graphical system design.
Compact dimensions of 43.8mm length, 57.6mm width, and 110mm depth enable efficient space utilization.
Designed for operating temperatures from -25°C to +55°C, suitable for various industrial environments.
The device includes battery backup and a display for advanced control and monitoring.
Equipped with an Ethernet communication port for seamless device networking.
The DIN rail mount allows quick and secure installation in control cabinets.
Can be mounted horizontally or vertically per installation needs.

Product Description

Eaton EASYE4 4-Input Analogue Input Module is engineered as a versatile extension module for the EasyE4 PLC series, enabling enhanced input capabilities with four analogue input channels. It operates on a 24V DC supply voltage and mounts easily on DIN rails for industrial panel integration.

This module supports the FBD (Function Block Diagram) programming language, allowing engineers to design complex control systems graphically. Its compact size with dimensions 43.8mm (L) x 57.6mm (W) x 110mm (D) makes it suitable for installations where space is constrained.

Designed to operate reliably in harsh industrial environments, it withstands temperatures ranging from -25°C to 55°C. The inclusion of battery backup and an integrated display ensures control continuity and real-time status monitoring during operation.

Featuring an Ethernet communication port, this module facilitates smooth integration and communication with other industrial devices and the wider network infrastructure. It meets stringent industrial standards such as EN 61000-6-3 and IEC 61131-2, guaranteeing performance and safety.

The module accepts four analogue sensor inputs to expand PLC I/O capability. Supports FBD programming for efficient system configuration. Compact and lightweight for flexible mounting options. Battery backup supports data retention during power interruptions.

Ethernet port provides high-speed data and communication access. Durable design suitable for extended industrial temperature ranges. DIN rail mounting suitable for standard industrial enclosures. Complies with multiple IEC and EN standards for electrical safety and electromagnetic compatibility.

Display included for operational feedback and diagnostics.

This module is ideal for use in industrial automation, manufacturing process control, HVAC systems, and other applications requiring expansion of programmable logic controller inputs with analogue signals. It ensures precise data acquisition and seamless integration within automated systems.

For advanced control and system customization, the Eaton EasyE4 series modules offer reliable, flexible solutions tailored for industrial requirements. Explore a comprehensive range of industrial automation modules and control gear in the Electronics & Electricals category on EnvMart.
