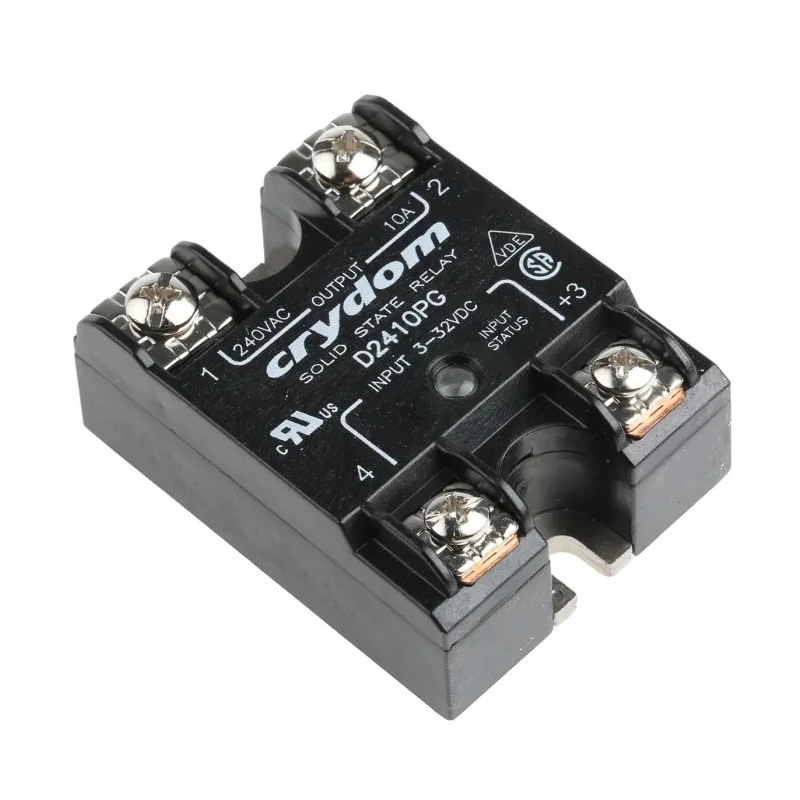

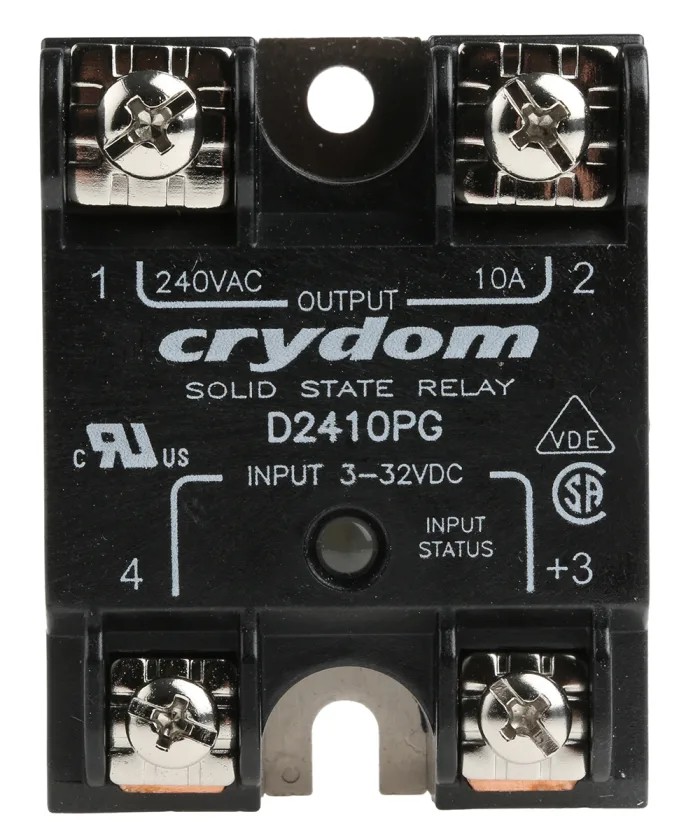

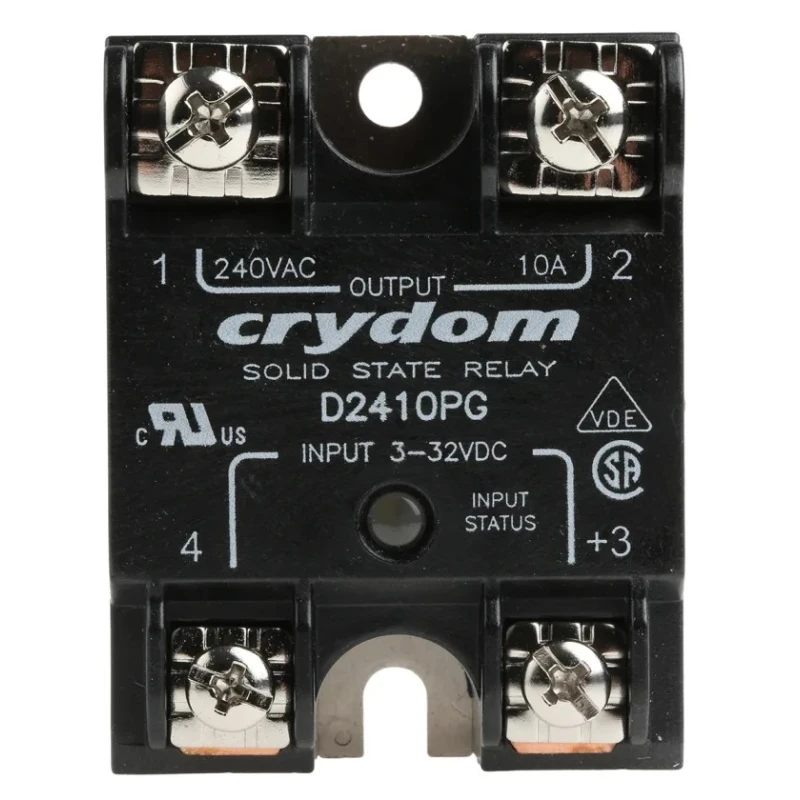

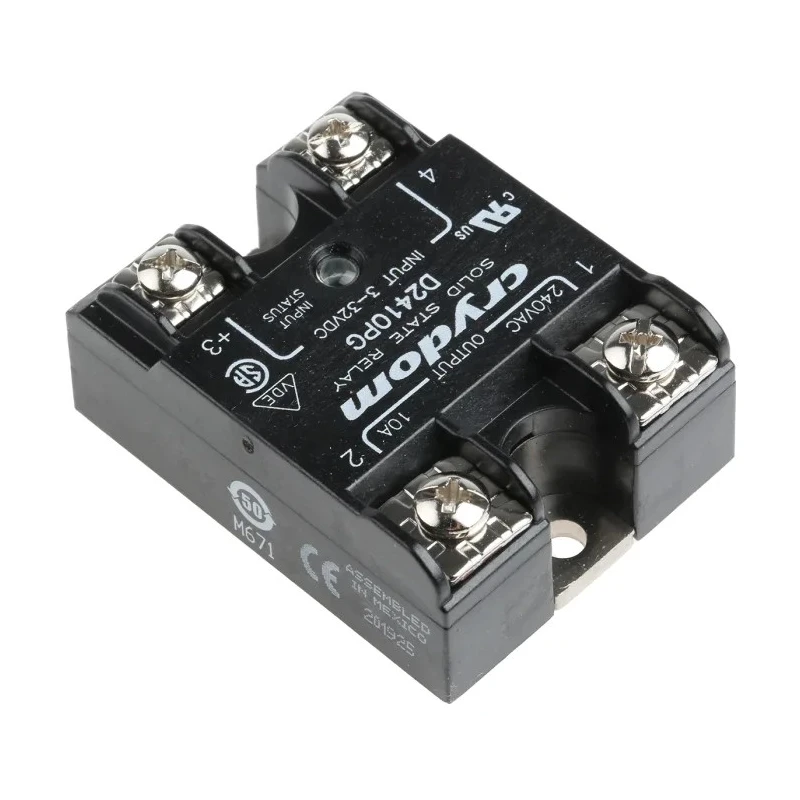

Crydom 1 Series Solid State Relay, 10 A Load, Panel Mount, 280 Vrms Load, 3 to 32V DC Control D2410PG
Specifications
| Country of Origin | China |
|---|---|
| Brand | Crydom |
| Height | 22.9mm |
| Length | 58.4mm |
| Model | D2410PG |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | 1 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 10A |
| Standards/Approvals | CSA, RoHS, UR |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 10mA |
Key Features
- Supports a maximum load current of 10 amperes for high load capacity.
- Panel mounting type with screw terminal for secure and easy installation.
- Operates with zero cross switching function to reduce electrical noise.
- Wide operating temperature range from -40°C to 80°C for harsh environments.
- Equipped with LED indicator for input status monitoring.
- Output type is SCR ensuring robust solid state switching performance.
- Protected by IP20 rating housing with anti-rotation barriers for durability.
- Includes safety and quality approvals like CSA, RoHS, and UR certifications.
Product Description
Crydom D2410PG 1 Series Solid State Relay is engineered for industrial and commercial applications requiring reliable switching of AC loads up to 10 amperes. It features a panel mount design with screw terminals to ensure secure and maintenance-free connection. The relay operates with a maximum load voltage of 280 Vrms and supports a control voltage range of 3 to 32V DC, making it versatile for various control systems.
Designed to withstand demanding environments, this solid state relay operates reliably within a wide temperature range from -40°C to 80°C. The zero cross switching function minimizes electrical noise during switching operations, enhancing the longevity and performance of connected equipment such as motor controls, transformers, and compressors.
The compact dimensions and anti-rotation barriers ensure easy installation on panels with secure fitment. The LED indicator facilitates quick input status verification, reducing troubleshooting time.
Maximum load current of 10 amperes for handling high power circuits effectively. Panel mount with screw terminal design for reliable mechanical and electrical connections. Zero cross switching reduces electrical disturbances and extends equipment life.
Wide operating temperature range from -40°C to 80°C suitable for industrial environments. Compact size enhances integration in control panels and electrical assemblies. LED indicator simplifies monitoring of relay status in operation.
Output type SCR provides noiseless and efficient solid-state switching. Protection rating IP20 ensures safety against solid object ingress in controlled environments. Certified with CSA, RoHS, and UR for compliance with safety and environmental standards.
This Crydom Solid State Relay is ideal for applications in industrial automation, HVAC systems, manufacturing equipment, and electrical controls requiring robust and reliable switching solutions. Its durable construction and wide voltage ranges facilitate use in a broad array of industrial, commercial, and laboratory settings.
Explore more electrical and automation components in our Electronics & Electricals catalog for compatible accessories and control devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 10 amperes, allowing it to handle high power circuits effectively.
This solid state relay supports a control voltage range of 3 to 32V DC, making it versatile for various control systems.
It operates reliably within a wide temperature range from -40°C to 80°C, suitable for harsh environments.
The relay utilizes a zero cross switching function, which minimizes electrical noise during switching operations.

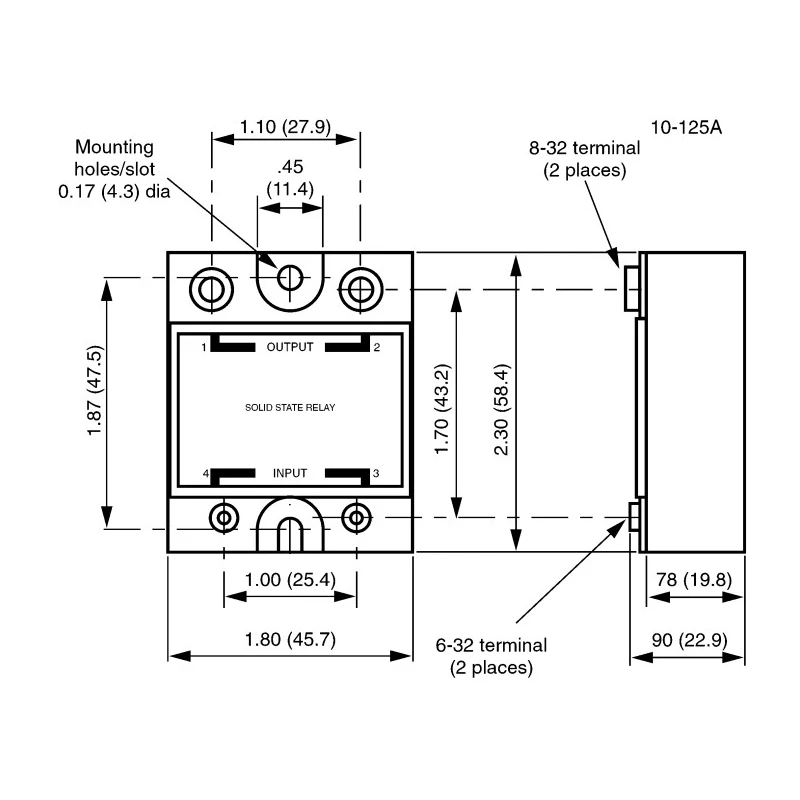

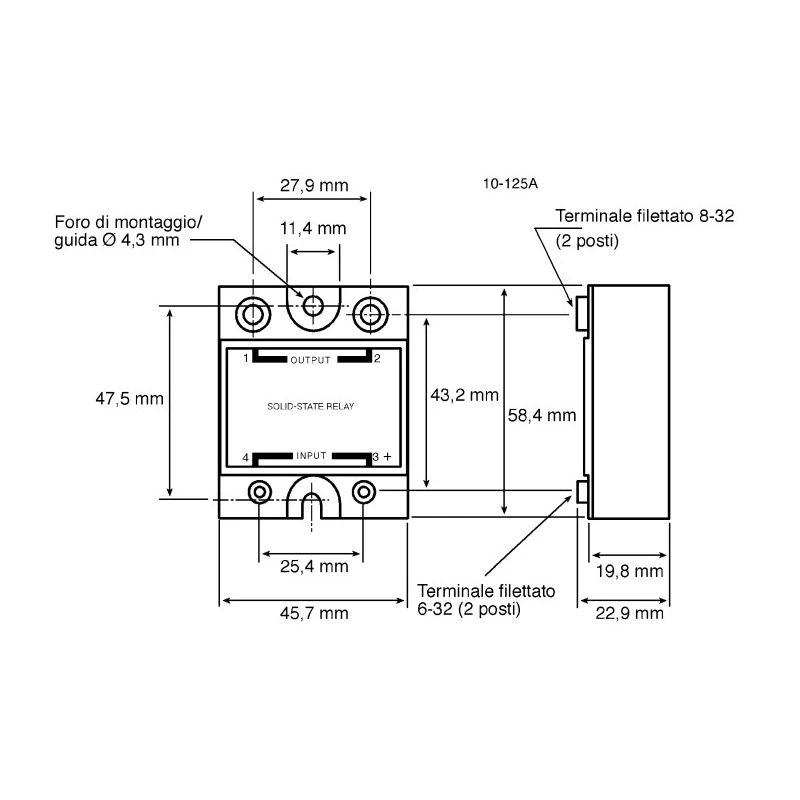

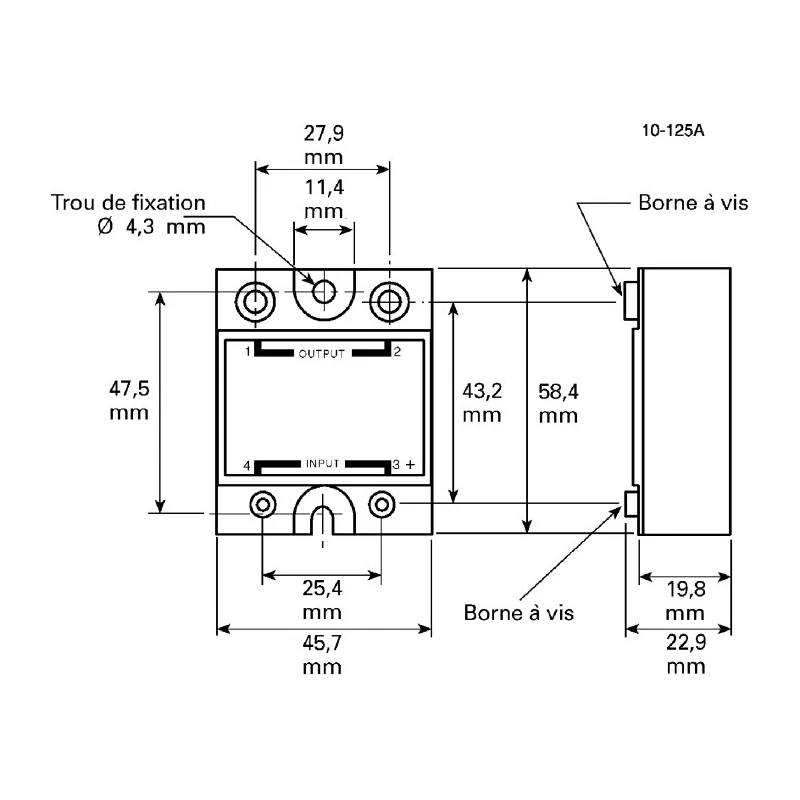

The dimensions of this model are 58.4mm in length, 22.6mm in width, and 22.9mm in height.
This relay has an IP20 rating, ensuring protection against solid object ingress in controlled environments.
The output type of this relay is SCR, which ensures robust solid state switching performance.
It features a panel mount design with screw terminals for secure and maintenance-free connection.
This model is certified with CSA, RoHS, and UR, ensuring compliance with safety and environmental standards.
The minimum load voltage for this solid state relay is 24V AC.
The off state leakage current for this model is 10mA.
This solid state relay is ideal for applications in industrial automation, HVAC systems, and manufacturing equipment requiring reliable switching solutions.
