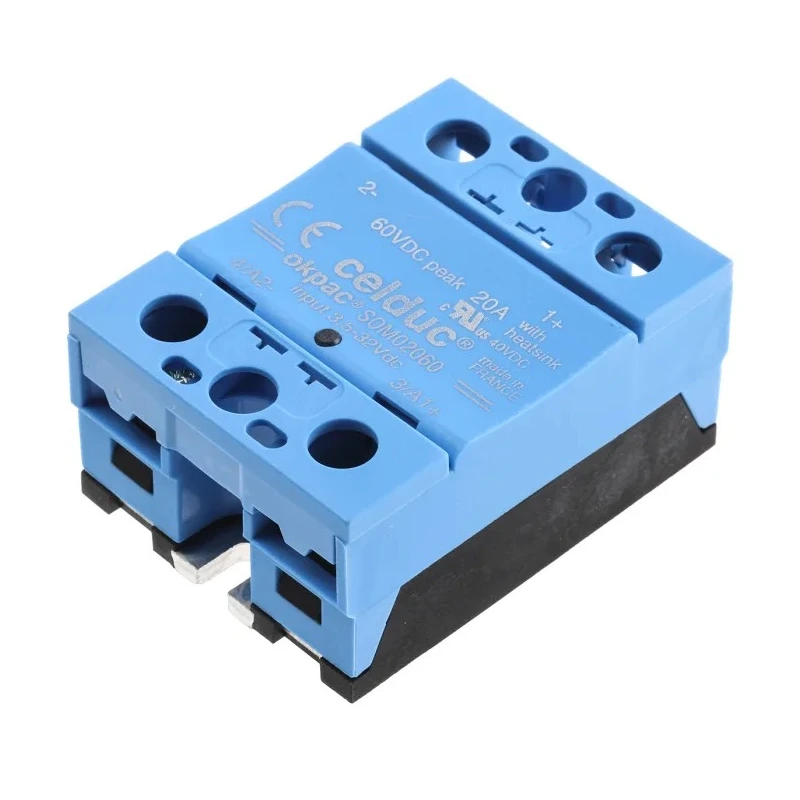

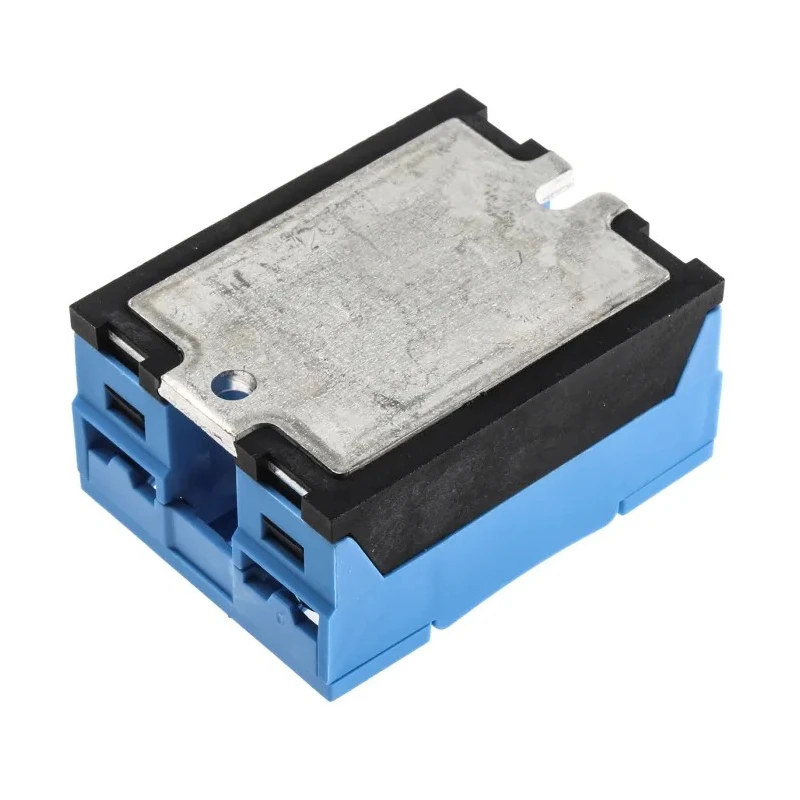

Celduc Solid State Relay, 20 A Load, 40 V dc Load, 32 V dc Control, DIN Rail Mount SOM02060

Free Delivery in India | Lowest Global Shipping Charges

Celduc Solid State Relay, 20 A Load, 40 V dc Load, 32 V dc Control, DIN Rail Mount SOM02060

Name: Celduc Solid State Relay, 20 A Load, 40 V dc Load, 32 V dc Control, DIN Rail Mount SOM02060
Brand: Celduc
SKU: 204444
Price: 93.87 USD
Availability: InStock



Category Solid State Relays Brand Celduc Condition New

Specifications

Country of Origin	France
Brand	Celduc
Height	30mm
Length	45mm
Model	SOM02060
IP Rating	IP20
Width	44.8mm
Mount Type	DIN Rail
Output type	Triac
Series	SOM
Maximum Operating Temperature	90°C
Contact Configuration	SPST
Minimum Operating Temperature	-25°C
Terminal type	Screw
Switching Function	Zero Cross Switching
Maximum Load Current	20A
Standards/Approvals	RoHS, cURus, CSA, CE, EAC, VDE, UKCA
Maximum Load Voltage	40V dc
Minimum Load Voltage	5V dc
Minimum Control Voltage	3.5V dc
Maximum Control Voltage	32V dc
Off State Leakage Current	1mA
On State Resistance	16mΩ
Protection Index	IP20

Key Features

MOSFET technology provides very low on-state resistance for efficient switching.
Control input is protected against reverse polarity to prevent damage.
This solid state relay features zero cross switching for reduced electrical noise.
Compact dimensions with 45 mm length, 44.8 mm width, and 30 mm height enable easy DIN rail mounting.
Operating temperature range from -25°C to 90°C suitable for industrial environments.
Contact configuration is single pole single throw (SPST) with screw terminals for reliable connections.
Protection index IP20 ensures basic protection against solid objects and limited contact access.
Off state leakage current is minimal at 1 mA, reducing power loss.

Product Description

Celduc SOM02060 solid state relay is a high-quality MOSFET-based relay designed for switching continuous DC voltages up to 40 V with a maximum load current of 20 A. Its compact design and DIN rail mounting make it ideal for seamless integration in electrical control panels and industrial automation systems.

This relay features a control voltage range from 3.5 V to 32 V DC and includes zero cross switching functionality to reduce electrical noise during switching cycles. The control input is protected against reverse polarity, enhancing device reliability and safety.

The relay is constructed with screw terminal connections for secure and easy wiring. Its IP20 protection class offers sufficient protection for indoor industrial environments where exposure to dust and accidental contact is limited.

Operating temperature ranges from -25°C to 90°C, ensuring stable performance under a variety of application conditions. The device’s on-state resistance is very low at 16 mΩ, improving energy efficiency and reducing heat loss.

Off-state leakage current is limited to 1 mA, minimizing energy consumption when the relay is not activated.

Celduc SOM02060 complies with stringent international standards including RoHS, cURus, CSA, CE, EAC, VDE, and UKCA, signifying quality and safety in global markets. Manufactured in France, it guarantees exceptional construction and durability.

MOSFET technology for efficient DC switching. Low on-state resistance reduces power loss. Zero cross switching minimizes electrical noise. Control input protected against reverse polarity. Compact DIN rail mounting with screw terminals.

Wide operating temperature range from -25°C to 90°C. IP20 protection suitable for industrial environments. Minimal off-state leakage current of 1 mA. Complies with major international safety and quality standards. Manufactured in France for reliability.

This solid state relay is widely used in industrial automation, manufacturing electrical control systems, HVAC controls, and other applications requiring efficient and reliable DC load switching. It fits perfectly within professional electronics and electrical engineering workflows.
