Crydom 1 Series Solid State Relay 125A Load, Panel Mount, 280 Vrms Load, 32V Control D24125PG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 22.9mm |
| Length | 58.4mm |
| Model | D24125PG |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | 1 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 125A |
| Standards/Approvals | UR, RoHS, CSA |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 10mA |
Key Features
- Operates over a wide temperature range from -40°C to 80°C ensuring durability.
- Flame-retardant housing enhances safety in fire conditions.
- Screw terminal design secures conductors firmly for stable connections.
- Base plate included for corrosion-resistant and robust panel mounting.
- Low off-state leakage current of 10mA improves energy efficiency.
- Compact dimensions of 58.4mm x 22.9mm x 22.6mm facilitate easy installation.
- Capacitance rated at 8pF for superior electrical performance.
- Output type SCR improves operational reliability with no moving parts.
Product Description
Crydom D24125PG 1 Series Solid State Relay is a high-performance relay designed for industrial electrical control applications. It supports a maximum load current of 125A and can handle load voltages up to 280 Vrms, making it suitable for heavy-duty electrical circuits such as factory heating and lighting systems. The panel-mount design with the included aluminium base plate ensures secure and corrosion-resistant installation.
The relay features a flame-retardant housing for enhanced safety and operates efficiently over a broad temperature range from -40°C to 80°C. Its screw terminal connections provide reliable and stable conductor attachment, essential for long-term industrial operation. The zero cross switching function enables swift switching, reducing electrical noise and stress on connected equipment.
With an off-state leakage current of only 10mA and a capacitance of 8pF, this relay ensures minimal power loss and improved energy efficiency. The SCR output type guarantees quiet, motionless operation with an extended service life, beneficial for reducing maintenance demands in manufacturing and industrial automation settings.
Wide operating temperature ensures suitability for demanding industrial environments. Flame-retardant housing improves safety during fire incidents. Screw terminals enable secure and maintenance-free connections. Includes corrosion-resistant aluminium base plate for panel mounting.
Low off-state leakage current for energy savings. Compact dimensions for versatility in control panel designs. Complies with UR, RoHS, and CSA standards for quality and safety.
This solid state relay is ideal for industrial automation, electrical panel control, and manufacturing process control applications where reliable and silent switching is critical. Explore more Crydom Solid State Relays and related automation components on EnvMart to suit diverse control and protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 125A, making it suitable for heavy-duty electrical circuits.
It can handle load voltages up to 280 Vrms and a minimum load voltage of 24V AC.
This model features an SCR output type, which ensures quiet and motionless operation.
The control voltage for this relay ranges from a minimum of 3V DC to a maximum of 32V.

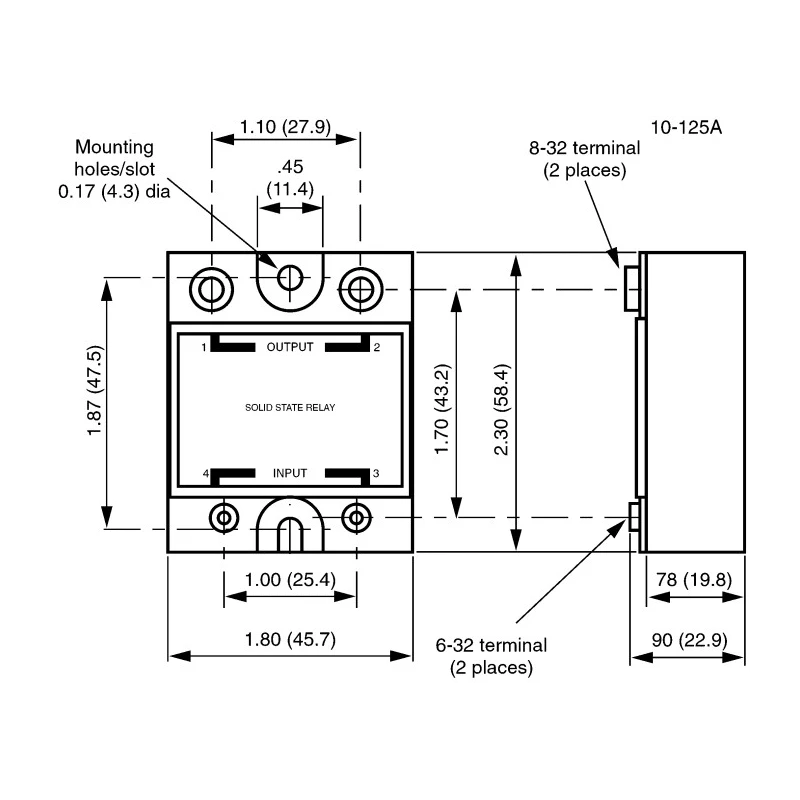

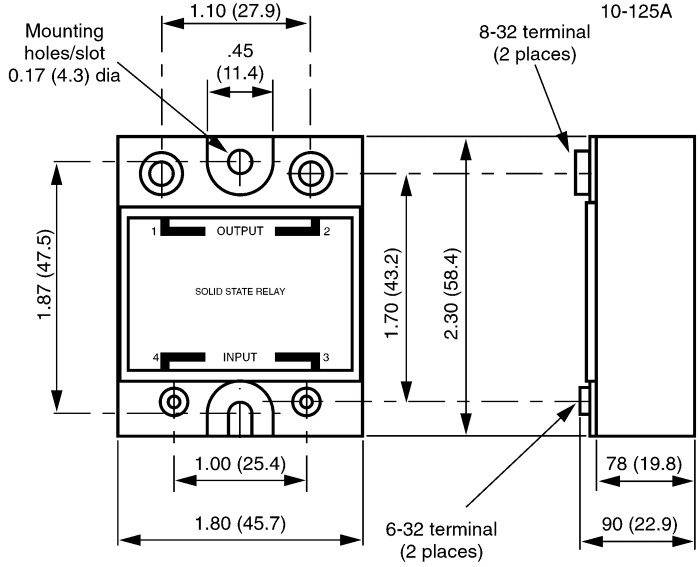

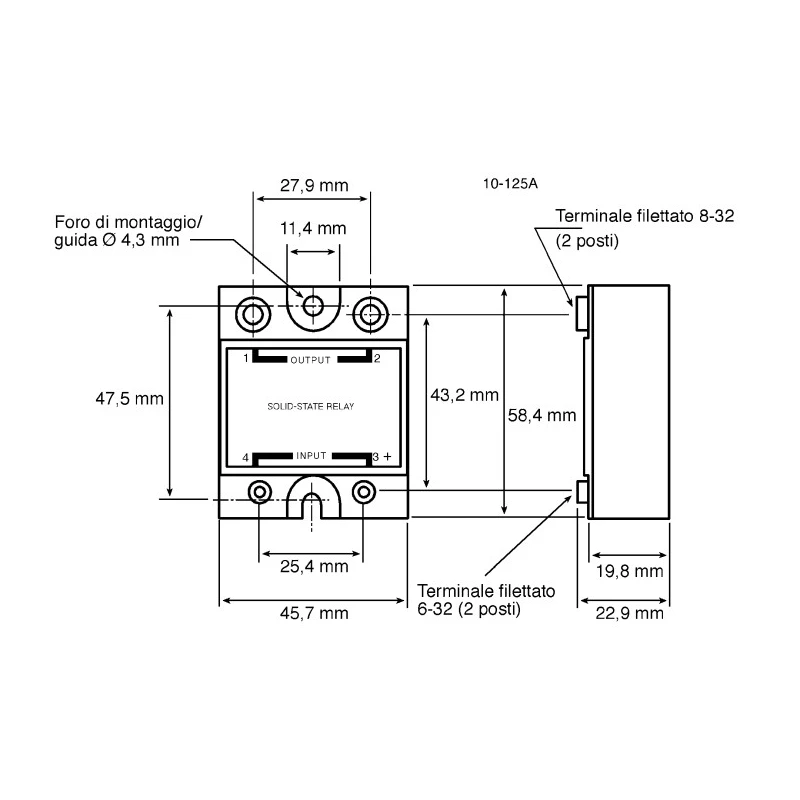

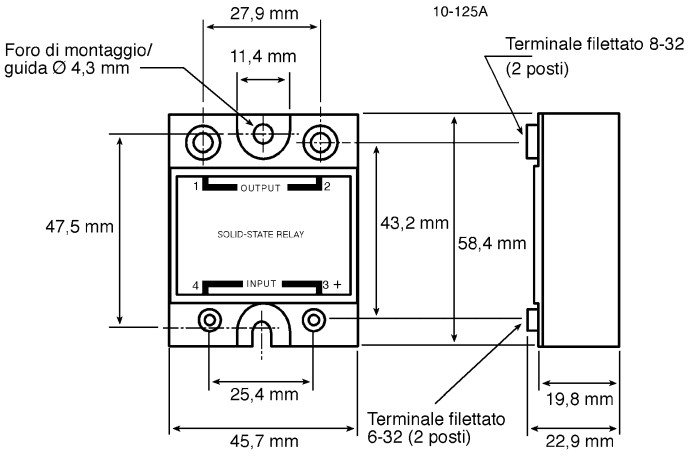

The relay has compact dimensions of 58.4mm in length, 22.6mm in width, and 22.9mm in height.
It operates over a wide temperature range from -40°C to 80°C, suitable for demanding industrial environments.
This relay is designed for panel mounting and includes a corrosion-resistant aluminium base plate for secure installation.
It uses screw terminal connections, which provide reliable and stable attachment of conductors.
The off-state leakage current is 10mA, which helps improve energy efficiency.
This relay complies with UR, RoHS, and CSA standards for quality and safety.
It features zero cross switching, which reduces electrical noise and stress on connected equipment.
The capacitance rating for this relay is 8pF, contributing to its superior electrical performance.
