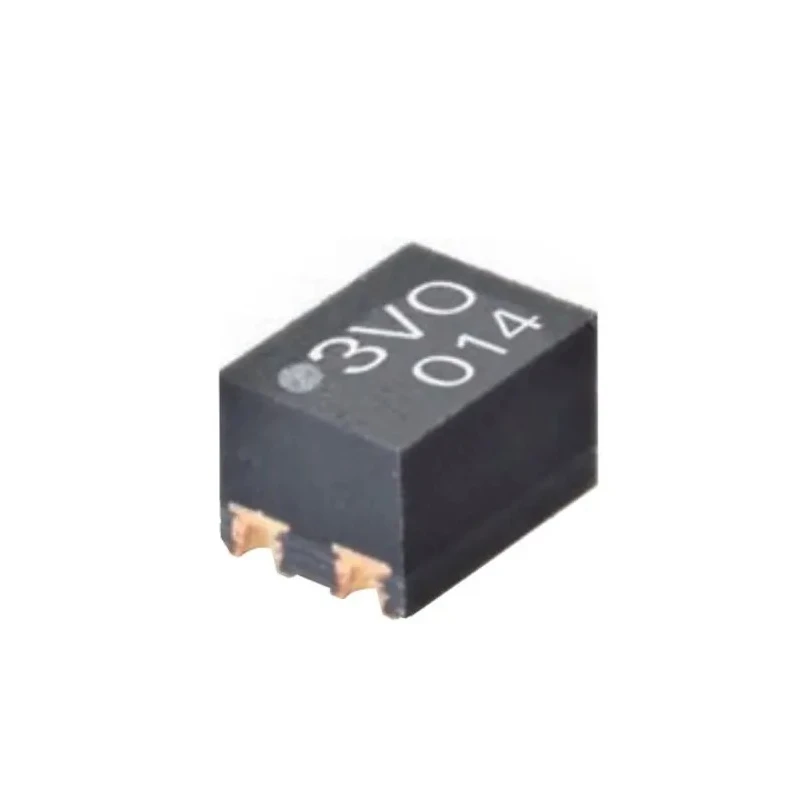

Omron Solid State Relay Surface Mount 1.5 A Load 30 V Load G3VM

Omron G3VM series solid state relay is designed with a compact S-VSON(L) package and incorporates a current-limiting internal resistor on the input side. It uses MOSFET technology to provide silent, high-speed switching with minimal switching noise, eliminating mechanical contact wear typical in electromechanical relays.

This relay supports a maximum load current of 1.5 amperes and a maximum load voltage of 30 volts, suitable for precise control in electronic circuits. The SPST contact configuration enables AC/DC switching capabilities.

The relay withstands operating temperatures between -40°C and 125°C, making it reliable for industrial, laboratory, and automation applications. Its low off-state leakage current of just 1 μA and low capacitance of 120 pF further contribute to energy efficiency and signal integrity in sensitive electronics.

Featuring a surface mount PCB terminal type, the G3VM relay is optimal for modern surface mount manufacturing processes and compact PCB layouts. Its MOSFET output type reduces electromagnetic interference, ensuring clean signal transmission.

Manufactured in Japan, these relays comply with RoHS standards, reflecting environmental considerations.

Typical applications include industrial automation systems, instrumentation, process controls, HVAC systems, and other environments requiring reliable solid state switching with high isolation between input and output circuits.

Extremely low off-state leakage current of 1 microampere for energy-efficient switching. Capacitance rated at 120 picofarads allows for stable operation in sensitive circuits. Operates reliably from -40°C up to 125°C for diverse environments.

MOSFET output type ensures silent switching without mechanical contacts. Single-pole single-throw (SPST) contact configuration suitable for AC/DC switching. High isolation with 2,500 Vrms standard input-output insulation enhances safety.

Standard RoHS compliance ensures environmental safety. Compact surface mount package ideal for space-saving PCB designs. Explore our extensive range of Omron Solid State Relays and components at EnvMart to source reliable products for your industrial and commercial electrical applications.
