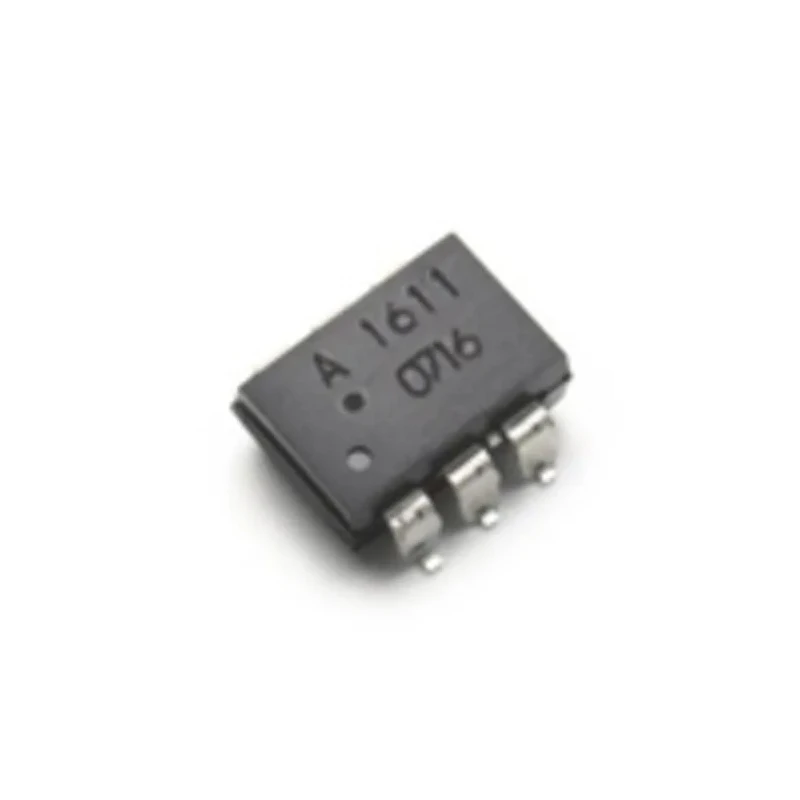

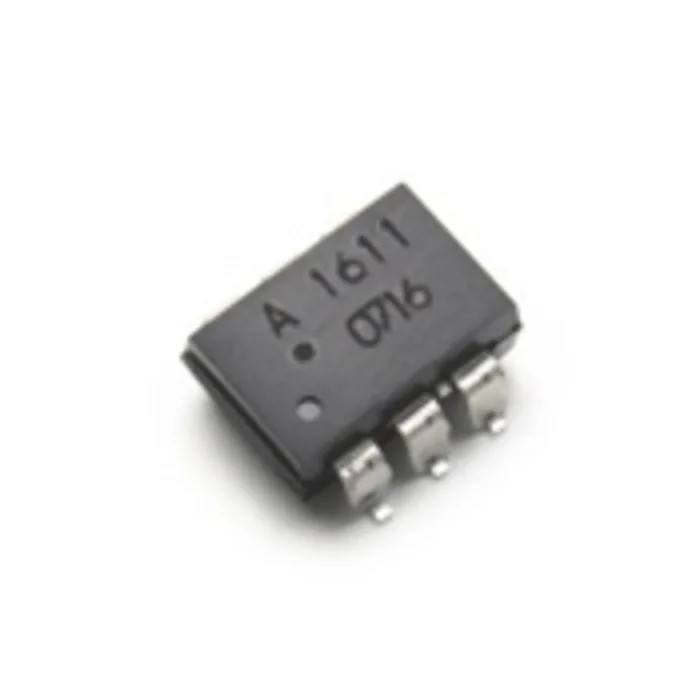

Broadcom Solid State Relay ASSR-1611-501E, 2.5A Max Load, Surface Mount, 60V Load, 1.7V Control Voltage
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 4.2mm |
| Length | 9.7mm |
| Model | ASSR-1611-501E |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | ASSR-1611 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Capacitance | 0.8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Switching Function | AC Switching |
| Maximum Load Current | 2.5A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | -60V |
| Minimum Control Voltage | 1.1V |
| Maximum Control Voltage | 1.7V |
| Off State Leakage Current | 5μA |
| Low Input Current | CMOS Compatibility |
| Low On-Resistance | 20mΩ Typical for DC-only, 65mΩ Typical for AC/DC |
Key Features
- Supports maximum load current of 2.5A for dependable operation.
- Surface mount relay with compact dimensions for PCB integration.
- Handles load voltages up to 60V with MOSFET output type.
- Control voltage range from 1.1V to 1.7V, CMOS compatibility.
- Low on-resistance enables efficient switching with minimal heat.
- Bi-directional signal switching and high speed operation.
- Wide operating temperature range from -40°C to 85°C for robust performance.
- RoHS compliant for environmentally responsible manufacturing.
Product Description
Broadcom ASSR-1611-501E is a high-performance solid state relay designed for demanding industrial environments, offering reliable switching of both AC and DC loads up to a maximum of 2.5A. The relay is engineered in a compact surface mount package, enabling seamless integration onto PCBs for control and automation systems. With a maximum load voltage of 60V and a MOSFET output type, it ensures efficient and safe load management in various industrial and laboratory applications.
This relay utilizes an AlGaAs infrared LED input stage optically coupled to a high-voltage output detector circuit, combining advanced photovoltaic diode arrays and intelligent driver circuitry to switch MOSFETs at high speed. The ASSR-1611-501E is a solid-state replacement for single-pole, normally-open electromechanical relays, providing a bi-directional signal switch for robust and fail-safe control with minimal mechanical wear.
Maximum load current: 2.5A for dependable switching. Surface mount design with compact 9.7mm length and 4.2mm height for flexible installation. Load voltage capability up to 60V and control voltage from 1.1V to 1.7V, supporting CMOS logic levels.
Low typical on-resistance (20mΩ for DC, 65mΩ for AC/DC) reduces power loss and thermal stress. Fast switching times: 3.2ms (Ton) and 0.1ms (Toff) typical for quick response. Wide operating temperature range (-40°C to 85°C) ensures reliability across harsh industrial conditions.
PCB terminal interface simplifies integration into automated manufacturing, process control, HVAC, and laboratory equipment. Industrial applications include signal switching, motor control, automation, safety systems, and remote switching in environments where mechanical relays may not be suitable.
ASSR-1611-501E solid state relay is RoHS compliant, supporting environmentally responsible manufacturing practices. The relay is well-suited for electronic control panels, programmable logic controllers, and industrial process systems requiring fast, reliable, and low-maintenance switching.
Explore more Broadcom Solid State Relays and automation components in the Electronics & Electricals category at EnvMart for advanced industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 2.5A, ensuring dependable operation.
It can handle load voltages up to 60V, making it suitable for various applications.
The control voltage range for this unit is from 1.1V to 1.7V, supporting CMOS compatibility.
This model has a length of 9.7mm and a height of 4.2mm, allowing for compact PCB integration.
It utilizes a MOSFET output type for efficient load management.
The switching function of this model is AC switching, suitable for various industrial applications.
The low on-resistance is typically 20mΩ for DC and 65mΩ for AC/DC, which reduces power loss and thermal stress.
It operates effectively within a wide temperature range of -40°C to 85°C, suitable for harsh environments.
This model features a PCB terminal type, simplifying integration into various systems.
Yes, it is RoHS compliant, supporting environmentally responsible manufacturing practices.
This solid state relay is suitable for applications such as signal switching, motor control, automation, and safety systems.
