Crydom 1 Series Solid State Relay Panel Mount 110A Load, 280 Vrms Load, 32V Control D24110PG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 22.9mm |
| Length | 58.4mm |
| Model | D24110PG |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | 1 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 110A |
| Standards/Approvals | CSA, RoHS, UR |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 10mA |
| Input to output Capacitance | 8pF |
Key Features
- Designed for zero cross switching to reduce electrical noise.
- Operates within a temperature range of -40°C to 80°C for versatile industrial use.
- Equipped with screw terminals for secure panel mounting.
- Includes built-in overvoltage protection for enhanced reliability.
- Features low off state leakage current of 10mA and input-output capacitance of 8pF.
- Compliant with CSA, RoHS, and UR standards for safety and quality.
- Compact dimensions of 22.9mm height, 22.6mm width, and 58.4mm length support tight installation spaces.
- Microprocessor compatible input enabling advanced control and monitoring.
Product Description
Crydom D24110PG is a 1 Series Solid State Relay designed for panel mount installation with a maximum load current rating of 110A and a maximum load voltage of 280 Vrms.
This SSR features zero cross switching which minimizes electrical noise during operation, making it ideal for industrial and automation control environments. It is suitable for operations within a wide temperature range from -40°C to +80°C, ensuring reliable performance in diverse conditions.
The relay includes screw terminals that ensure stable and secure connections when mounted on panels. It has integrated overvoltage and transient protection to safeguard connected circuits against voltage spikes, increasing system durability.

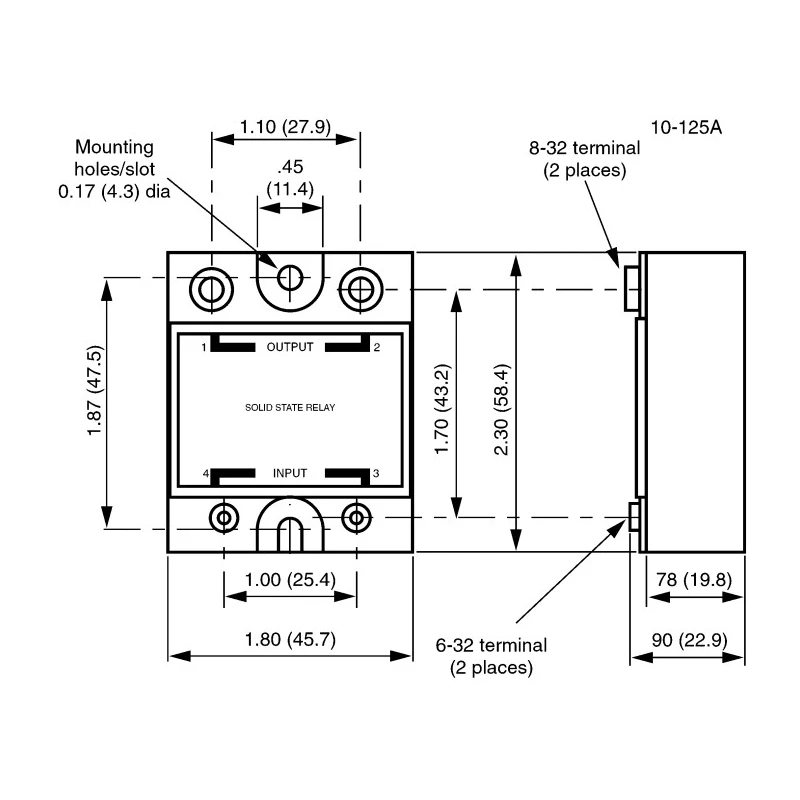

With a low off state leakage current rated at 10mA and a minimal input-to-output capacitance of 8pF, this SSR reduces unwanted current flow and signal interference. The compact device dimensions (Height: 22.9mm, Width: 22.6mm, Length: 58.4mm) make it suitable for installation in space-constrained panels.
The product complies with recognized standards such as CSA, RoHS, and UR endorsements, assuring compliance with safety and environmental regulations. Its microprocessor-compatible input allows seamless integration into control systems for advanced automation and signalling tasks.
Designed for zero cross switching to reduce electrical noise. Operates within a wide temperature range of -40°C to 80°C. Panel mount screw terminal design for secure connections. Built-in overvoltage protection enhances operational reliability.
Low off state leakage current of 10mA minimizes power loss. Compact size facilitates installation in tight control panels. Complies with CSA, RoHS, and UR standards. Microprocessor compatible input supports advanced control functionality.
This solid state relay is ideal for various industrial automation, manufacturing, electrical distribution, and HVAC control applications where reliable high-current AC switching is necessary.
Explore more Solid State Relays and related products in the Electronics & Electricals category at EnvMart for optimized industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current rating for this solid state relay is 110A.
This model operates within a temperature range of -40°C to +80°C.
It features zero cross switching, which minimizes electrical noise during operation.
The relay has compact dimensions of 22.9mm in height, 22.6mm in width, and 58.4mm in length.
The control voltage range for this relay is between 3V dc and 32V.
Yes, it includes built-in overvoltage protection to enhance reliability.
It is equipped with screw terminals for secure panel mounting.
The off state leakage current is rated at 10mA.
This relay complies with CSA, RoHS, and UR standards for safety and quality.
The input-to-output capacitance is minimal at 8pF.
This model is designed for panel mount installation.
It is suitable for various industrial automation, manufacturing, electrical distribution, and HVAC control applications.
