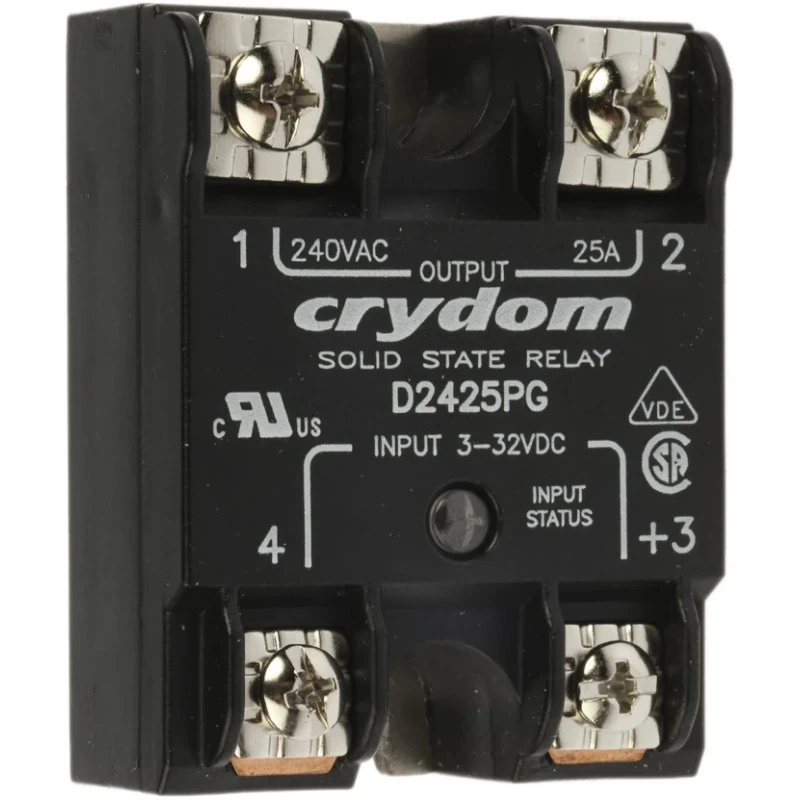

Crydom 1 Series Solid State Relay Panel Mount 25A Load 280 Vrms Maximum Load Voltage 32V Control D2425PG

The Crydom D2425PG is a high-quality 1 Series Solid State Relay designed for panel mount applications, capable of handling a continuous load current of up to 25 Amperes and a maximum load voltage of 280 Vrms. It operates with control voltages up to 32V DC, making it suitable for diverse industrial control tasks.

Engineered with zero-cross switching technology, this relay reduces electrical noise and enhances system reliability in heating, motion control, and automation applications. This SSR features a thermally conductive epoxy coating that efficiently dissipates heat, preventing thermal damage and extending operational lifespan.

Installation is straightforward via screw and saddle clamp terminals, ensuring secure and fast connections within control panels. The LED status indicator provides a clear visual confirmation of relay operation.

The solid-state relay includes internal overvoltage protection up to 600V, offering enhanced safety against voltage spikes and surges commonly encountered in industrial environments. It is optimized for reliable performance across a broad temperature range of -40°C to +80°C, suitable for harsh conditions.

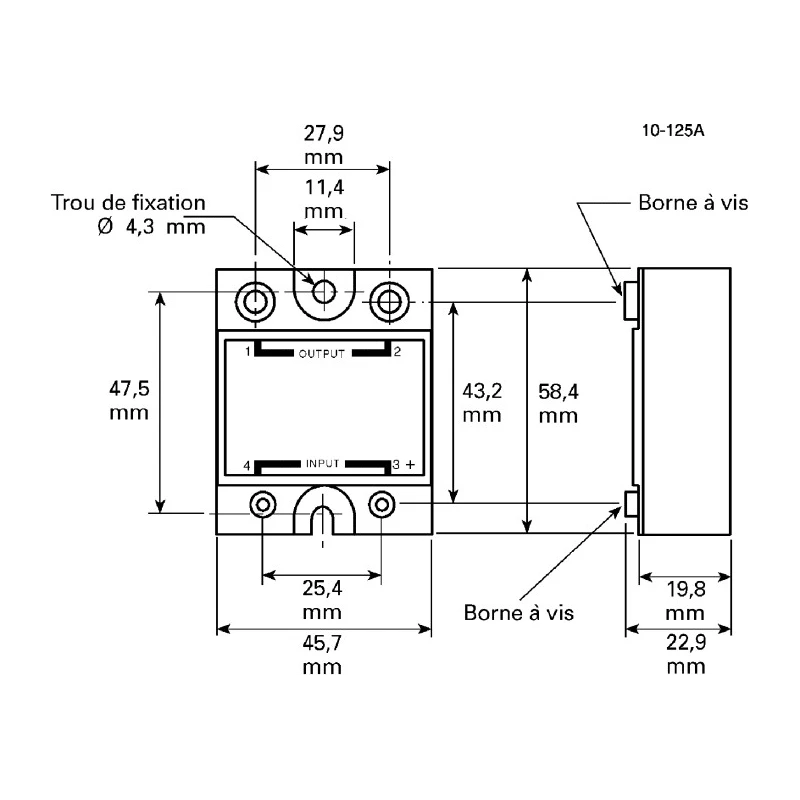

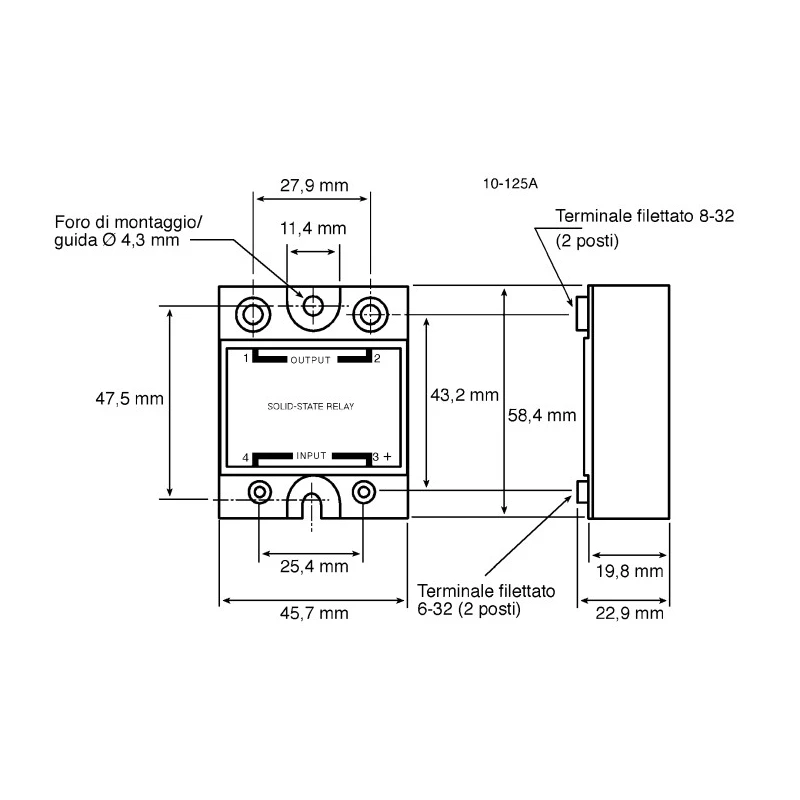

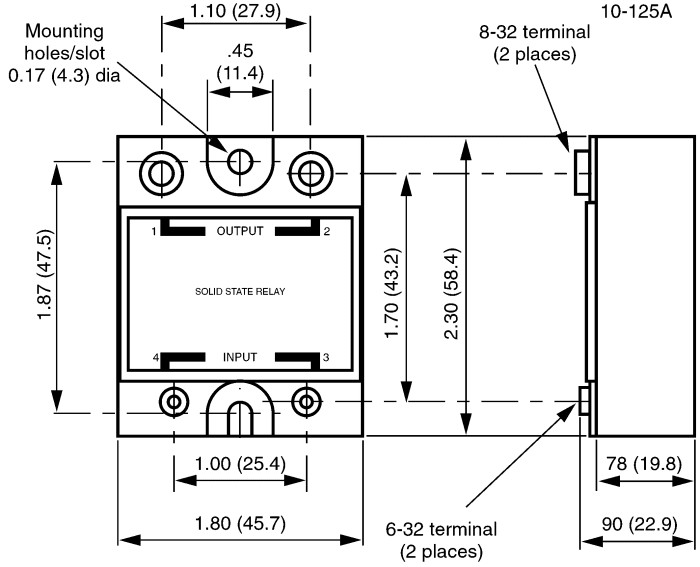

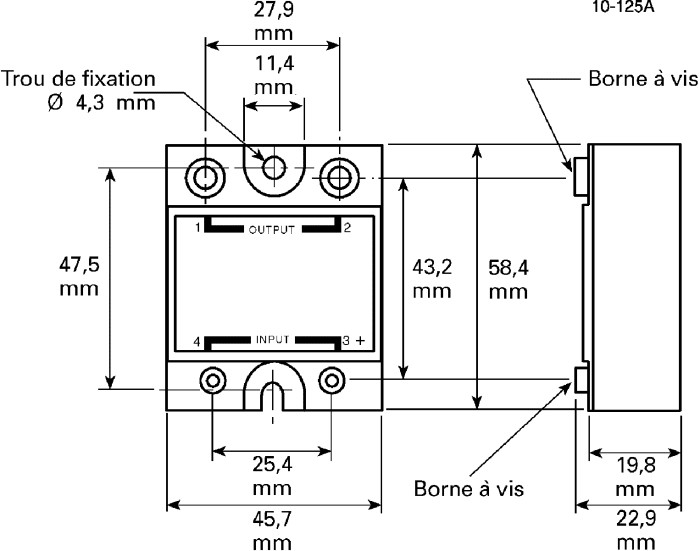

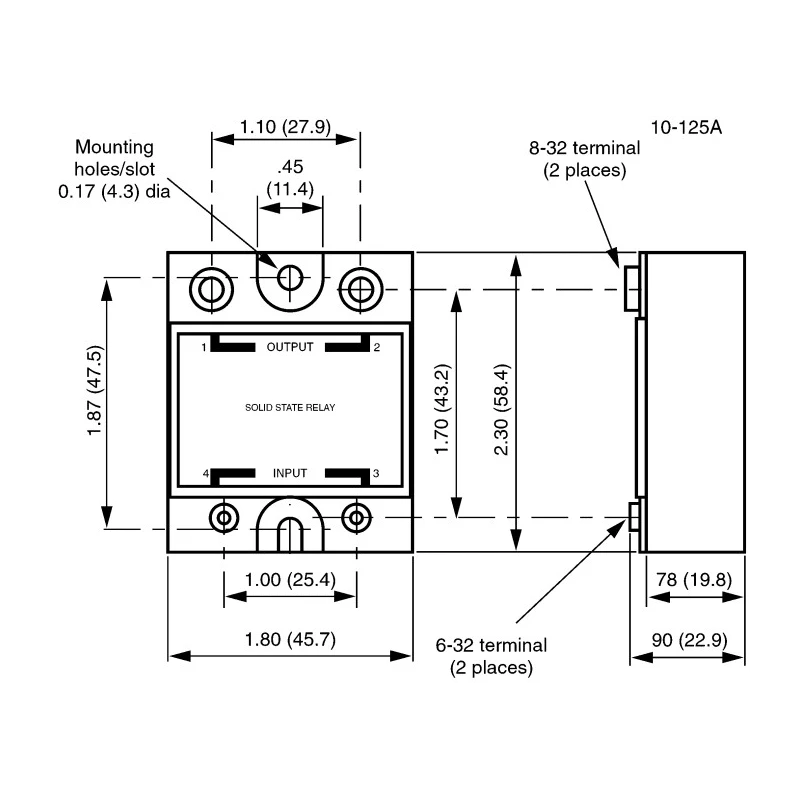

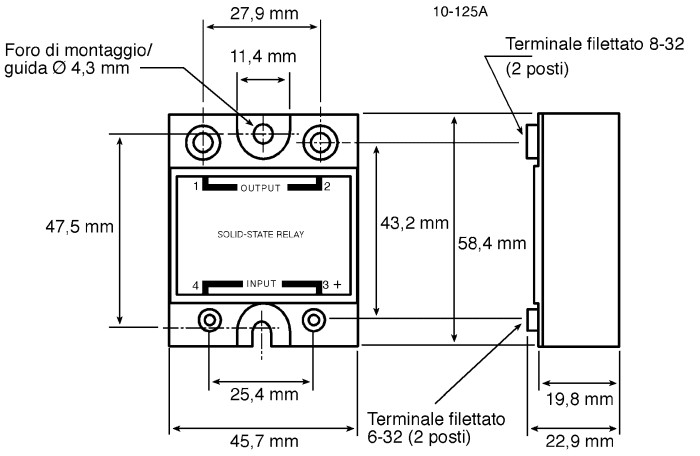

With compact dimensions of 58.4mm length, 22.9mm height, and 22.6mm width, it integrates seamlessly into existing panel layouts. The SCR (Silicon Controlled Rectifier) output type delivers stable switching for sensitive loads.

Certifications include UR recognition, RoHS compliance, and CSA approval, ensuring adherence to quality and environmental standards. Designed for panel mount use with screw terminals. Wide temperature range of -40°C to 80°C.

Zero cross switching for minimal noise. LED indicator for operational status feedback. Internal overvoltage protection up to 600V. Compact, efficient thermally conductive epoxy coating. SCR output type for reliable switching.

Complies with UR, RoHS, and CSA standards.

This solid state relay is ideal for industrial automation, electrical control panels, motion control systems, HVAC applications, and other scenarios demanding durable, maintenance-free load switching. Explore similar high-quality Crydom Solid State Relays and components in the Electronics & Electricals category at EnvMart for enhanced automation solutions.
