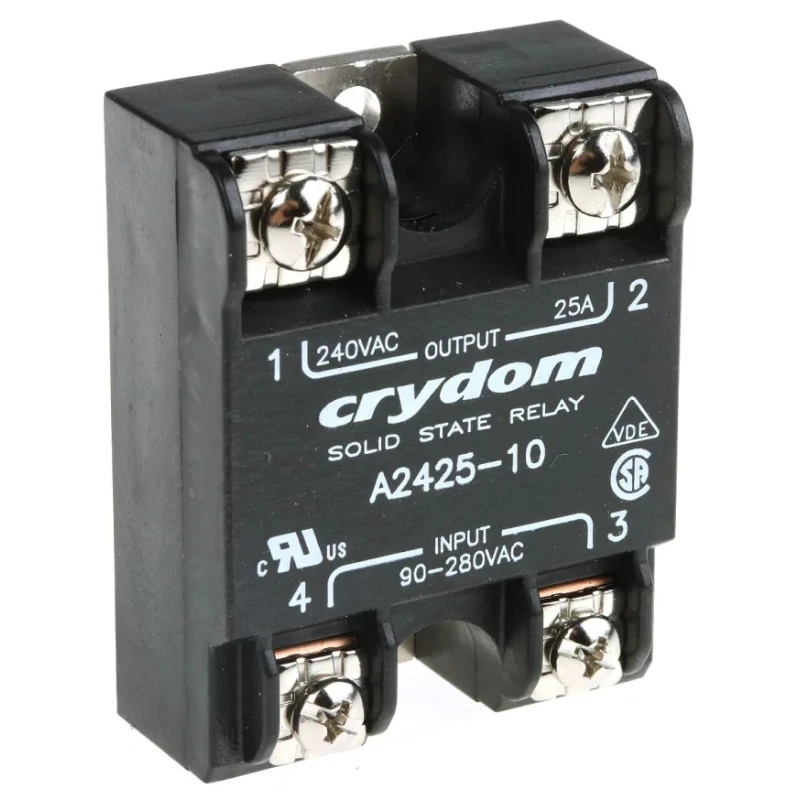

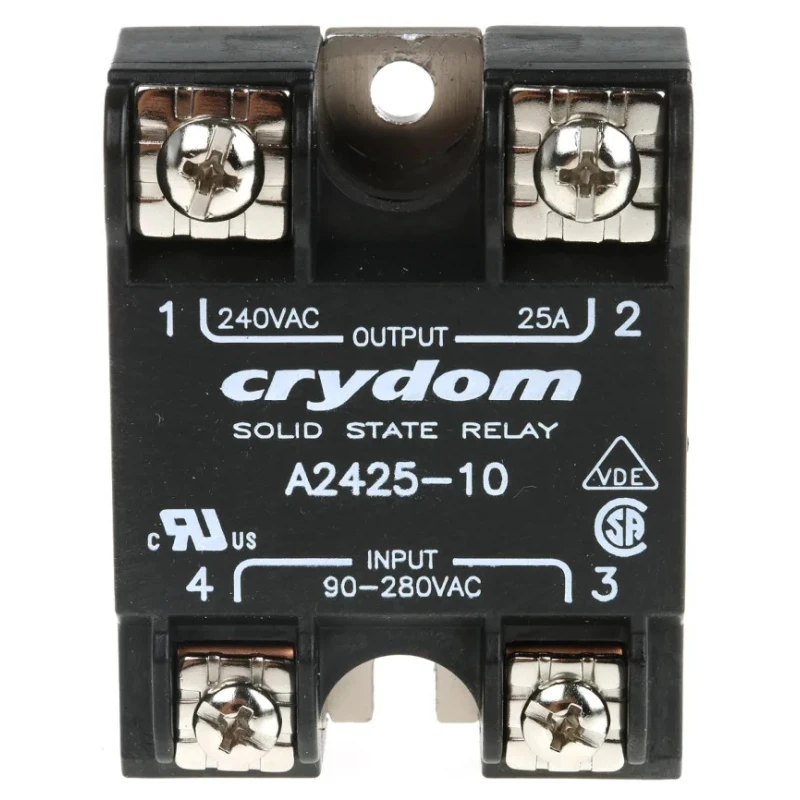

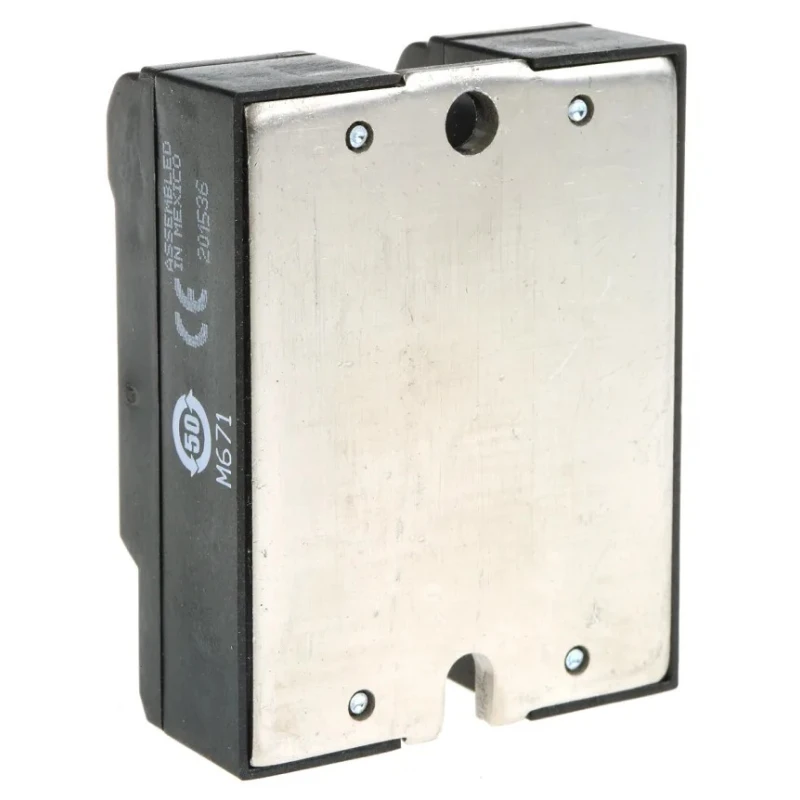

Crydom 1 240 VAC Series Solid State Relay 25A Load Panel Mount 280 Vrms Load 280V AC Control A2425-10

Crydom A2425-10 Solid State Relay is a high-performance electrical component designed for panel mounting applications in industrial and automation environments. It supports a maximum load current of 25A and can operate with a load voltage of up to 280 Vrms. The relay offers instantaneous switching functionality, ensuring rapid opening and closing of electrical circuits without mechanical wear, resulting in enhanced longevity and reliability.

Constructed with a direct bond copper substrate, this relay effectively dissipates heat to safeguard both the device and connected equipment from thermal damage during prolonged operation. Its insulating plastic body reduces electrical hazards, making it suitable for use in demanding and potentially hazardous settings.

The unit features secure screw terminal connections, facilitating strong and stable electrical contact to minimize disruption due to vibration or movement. It functions reliably over a wide temperature range from -40°C to 80°C, which makes it ideal for harsh industrial environments.

This Crydom relay adheres to recognized industry standards including CSA, RoHS, UL, and VDE, ensuring compliance and safety in manufacturing and operational settings. The compact size with dimensions of 58.4 mm in height, 45.7 mm length, and 22.6 mm width allows for efficient panel space utilization.

Its output is an SCR type with a single-pole single-throw (SPST) contact configuration, suitable for a variety of control and automation configurations requiring reliable switching performance.

Instantaneous switching for rapid circuit control. Durable construction with low leakage current. Efficient heat dissipation with copper substrate. Wide operating temperature ensures robust performance. Easy installation via panel mount and screw terminals.

Complies with CSA, RoHS, UL, and VDE standards. Compact design saves panel space. Insulating housing enhances electrical safety. Ideal for use in food production, packaging, and industrial automation. Reliable long-term switching with no mechanical wear.

This Crydom solid state relay is widely used in industrial automation, laboratory equipment, HVAC systems, manufacturing plants, and water treatment facilities where precise, rapid switching is critical. The panel mount design simplifies integration into control panels and electrical enclosures. For related products and further specifications, explore the Solid State Relay category on EnvMart to find compatible solutions tailored to your industry needs.
